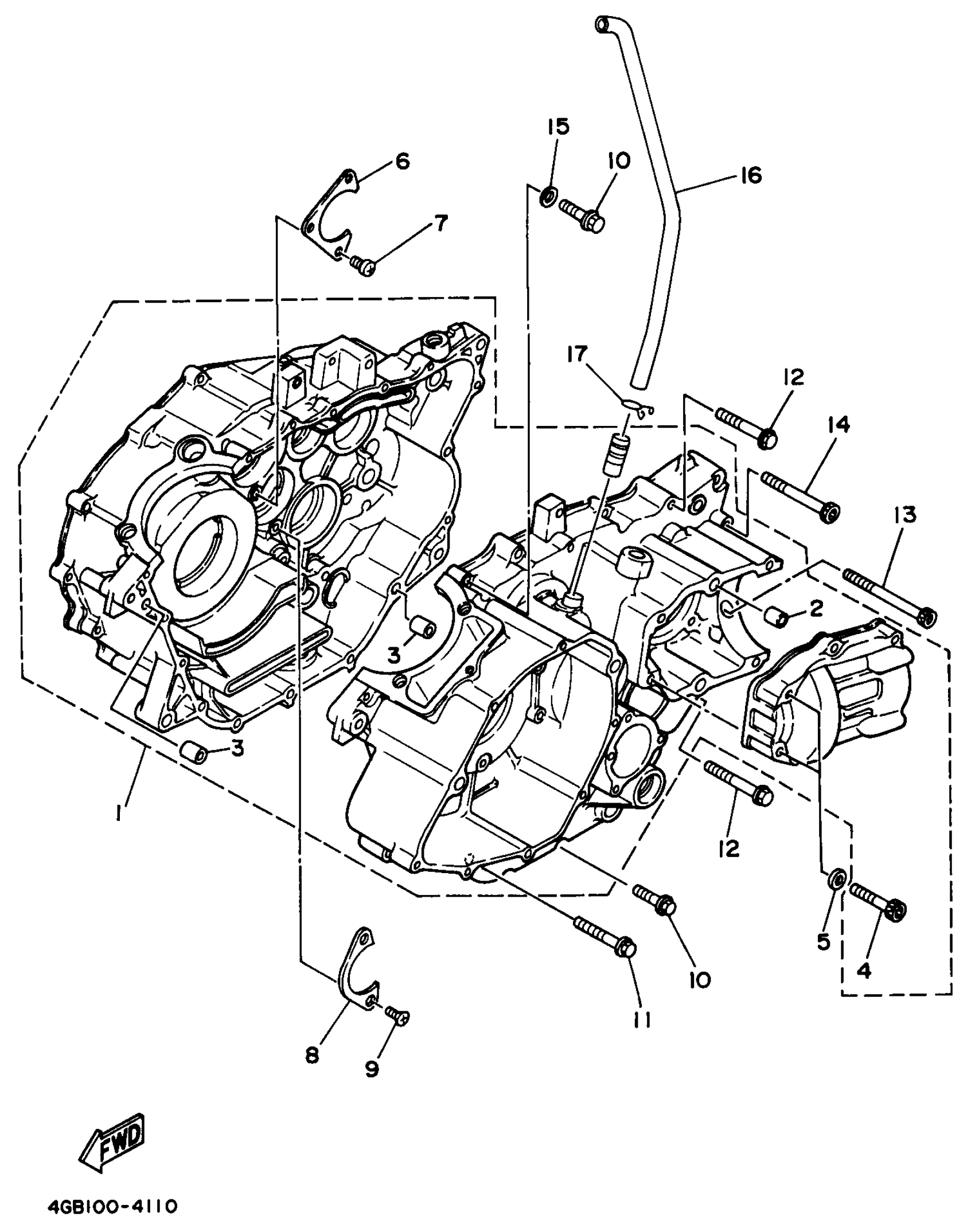

Yamaha YFM350UH_MNH (BIG BEAR 2WD) 4UH11 1996 CRANKCASE Diagram

CRANKCASE ASSEMBLY

1YW-15100-07-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

PIN, DOWEL

99530-12016-00

$4.89

BOLT, SOCKET

91314-06040-00

$8.49

GASKET 256113960000

90430-06014-00

Unavailable

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

SCREW, PAN

98517-06012-00

$3.78

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06050-00

$2.55

BOLT, SMALL FLANGE

95027-06060-00

$2.87

BOLT, SOCKET

91317-06090-00

$4.24

BOLT, SOCKET

91317-06070-00

$4.99

GASKET 256113960000

90430-06014-00

Unavailable

PIPE, BREATHER 1

2HR-11166-00-00

Unavailable

CLIP (371)

90467-14015-00

Unavailable
