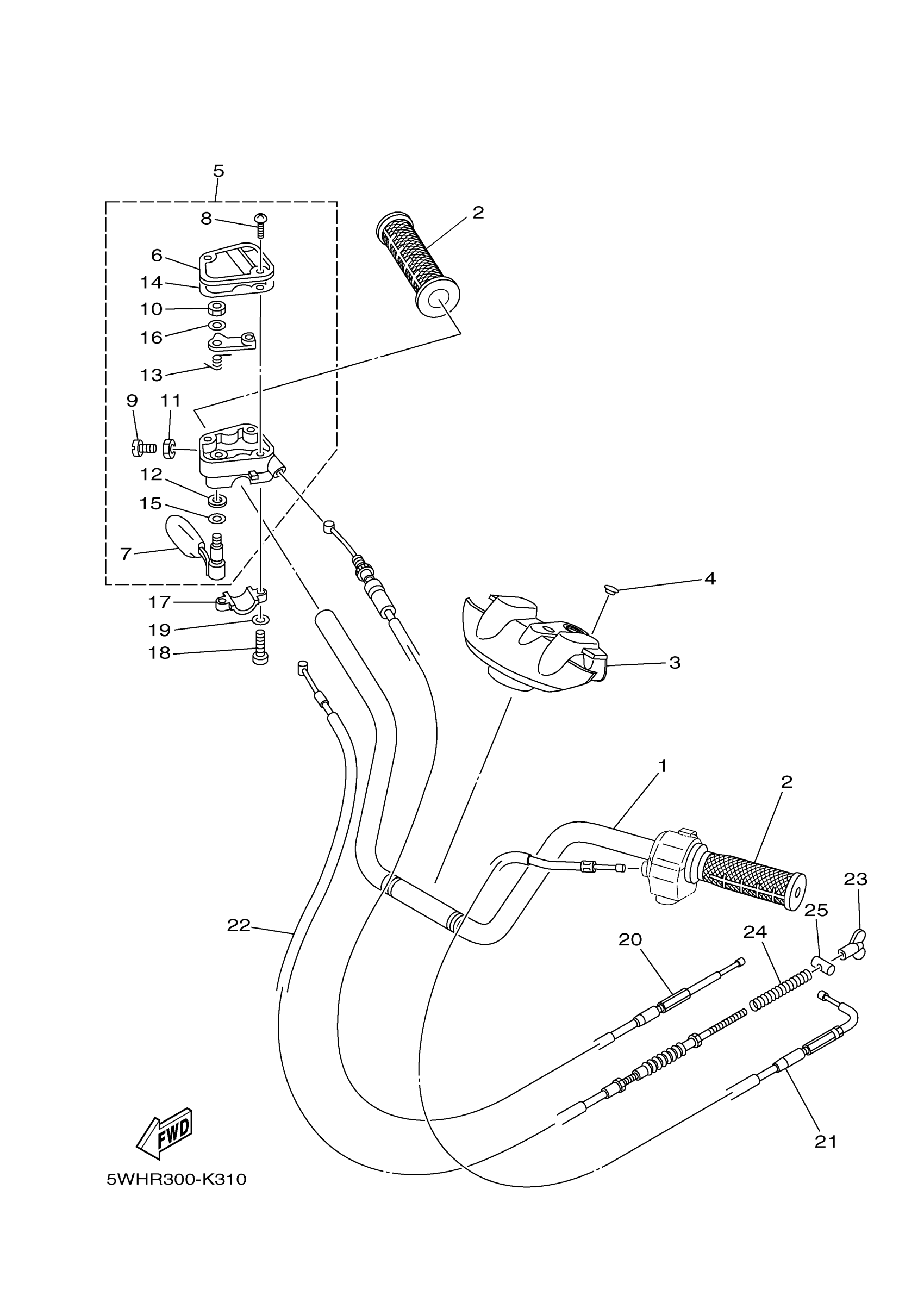

Yamaha YFM350TER (GRIZZLY 350 2WD) B1412 2014 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

$68.99

2

GRIP

5FU-F6241-10-00

$17.49

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$46.99

4

PLUG

90338-14827-00

Unavailable

5

THROTTLE LEVER ASSY

4KB-26250-12-00

$122.99

6

CAP, GEAR

4KB-2628F-10-00

$30.99

7

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

8

SCREW(3HE)

90149-04278-00

$2.39

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

NUT, U

95617-05100-00

$9.49

11

NUT, HEXAGON SMALL

95317-05700-00

$8.49

12

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

13

SPRING

1NV-26304-00-00

$11.99

14

GASKET

4KB-2628G-00-00

$13.49

15

WASHER

1NV-26129-00-00

$6.99

16

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

17

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

$4.25

19

WASHER, PLAIN (646)

92990-05600-00

Unavailable

20

CABLE, THROTTLE 1

5GH-26311-11-00

Unavailable

21

CABLE,STARTER 1

5VH-F6331-01-00

Unavailable

22

WIRE, BRAKE 1

1NS-26341-00-00

Unavailable

23

NUT, AJUSTING

20E-26343-00-00

Unavailable

24

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

25

PIN 1562723700

90249-12008-00

Unavailable
