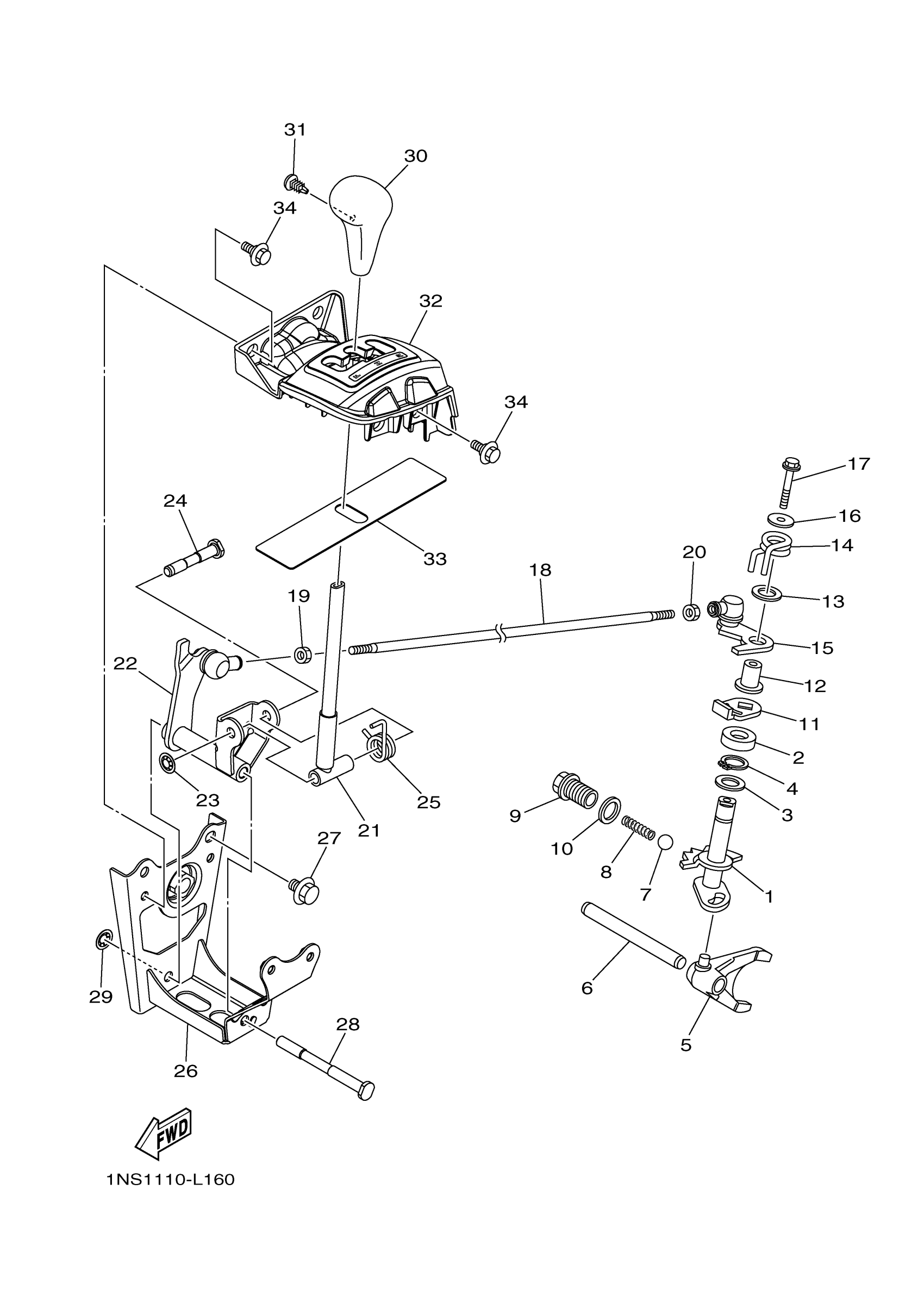

Yamaha YFM350TER (GRIZZLY 350 2WD) B1412 2014 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT COMP.

5UH-18103-00-00

Unavailable

2

OIL SEAL (3X3)

93102-15212-00

$9.49

3

WASHER (566)

90201-15701-00

$8.49

4

CIRCLIP

93440-15012-00

$8.49

5

FORK, SHIFT 1

5UH-18511-00-00

$75.99

6

BAR, SHIFT FORK GUID 2

2A6-18535-00-00

Unavailable

7

BALL

93503-08007-00

$4.15

8

SPRING, COMPRESSION (465)

90501-10353-00

$9.49

9

BOLT, FLANGE

90105-14003-00

$8.49

10

GASKET(59V)

90430-14194-00

$8.49

11

LEVER

4SH-18198-00-00

$22.99

12

COLLAR

90387-0613B-00

$9.49

13

WASHER, PLATE

90201-13013-00

$8.49

14

SPRING, TORSION(1YW)

90508-35764-00

$5.60

15

LEVER

1NS-18191-00-00

Unavailable

16

WASHER, PLATE

90201-06036-00

Unavailable

17

95812-06035

95812-06035-00

Unavailable

18

ROD, SHIFT

1NS-18115-00-00

Unavailable

19

NUT (2H9)

90170-06228-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

LEVER COMP. 1

1NS-E8190-00-00

Unavailable

22

ARM, SHIFT 2

1NS-E8169-00-00

Unavailable

23

NUT, SPRING

90183-080A1-00

Unavailable

24

SHAFT, SHIFT

3B4-18125-00-00

Unavailable

25

SPRING, RETURN

3B4-18196-01-00

Unavailable

26

SHIFTER BRKT. ASSY

1NS-E8380-00-00

Unavailable

27

BOLT, FLANGE

95817-08012-00

Unavailable

28

SHAFT, SHIFT 2

1NS-E8155-00-00

Unavailable

29

NUT, SPRING

90183-080A1-00

Unavailable

30

KNOB, SHIFT LEVER

28P-18174-00-00

Unavailable

31

RIVET(81E)

90269-05055-00

Unavailable

32

GUIDE, SHIFT

1NS-E8172-00-00

Unavailable

33

COVER, DUST

1NS-E8154-00-00

Unavailable

34

BOLT

90109-06172-00

Unavailable
