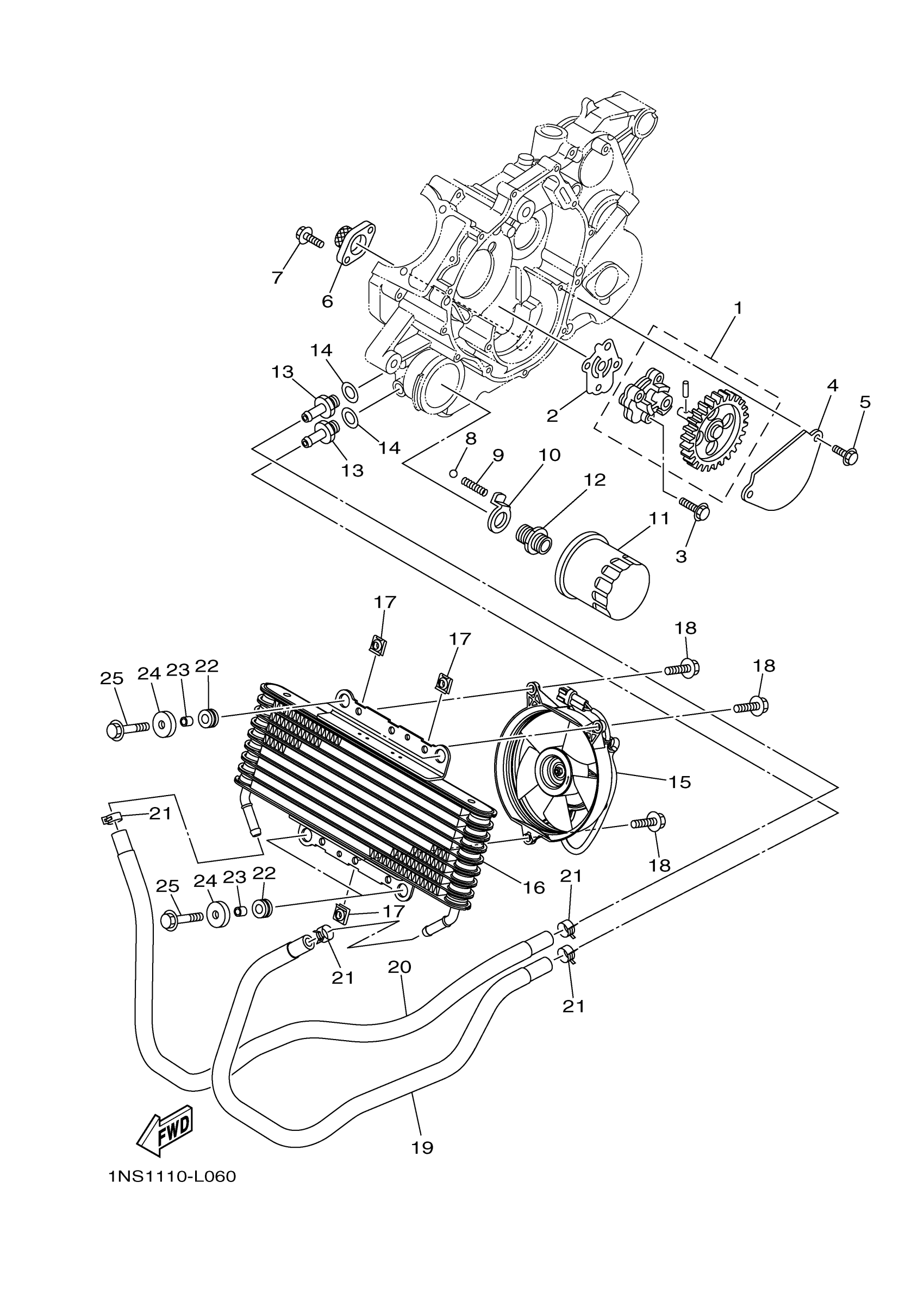

Yamaha YFM350TER (GRIZZLY 350 2WD) B1412 2014 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5UH-13300-00-00

$87.43

2

GASKET, PUMP COVER

5UH-13329-00-00

$5.55

3

BOLT, FLANGE

95022-06025-00

$1.37

4

COVER, PUMP GEAR

5UH-13327-00-00

$3.03

5

BOLT, FLANGE

95022-06012-00

$2.80

6

STRAINER, OIL

5UH-13411-00-00

Unavailable

7

BOLT, FLANGE

90105-05016-00

$4.32

8

BALL

93505-16006-00

$2.05

9

SPRING, COMPRESSION(52G)

90501-101A7-00

$5.47

10

PLATE

5UH-1319K-00-00

$1.35

11

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

12

BOLT, UNION

90401-20008-00

$17.91

13

JOINT

1NS-13132-00-00

Unavailable

14

GASKET 256131670000

90430-14043-00

$6.03

15

BLOWER ASSY

1NS-E2405-01-00

Unavailable

16

ELEMENT, OIL COOLE

1NS-E3480-00-00

Unavailable

17

CLIP

1NS-E3577-00-00

Unavailable

18

BOLT 1

1NS-E3573-00-00

Unavailable

19

HOSE,OIL 1

1NS-E3464-10-00

Unavailable

20

HOSE,OIL 2

1NS-E3465-10-00

Unavailable

21

CLIP

90467-150A0-00

$3.33

22

GROMMET(2GH)

90480-12475-00

Unavailable

23

COLLAR

90387-06113-00

Unavailable

24

WASHER

90209-06012-00

Unavailable

25

BOLT, FLANGE

95817-06020-00

Unavailable
