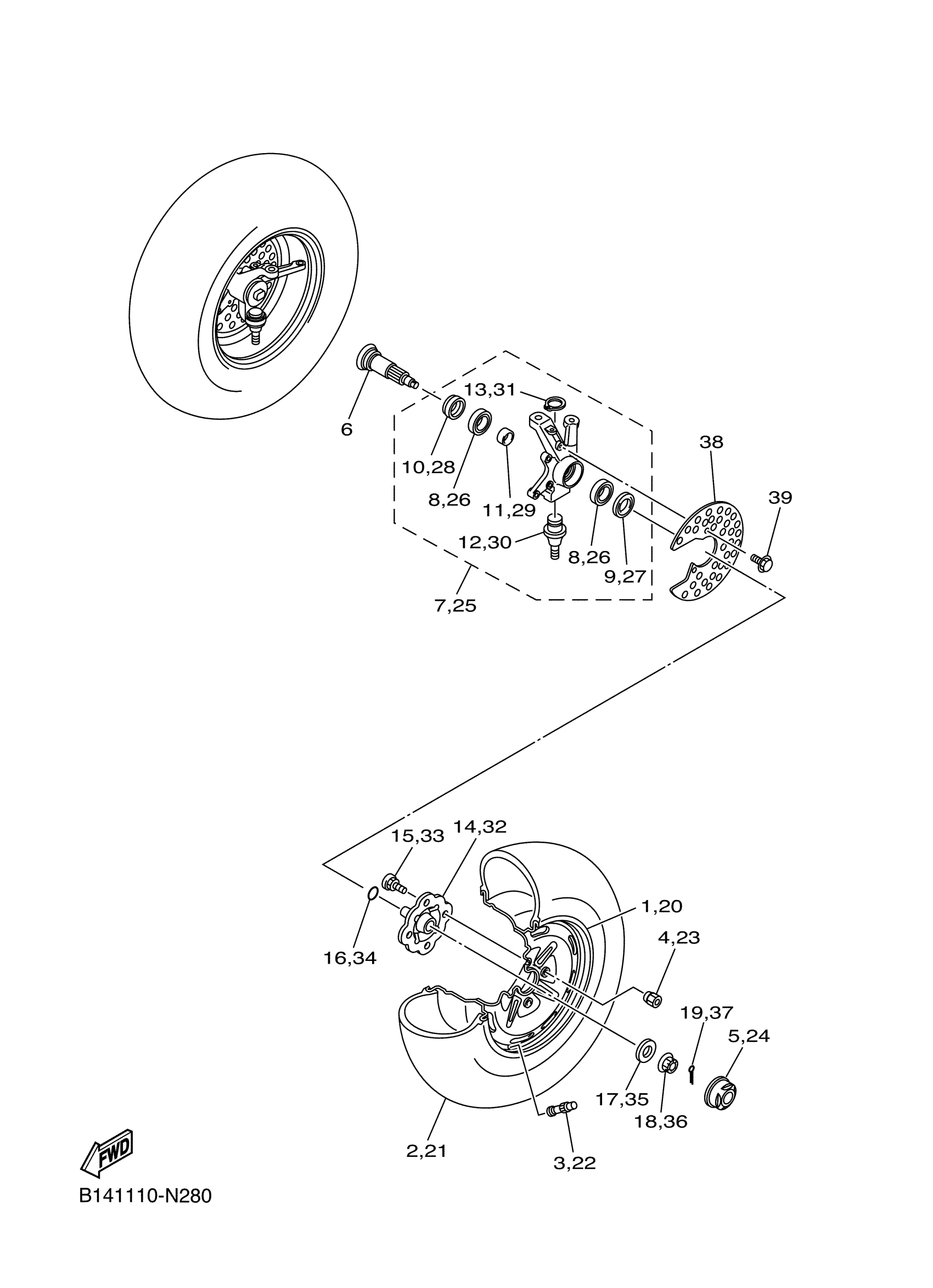

Yamaha YFM350TER (GRIZZLY 350 2WD) B1412 2014 FRONT WHEEL Diagram

#

Description
Price

1

FRONT RIM (BLACK) 12 X 6

1D9-F5180-10-00

Unavailable

2

AT25 X 8.00 -12 MU13

94108-12816-00

$195.94

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10022-00

$3.04

5

CAP, WHEEL

2P5-F512A-00-00

$4.28

6

AXLE, WHEEL

5HA-25181-00-00

Unavailable

7

STEERING KNUCKLE A, LH

1NS-F3501-00-00

$157.95

8

BEARING

93306-006Y2-00

$22.78

9

OIL SEAL

93106-38046-00

$13.70

10

OIL SEAL

93106-38047-00

$22.42

11

SPACER(2HR)

90560-30325-00

$10.60

12

BALL JOINT 1

37S-23549-01-00

$64.63

13

CIRCLIP

93410-32075-00

$6.51

14

HUB,FRONT

5ND-F5111-30-00

Unavailable

15

BOLT, SERRATION

90114-10014-00

$2.70

16

O-RING(47X)

93210-27666-00

Unavailable

17

WASHER, PLATE

90201-16023-00

Unavailable

18

NUT, CASTLE

90171-16002-00

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable

20

FRONT RIM (BLACK) 12 X 6

1D9-F5180-10-00

Unavailable

21

AT25 X 8.00 -12 MU13

94108-12816-00

$195.94

22

VALVE, RIM

93900-00812-00

Unavailable

23

NUT

90179-10022-00

$3.04

24

CAP, WHEEL

2P5-F512A-00-00

$4.28

25

STEERING KNUCKLE A, RH

1NS-F3502-00-00

Unavailable

26

BEARING

93306-006Y2-00

$22.78

27

OIL SEAL

93106-38046-00

$13.70

28

OIL SEAL

93106-38047-00

$22.42

29

SPACER(2HR)

90560-30325-00

$10.60

30

BALL JOINT 1

37S-23549-01-00

$64.63

31

CIRCLIP

93410-32075-00

$6.51

32

HUB,FRONT

5ND-F5111-30-00

Unavailable

33

BOLT, SERRATION

90114-10014-00

$2.70

34

O-RING(47X)

93210-27666-00

Unavailable

35

WASHER, PLATE

90201-16023-00

Unavailable

36

NUT, CASTLE

90171-16002-00

Unavailable

37

PIN, COTTER

91490-30030-00

Unavailable

38

RING, WHEEL 1 (LEF

5ND-F514A-00-00

Unavailable

39

BOLT, FLANGE

95817-06012-00

Unavailable
