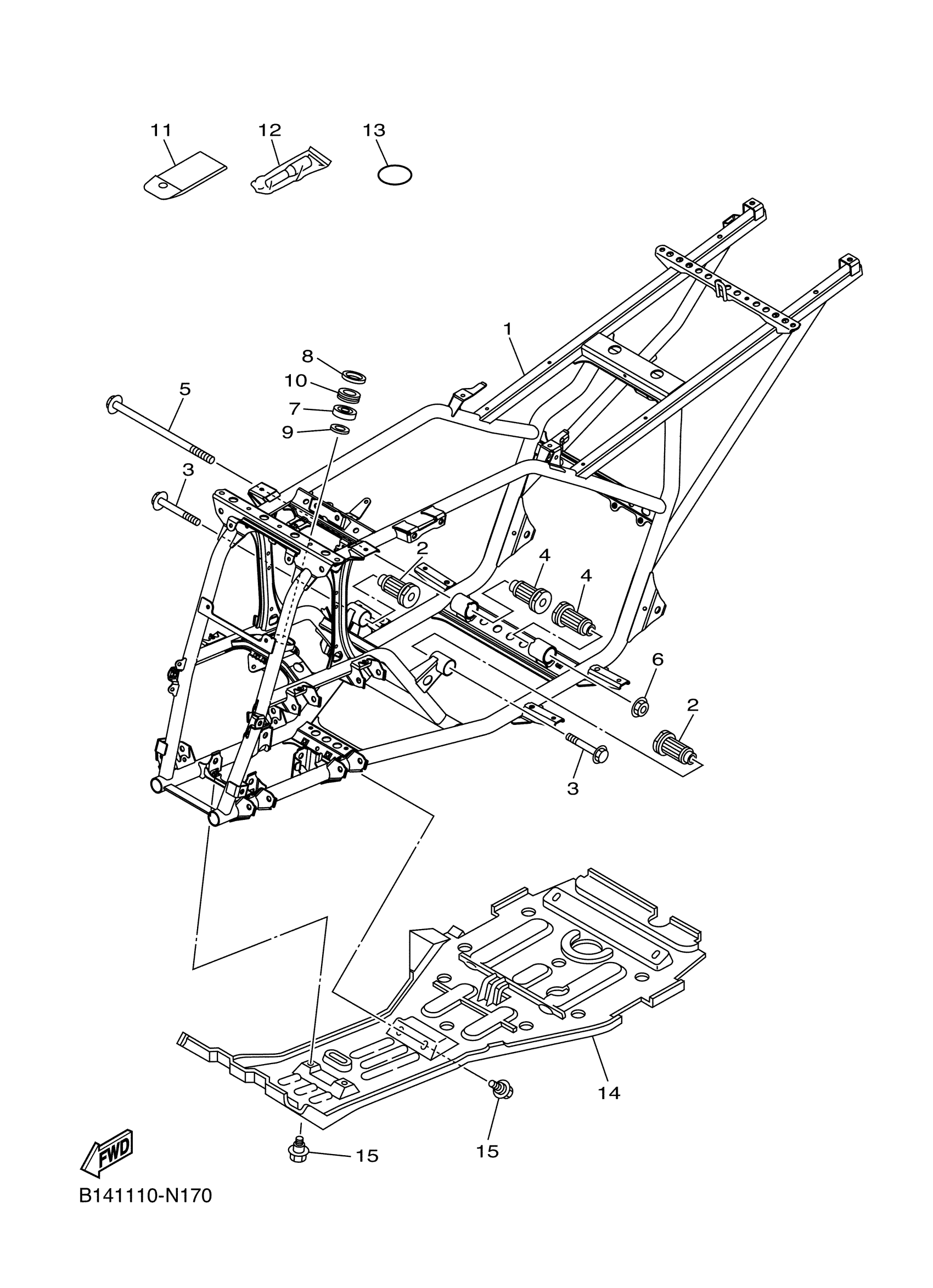

Yamaha YFM350TER (GRIZZLY 350 2WD) B1412 2014 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1NS-F1110-00-00

Unavailable

2

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

3

BOLT, FLANGE

95812-10080-00

$9.49

4

DAMPER, ENGINE MOU

5UH-E5336-00-00

Unavailable

5

BOLT, FLANGE

90105-10284-00

$10.49

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

BEARING

93306-203YN-00

$11.49

8

OIL SEAL (25X44X6-810)

93102-25081-00

$5.60

9

OIL SEAL (25X36X8-334)

93102-25099-00

$13.49

10

HOLDER, BEARING

2GU-23872-00-00

$25.99

11

TOOL KIT

1CT-F8100-00-00

$12.99

12

GAUGE, AIR

1NV-2811A-01-00

$57.99

13

O-RING (583 OIL CLEANER)

93210-64297-00

$8.49

14

GUARD, ENGINE 1

5ND-F147A-03-00

$82.99

15

BOLT

90109-06172-00

$7.49
