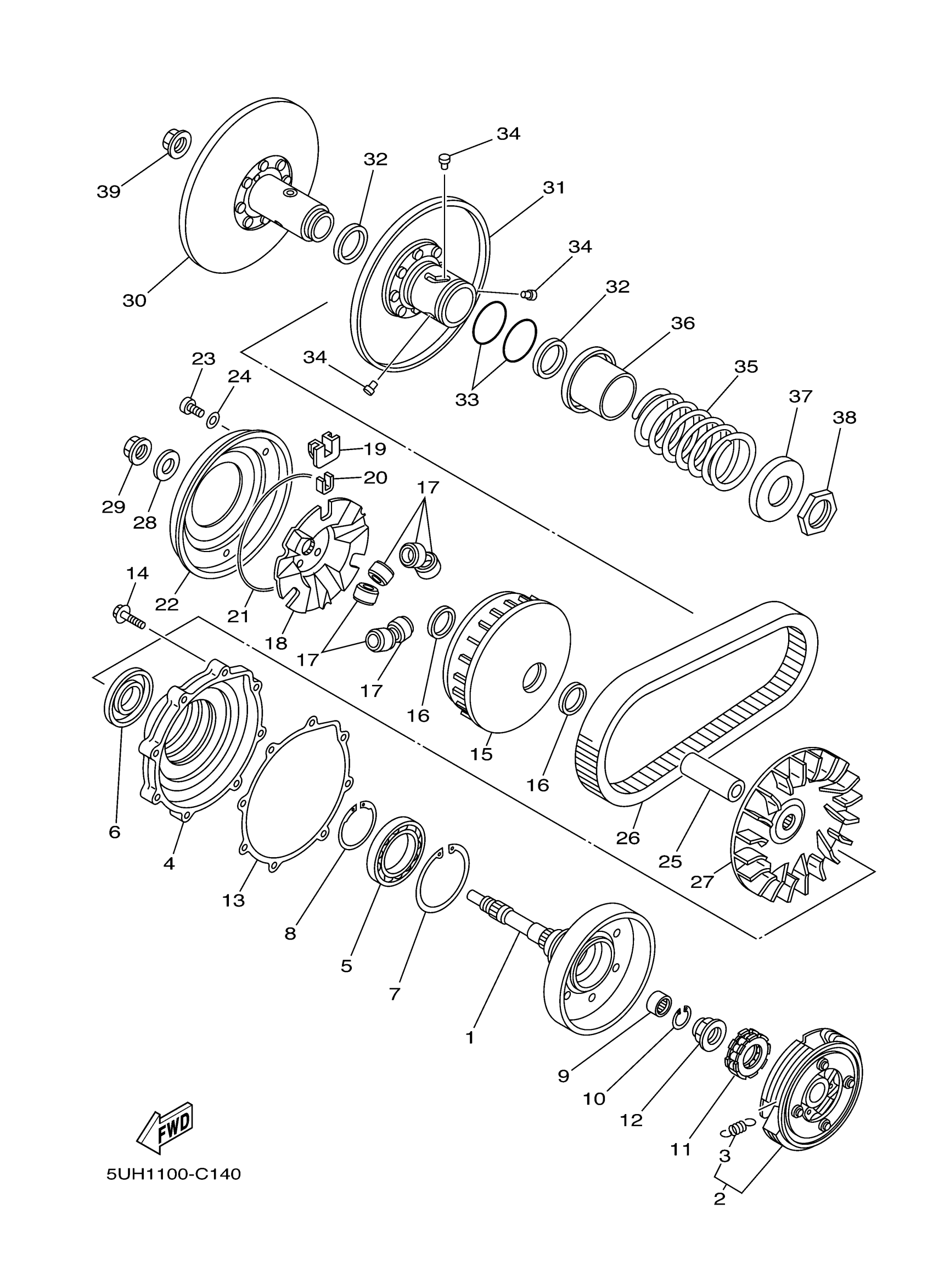

Yamaha YFM350TER (GRIZZLY 350 2WD) B1412 2014 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

5UH-16611-00-00

Unavailable

2

CLUTCH CARRIER ASSY

5UH-16620-00-00

$346.99

3

SPRING, CLUTCH WEIGHT 1

5UH-16626-00-00

$6.99

4

HOUSING, BEARING 1

5UH-15163-00-00

$49.99

5

BEARING

93316-01003-00

$104.99

6

OIL SEAL

93102-32483-00

$19.99

7

CIRCLIP (70R)

93420-80066-00

$14.99

8

CIRCLIP

93410-46079-00

$8.49

9

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

$36.99

10

CIRCLIP (3G2)

93450-24062-00

$3.81

11

BEARING, ONE WAY

5GH-16664-00-00

$149.99

12

NUT

90179-22005-00

$28.99

13

GASKET, CARBURETOR COVER 2

5UH-15463-00-00

Unavailable

14

BOLT, FLANGE

95022-06030-00

$3.72

15

PRIMARY SLIDING SHEAVE COMP.

5UH-17620-00-00

$215.99

16

OIL SEAL

93101-31167-00

Unavailable

17

WEIGHT

4WV-17632-00-00

Unavailable

18

CAM

5UH-17623-00-00

Unavailable

19

SLIDER

4WV-17653-00-00

Unavailable

20

SPACER 1

4WV-17654-01-00

Unavailable

21

O-RING

93211-52001-00

Unavailable

22

STOPPER

5UH-17639-00-00

Unavailable

23

SCREW, PAN HEAD

90157-04006-00

Unavailable

24

WASHER, PLATE(4HC)

90201-047R9-00

Unavailable

25

COLLAR

5UH-17645-00-00

Unavailable

26

V-BELT

5UH-17641-01-00

Unavailable

27

SHEAVE, PRIMARY FIXED

5UH-17611-00-00

Unavailable

28

WASHER, PLATE

90201-190T7-00

Unavailable

29

NUT

90179-16005-00

Unavailable

30

SECONDARY FIXED SHEAVE COMP.

5UH-17660-00-00

Unavailable

31

SECONDARY SLIDING SHEAVE

5UH-17670-00-00

Unavailable

32

OIL SEAL

93104-41119-00

Unavailable

33

O-RING (10L)

93210-44545-00

Unavailable

34

PIN, GUIDE

4CW-17664-00-00

Unavailable

35

SPRING, COMPRESSION

90501-580A0-00

Unavailable

36

SEAT, SECONDARY SPRING

5UH-17684-00-00

Unavailable

37

SEAT,SPRING

5UH-17644-00-00

Unavailable

38

NUT (5G3)

90170-36279-00

Unavailable

39

NUT

90179-16005-00

Unavailable
