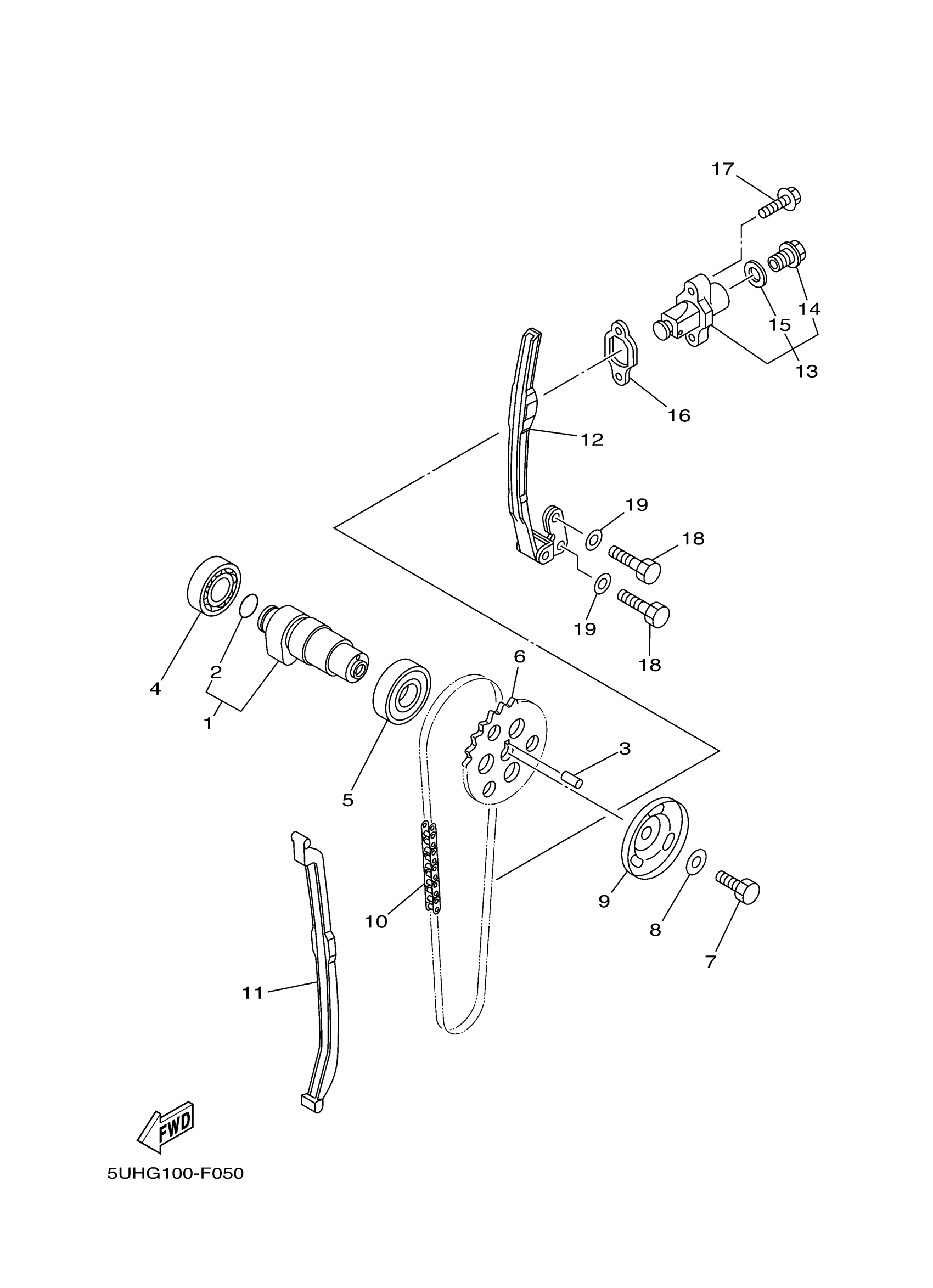

Yamaha YFM350TER (GRIZZLY 350 2WD) B1412 2014 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5UH-12170-10-00

Unavailable

2

. O-RING

93210-17003-00

Unavailable

3

PIN,DOWEL (603)

93604-10011-00

$8.49

4

BEARING(3BN)

93306-00438-00

$37.99

5

BEARING(1FF)

93306-00519-00

$36.99

6

SPROCKET, CAM CHAIN

5UH-12176-00-00

Unavailable

7

BOLT

90101-10016-00

$4.14

8

WASHER, PLATE (3L6)

90201-10774-00

$9.49

9

PLATE, BREATHER 2

4KB-11145-00-00

$11.99

10

CHAIN

94591-87110-00

$21.99

11

GUIDE STOPPER 1

5UH-12231-01-00

Unavailable

12

GUIDE, STOPPER 2

5UH-12241-01-00

$163.99

13

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

14

PLUG

31G-12222-00-00

$24.99

15

GASKET, TENSIONER

31G-12214-00-00

$14.49

16

GASKET, TENSIONER CASE

3GD-12213-00-00

Unavailable

17

BOLT, FLANGE

95022-06025-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable
