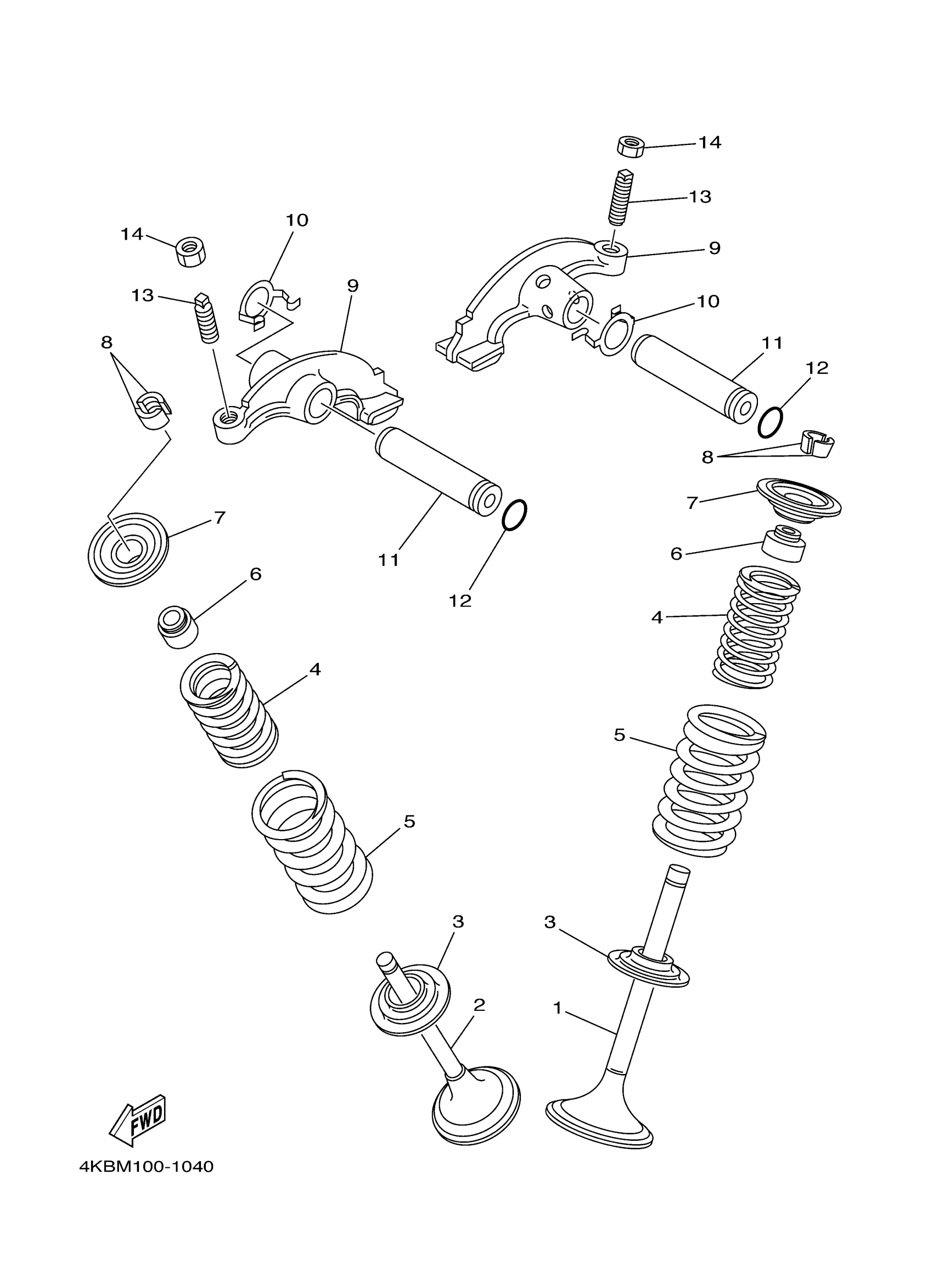

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

1UY-12111-01-00

$69.69

2

VALVE, EXHAUST

1UY-12121-01-00

$81.57

3

SEAT, VALVE SPRING

3Y1-12116-00-00

$14.25

4

SPRING, VALVE INNER

1UY-12113-01-00

$17.11

5

SPRING, VALVE OUTER

1UY-12114-01-00

$21.42

6

SEAL, VALVE STEM 2

M01-12129-00-00

$12.17

7

RETAINER, VALVE SPRING

3Y1-12117-01-00

$15.04

8

LOCK, VALVE SPRING

1J7-12118-00-00

$6.43

9

ARM, VALVE ROCKER

3GD-12151-11-00

$71.27

10

WASHER, WAVE

90206-12001-00

$4.08

11

SHAFT, ROCKER 2

4SH-12156-00-00

$45.65

12

O-RING (1J7)

93210-09350-00

$5.82

13

SCREW, VALVE ADJUSTING

31G-12159-02-00

$8.54

14

NUT, LOCK

31G-12158-00-00

$5.75
