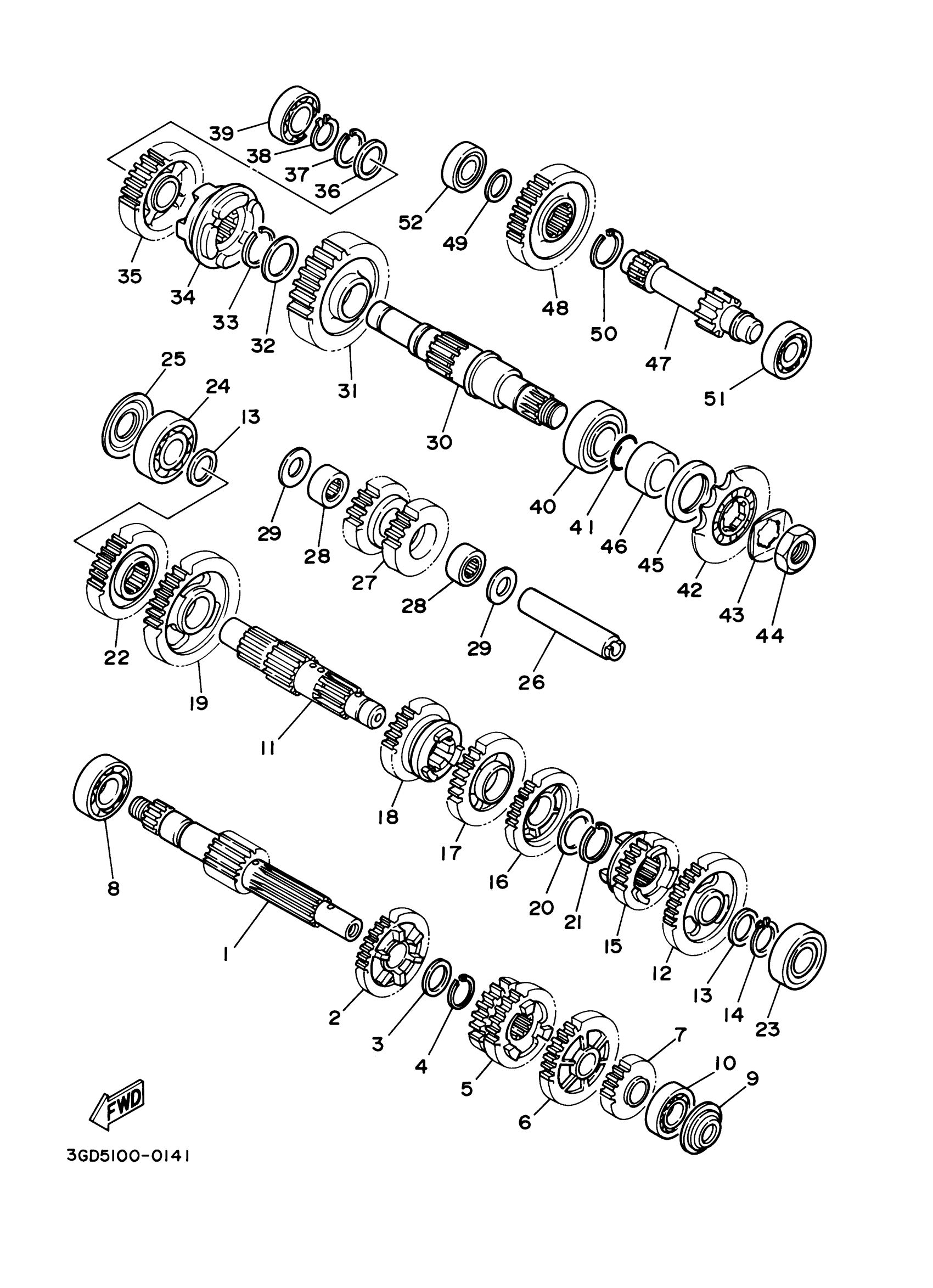

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSY

1UY-17401-01-00

$160.97

2

GEAR, 5TH PINION

1UY-17151-00-00

$45.28

3

WASHER (5H0)

90209-18208-00

$6.74

4

CIRCLIP (537)

93410-22039-00

$6.17

5

GEAR, 3RD PINION

1UY-17131-00-00

$77.08

6

GEAR, 6TH PINION

1UY-17161-01-00

$89.88

7

GEAR, 2ND PINION

1UY-17121-00-00

$61.89

8

BEARING (30X)

93306-20447-00

$33.97

9

OIL SEAL(59V)

93104-17094-00

$10.23

10

BEARING (7X9)

93306-20327-00

$24.79

11

AXLE, DRIVE

1UY-17421-02-00

$112.66

12

GEAR, 2ND WHEEL

5YT-17221-00-00

Unavailable

13

WASHER, PLATE (5N0)

90201-203E7-00

$7.22

14

CIRCLIP (525)

93410-20038-00

$2.62

15

GEAR, 6TH WHEEL

5YT-17261-00-00

$86.94

16

GEAR, 4TH WHEEL

1UY-17241-00-00

$90.68

17

GEAR, 3RD WHEEL

1UY-17231-01-00

$128.71

18

GEAR, 5TH WHEEL

1UY-17251-00-00

$110.62

19

GEAR, 1ST WHEEL

1UY-17211-00-00

$75.97

20

WASHER, PLATE (5F7)

90201-256E6-00

$4.35

21

CIRCLIP (4L0)

93440-25084-00

$3.96

22

GEAR, HIGH PINION

1UY-17123-00-00

Unavailable

23

BEARING(1YW)

93306-20461-00

$33.41

24

BEARING

93306-30443-00

$56.87

25

OIL SEAL (4X7)

93104-20068-00

$12.18

26

AXLE, IDLE

1UY-17432-01-00

$28.92

27

GEAR, HIGH WHEEL

1UY-17223-02-00

$168.29

28

BEARING, CYLINDRICAL(37F)

93311-51554-00

$46.72

29

WASHER, PLATE(3GD)

90201-150U6-00

$7.95

30

SHAFT

1UY-17523-00-00

$138.88

31

GEAR, REVERSE WHEEL 2

1UY-17253-00-00

$80.08

32

WASHER, GEAR HOLD 1

4A0-17116-00-10

$15.52

33

CIRCLIP (2H7)

93440-28062-00

$6.68

34

CLUTCH, DOG

1UY-17285-00-00

$62.02

35

GEAR, MIDDLE DRIVE

1UY-17582-00-00

$65.68

36

WASHER, PLATE (3Y1)

90201-22793-00

$5.75

37

CIRCLIP (537)

93410-22039-00

$6.17

38

CIRCLIP (525)

93410-20038-00

$2.62

39

BEARING (34L)

93306-00431-00

$36.27

40

BEARING (3Y1)

93306-20541-00

$33.15

41

O-RING

93210-22298-00

$6.57

42

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

$18.29

43

WASHER, LOCK (23X)

90215-21239-00

$7.56

44

NUT (2K7)

90179-20255-00

$9.40

45

OIL SEAL(1UY)

93102-35393-00

$17.78

46

COLLAR

90387-257N4-00

$20.52

47

AXLE, COUNTER

1UY-17431-00-00

$112.77

48

GEAR, REVERSE WHEEL1

1UY-17243-00-00

$45.38

49

WASHER, PLATE (30X)

90201-177G4-00

$6.78

50

CIRCLIP (4L0)

93440-25084-00

$3.96

51

BEARING (7X9)

93306-20327-00

$24.79

52

BEARING(2JN)

93306-00315-00

$27.16
