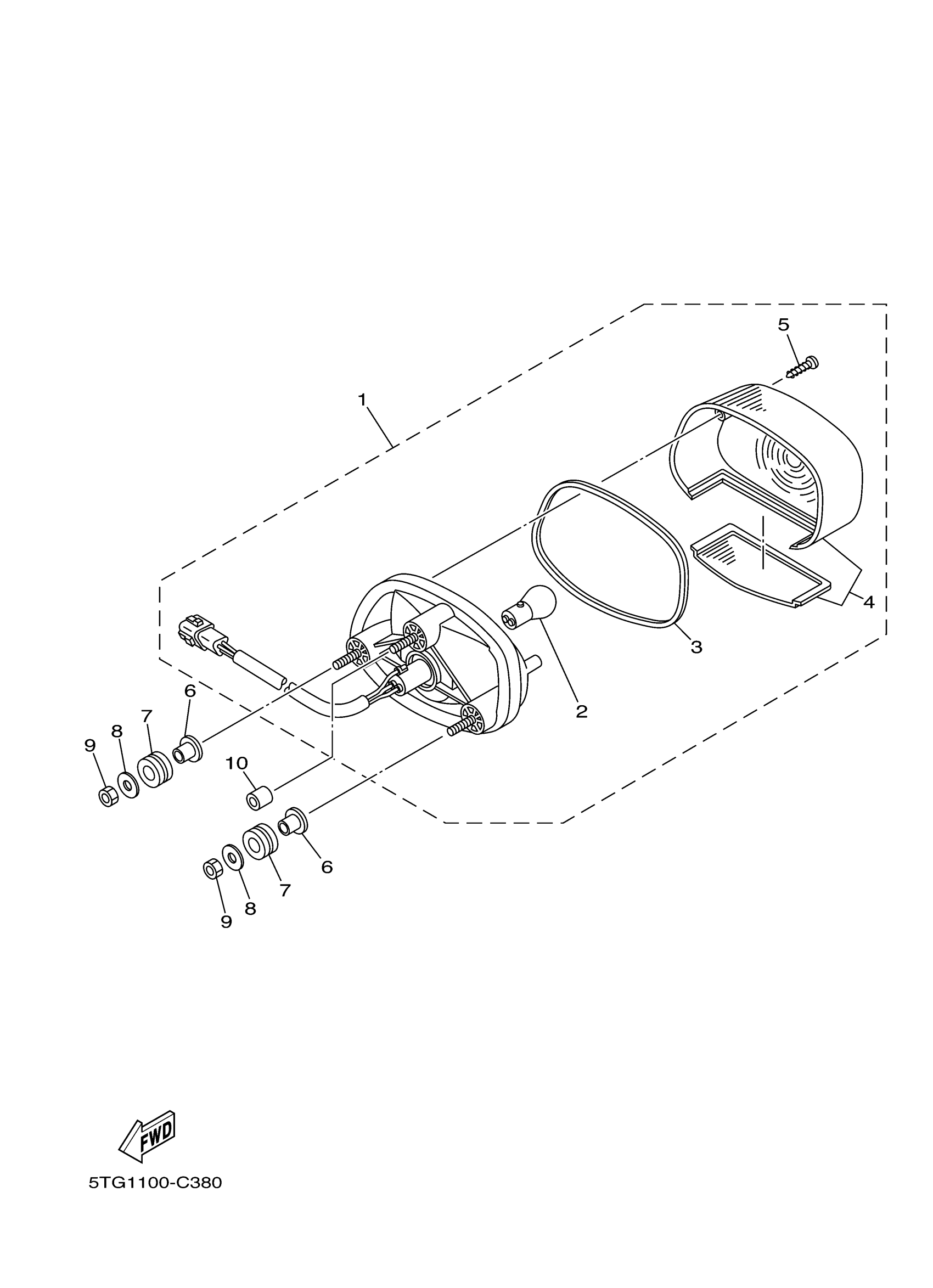

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5LP-84700-00-00

$118.35

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$10.02

3

GASKET, TAIL LENS

4TX-84723-00-00

$4.48

4

LENS, TAILLIGHT

4TR-84733-00-00

$19.79

5

SCREW, PAN TAP.2

97707-40520-00

$7.14

6

COLLAR

90387-06158-00

$6.17

7

GROMET (3X3)

90480-14229-00

$6.17

8

WASHER, PLATE

90201-06557-00

$2.75

9

NUT(6TA)

95317-06600-00

$2.69

10

HOSE (L110)

90445-09068-00

$5.46
