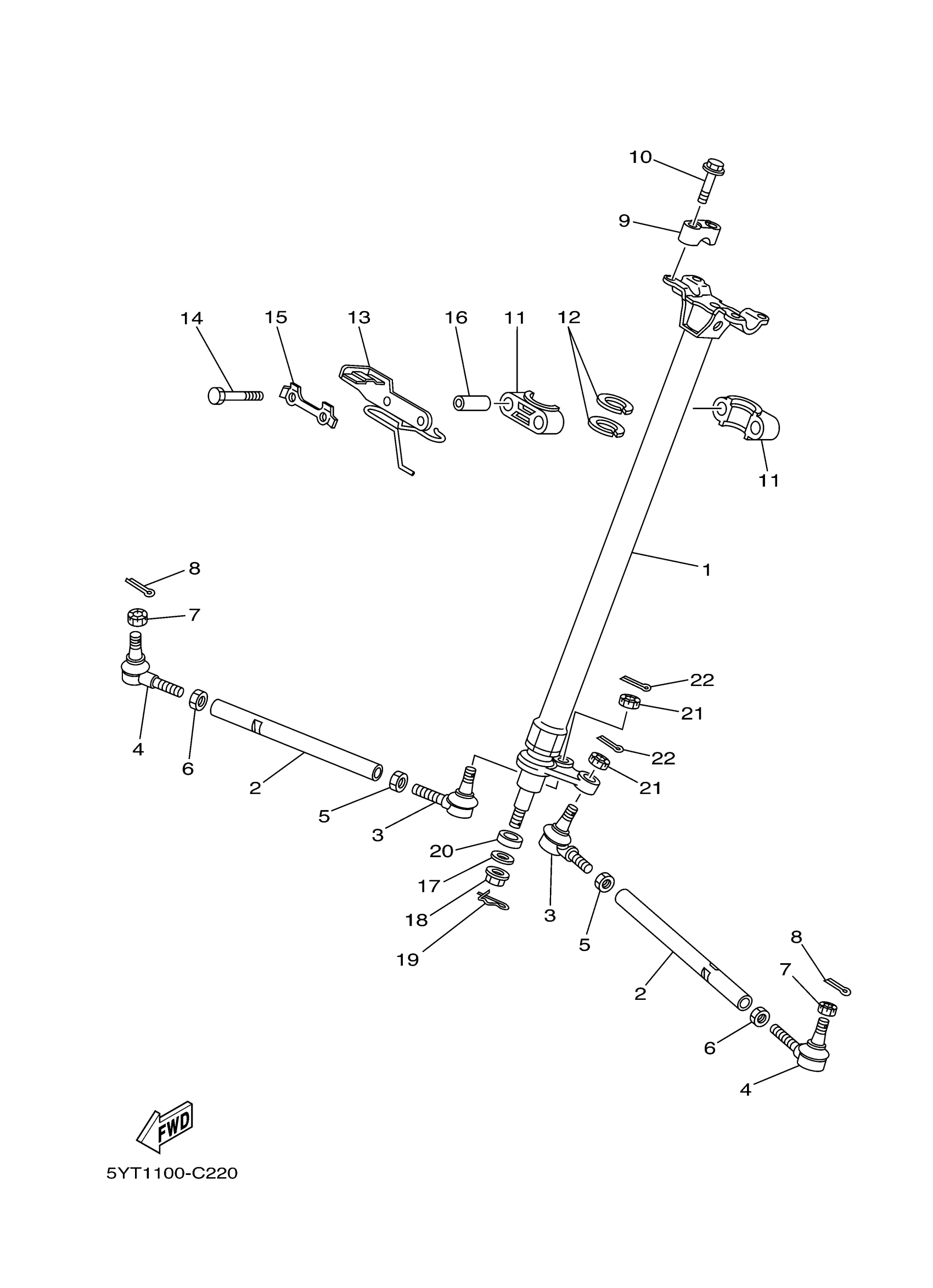

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5YT-23813-20-00

$256.91

2

ROD, TIE

3GD-23831-00-00

$22.35

3

JOINT, UNIVERSAL 1

1UY-23841-01-00

$66.52

4

JOINT, UNIVERSAL 2

1UY-23845-01-00

$66.52

5

NUT (3WP1)

95317-10700-00

$6.17

6

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

7

NUT, CASTLE

90171-10001-00

$2.85

8

PIN, COTTER

91490-20025-00

$1.31

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

10

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

11

PLANE BEARING, STEERING

1UY-23812-00-00

$21.15

12

OIL SEAL(1UY)

93112-31011-00

$7.52

13

BRACKET, STEERING LOWER

5YT-23868-00-00

$14.43

14

BOLT, HEXAGON

97017-08060-00

$7.72

15

WASHER, LOCK 1

1UY-23894-01-00

$6.86

16

COLLAR(85G)

90387-106T4-00

$11.29

17

WASHER, PLATE (3L6)

90201-10774-00

$6.25

18

NUT, SELF-LOCKING (8U7)

90185-10115-00

$6.82

19

CLIP(3YF)

90468-16191-00

$6.17

20

COLLAR(2GU)

90387-176R6-00

$10.48

21

NUT, CASTLE

90171-10001-00

$2.85

22

PIN, COTTER

91490-20025-00

$1.31
