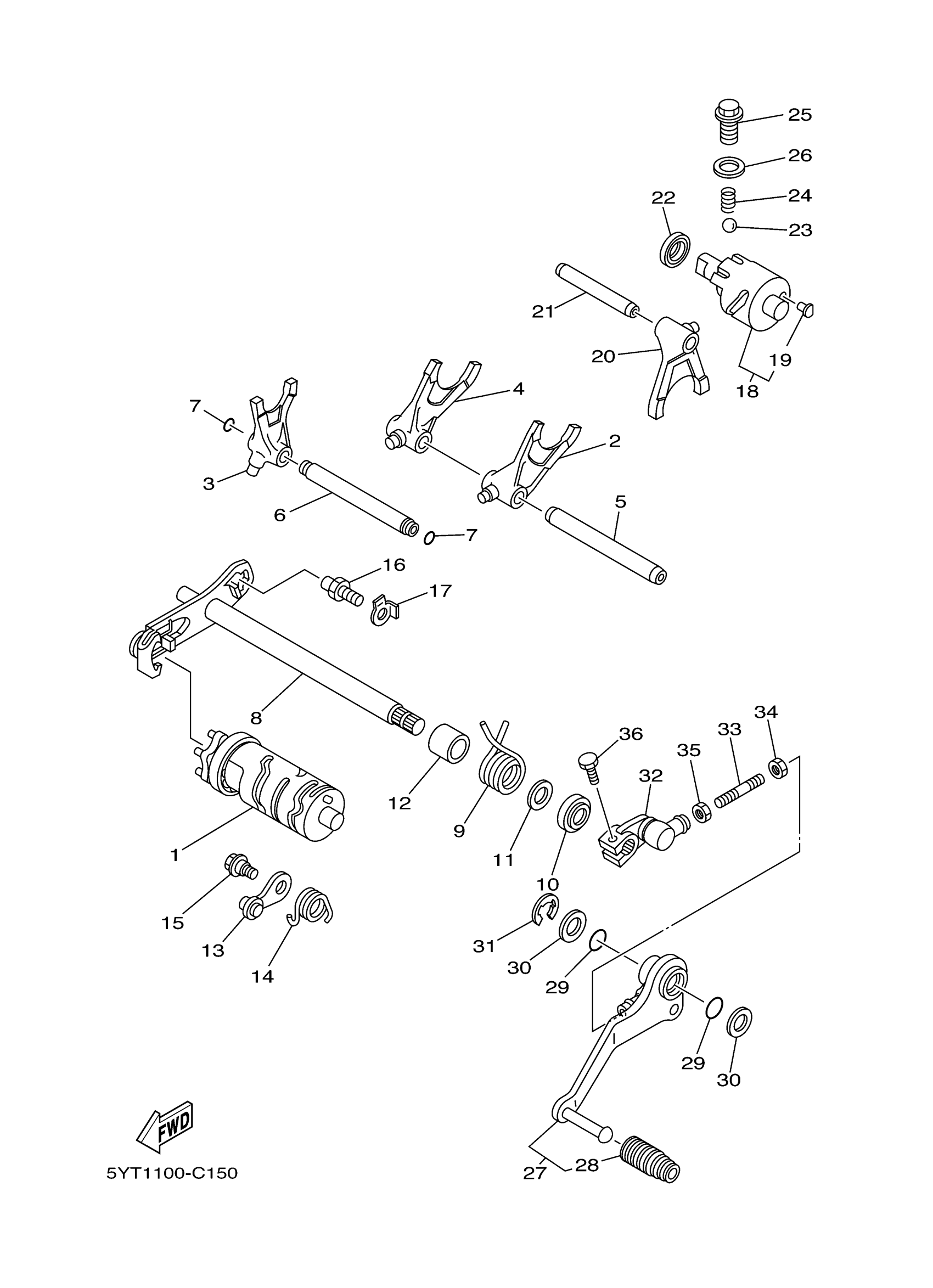

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5YT-18540-00-00

Unavailable

2

FORK, SHIFT 1

1YW-18511-00-00

$69.95

3

FORK, SHIFT 2

4GB-18512-00-00

$97.57

4

FORK, SHIFT 3

1UY-18513-00-00

$39.80

5

BAR, SHIFT FORK GUIDE 2

4TR-18535-00-00

$23.29

6

BAR, SHIFT FORK GUIDE 1

4GB-18531-00-00

Unavailable

7

O-RING (21V)

93210-07590-00

$5.69

8

SHIFT SHAFT ASSY

1UY-18101-02-00

Unavailable

9

SPRING, TORSION(1UY)

90508-32711-00

$9.37

10

OIL SEAL (3Y1)

93102-14209-00

$9.77

11

WASHER, PLATE(52G)

90201-144J2-00

$6.46

12

SPACER(1UY)

90560-14284-00

$9.60

13

STOPPER LEVER ASSY

1UY-18140-00-00

$15.55

14

SPRING, TORSION(1UY)

90508-25712-00

$6.31

15

BOLT

90109-06190-00

$3.49

16

STOPPER, SCREW

5VK-18127-00-00

$10.89

17

WASHER, LOCK(1UY)

90215-08260-00

$6.45

18

SHIFTER ASSY

3GD-18420-00-00

Unavailable

19

POINT, NEUTRAL

3GH-18542-00-00

$22.17

20

FORK, SHIFT 1

1UY-18311-00-00

$37.55

21

BAR, SHIFT FORK GUIDE 1

2A6-18531-00-00

$24.58

22

OIL SEAL (3X3)

93102-15212-00

$7.34

23

BALL

93503-08007-00

$2.35

24

SPRING, COMPRESSION (465)

90501-10353-00

$6.86

25

BOLT, WASHER BASED(59V)

90105-14367-00

$9.40

26

GASKET(59V)

90430-14194-00

$6.17

27

SHIFT PEDAL ASSY

5YT-18110-10-00

$82.85

28

COVER, SHIFT PEDAL

5YT-18113-00-00

$6.43

29

O-RING (22U)

93210-15566-00

$5.78

30

WASHER, PLATE (3X3)

90201-15797-00

$6.29

31

CIRCLIP (122)

93430-12008-00

$5.10

32

ARM, SHIFT

1UY-18112-10-00

$41.99

33

ROD, SHIFT

1JN-18115-00-00

$14.75

34

NUT (2H9)

90170-06228-00

$5.20

35

NUT(JN5)

95317-06700-00

$6.69

36

BOLT, HEXAGON

97017-06020-00

$2.55
