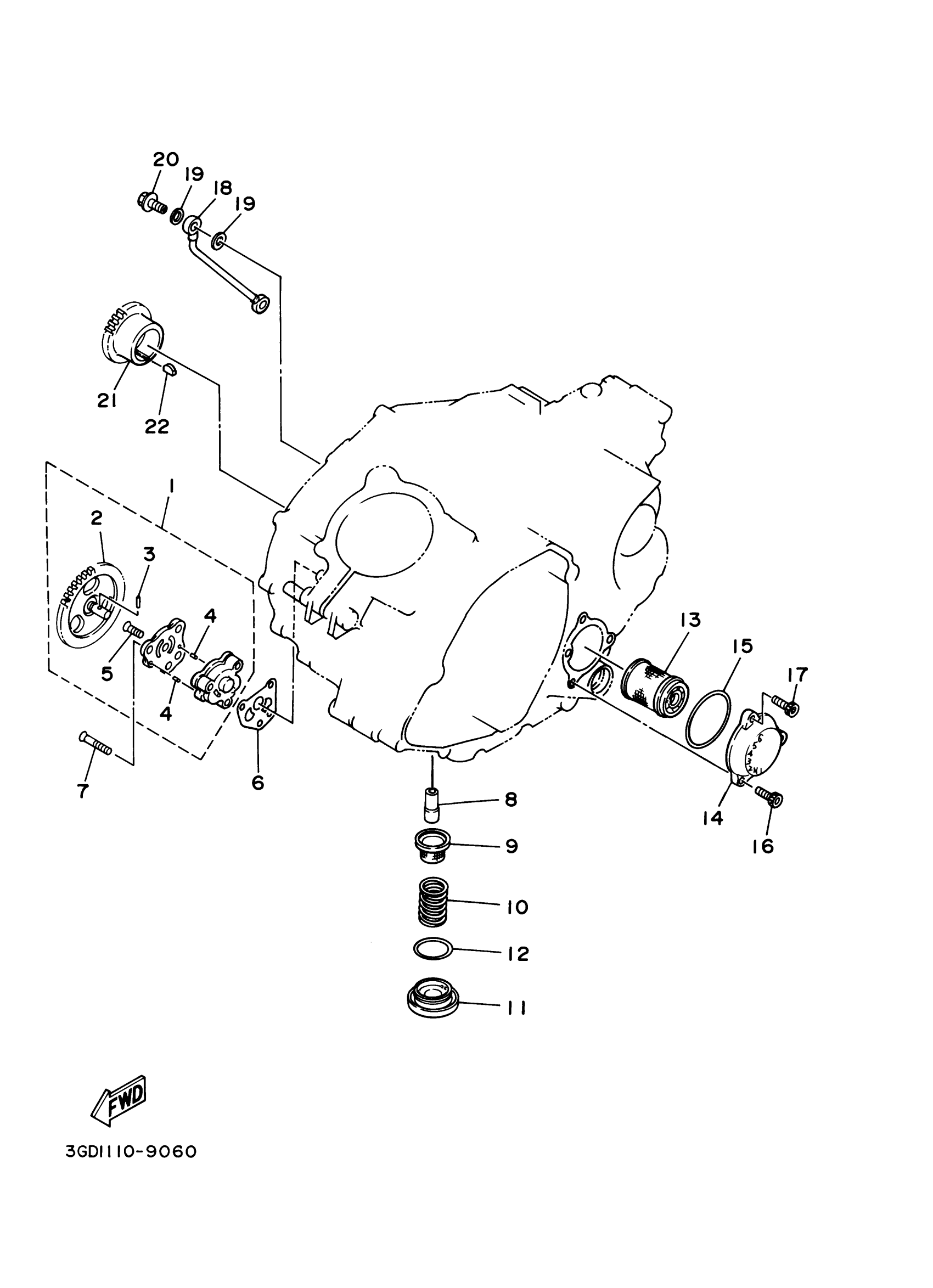

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

1UY-13300-00-00

$173.44

2

GEAR, PUMP DRIVEN 2

1UY-13326-00-00

Unavailable

3

PIN,DOWEL (137)

93603-12030-00

$1.88

4

PIN, DOWEL

93603-07073-00

$5.20

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

6

GASKET, PUMP COVER

3GD-13329-00-00

$6.46

7

SCREW, FLAT

98707-06030-00

$6.08

8

PIPE, OIL 1

2XK-13416-00-00

$6.62

9

STRAINER, OIL

51Y-13411-00-00

$31.03

10

SPRING, COMPRESSION (3Y1)

90501-18576-00

$4.70

11

PLUG, DRAIN

4HC-15351-00-00

$16.28

12

O-RING (5X4)

93210-35512-00

$11.12

13

ELEMENT ASSY, OIL CLEANER

1UY-13440-02-00

$14.64

14

COVER, OIL ELEMENT

3GD-13447-00-00

$53.92

15

O-RING (341)

93210-54175-00

$11.80

16

BOLT,SOCKET

91317-06020-00

$2.11

17

BOLT,SOCKET

91317-06020-00

$2.11

18

PIPE, DELIVERY 1

1UY-13161-01-00

$39.32

19

GASKET

90430-08119-00

$4.70

20

BOLT, UNION

90401-08004-00

$6.31

21

GEAR, PUMP DRIVE

1UY-13324-00-00

$46.14

22

KEY, WOODRUFF

90280-05001-00

$10.68
