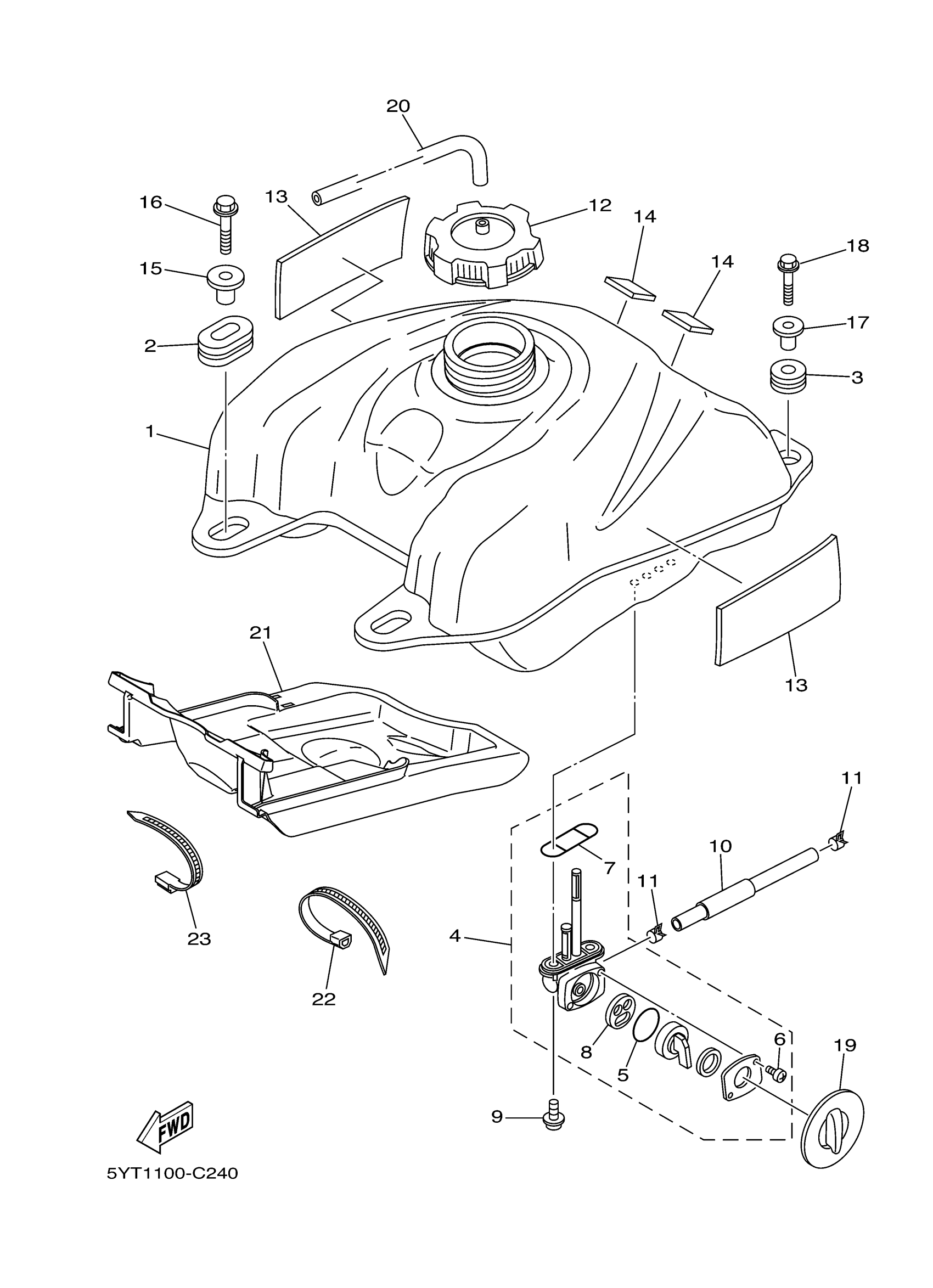

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5YT-24110-00-00

Unavailable

2

GROMMET(38W)

90480-01400-00

$10.06

3

GROMMET (4V1)

90480-18290-00

$7.02

4

FUEL COCK ASSY 1

21V-24500-20-00

$48.52

5

SEAL, COCK

3AJ-24534-01-00

$9.32

6

SCREW, PAN HEAD (J10)

98580-03008-00

$2.23

7

O-RING

4X8-24512-00-00

$7.51

8

VALVE PACKING

3AC-24523-00-00

$11.58

9

SCREW 256241430000

90149-06011-00

$1.58

10

PIPE, FUEL

5YT-24311-00-00

$6.94

11

CLIP

90467-10038-00

$1.51

12

CAP ASSY

5KM-24610-00-00

$53.05

13

DAMPER 1

5TG-21541-00-00

$6.52

14

DAMPER

5YT-24665-00-00

$6.38

15

COLLAR (17W)

90387-075H4-00

$6.45

16

BOLT, FLANGE

95817-06030-00

$3.91

17

COLLAR (36R)

90387-066J1-00

$6.86

18

BOLT, FLANGE

95817-06030-00

$3.91

19

LEVER, COCK

5YT-24524-01-00

Unavailable

20

HOSE (L600)

90445-083J5-00

$5.69

21

DAMPER, PLATE 1

5YT-2414H-00-00

$34.83

22

CLAMP(4FM)

90464-15195-00

$2.77

23

CLAMP(4FM)

90464-15195-00

$2.77
