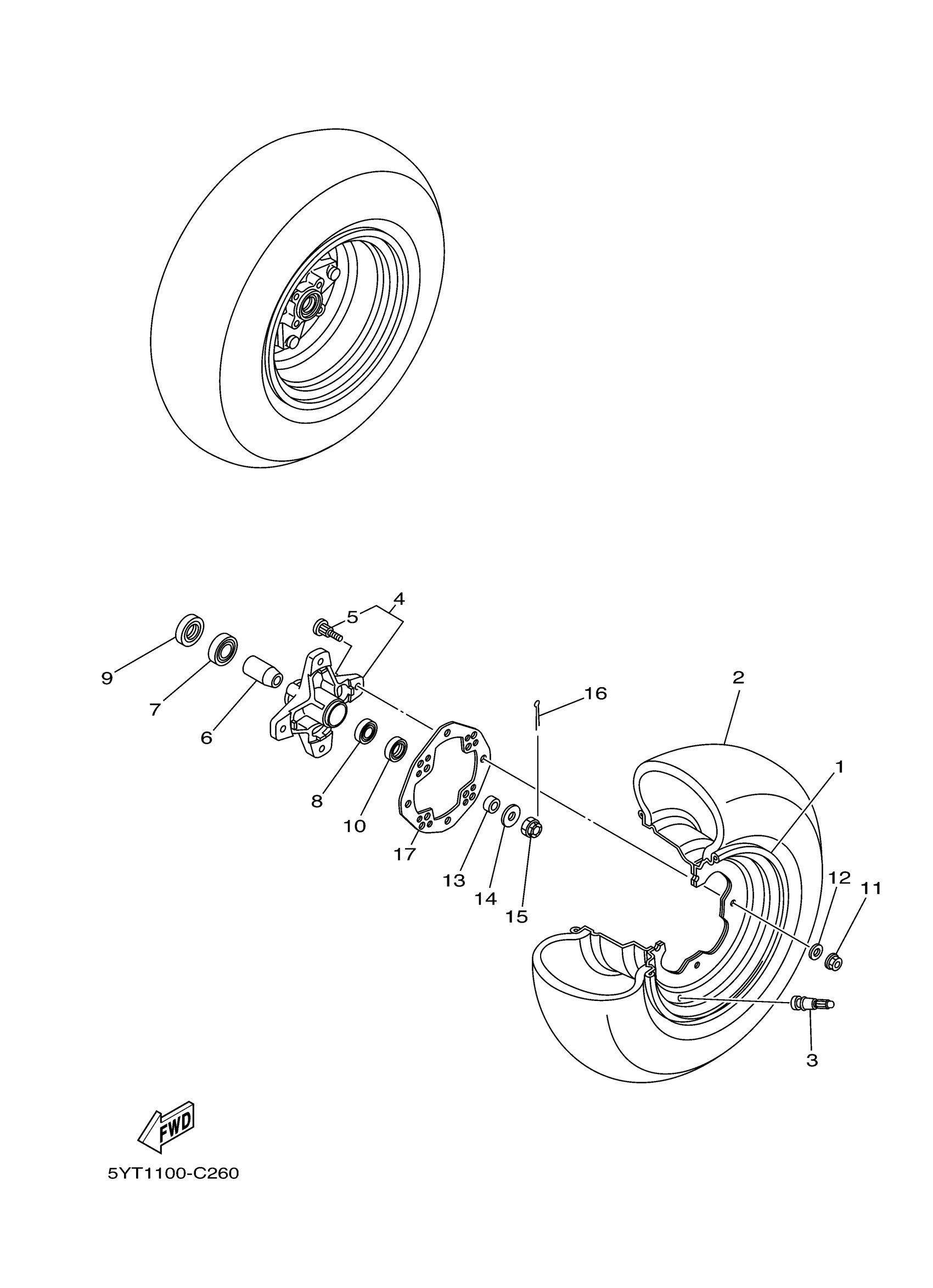

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

5LP-25180-11-YX

Unavailable

2

AT21X7-10 KT851 DUNLOP

94107-10020-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$14.46

4

HUB, FRONT

3GD-25111-01-00

Unavailable

5

BOLT (38W)

90114-10007-00

$5.14

6

SPACER, BEARING

1UY-25117-00-00

$23.55

7

BEARING(3BN)

93306-00438-00

$32.22

7

BEARING(3BN)

93306-00438-00

$32.22

8

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$21.28

9

OIL SEAL(1UY)

93105-26026-00

$10.68

10

OIL SEAL (7H5)

93102-22216-00

$9.89

11

NUT, FLANGE(8AB)

95707-10500-00

$1.66

12

WASHER, PLAIN(3BM)

92907-10200-00

$3.58

13

COLLAR(1UY)

90387-150R1-00

$6.29

14

WASHER PLATE 248181370000

90201-14220-00

$6.17

15

NUT, CASTLE(2UJ)

90171-14056-00

$10.57

16

PIN, COTTER

91401-30025-00

$6.18

17

COVER, PLATE

3GD-25127-10-00

Unavailable
