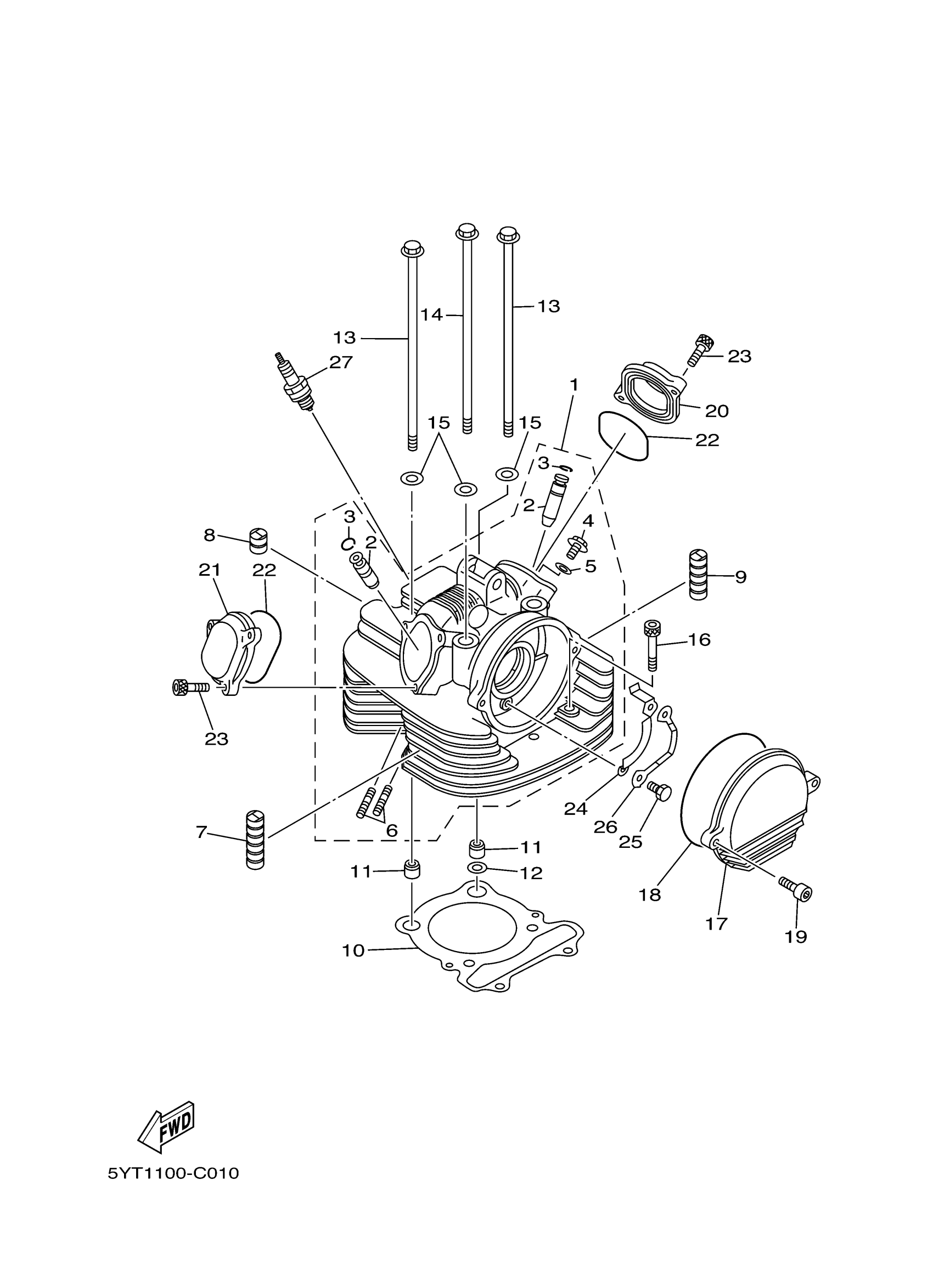

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5YT-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$24.50

3

CIRCLIP (1L9)

93440-12052-00

$1.75

4

BOLT UNION 137131650000

90401-06001-00

$7.48

5

GASKET (4V2)

90430-06166-00

$3.45

6

BOLT, STUD(2NL)

90116-06503-00

$7.51

7

ABSORBER

583-11127-00-00

$6.72

8

ABSORBER

583-11127-00-00

$6.72

9

ABSORBER

583-11127-00-00

$6.72

10

GASKET, CYLINDER HEAD 1

1UY-11181-01-00

$40.97

11

PIN, DOWEL

99530-14016-00

$3.20

12

GASKET

90430-14240-00

$6.91

13

BOLT, FLANGE

90105-10137-00

$10.65

14

BOLT, FLANGE

90105-10136-00

$9.83

15

WASHER PLATE 341839090000

90201-10128-00

$3.42

16

BOLT, SOCKET

91317-08050-00

$6.17

17

COVER, CYLINDER HEAD SIDE 1

5NF-11185-00-00

$23.75

18

O-RING (15A)

93211-06635-00

$12.42

19

BOLT,SOCKET

91317-06025-00

$2.05

20

COVER, CYLINDER HEAD SIDE 2

3Y1-11186-10-00

$24.94

21

COVER, CYLINDER HEAD SIDE 3

2NL-11187-11-00

$11.29

22

O-RING

93210-57634-00

$12.58

23

BOLT,SOCKET

91317-06020-00

$2.11

24

PLATE

3Y1-1111F-00-00

$6.72

25

BOLT, HEXAGON

97017-06012-00

$2.62

26

WASHER, LOCK (3Y1)

90215-06162-00

$7.43

27

DR8EA NGK SPLUG 10PK

DR8-EA000-00-00

$4.06
