Description

Price

1

CRANKSHAFT ASSY

1UY-11400-00-00

$858.46

2

CRANK SUB ASSY 1

1UY-11401-09-00

$341.42

3

CRANK 2

1UY-11422-00-00

Unavailable

4

PIN, CLEVIS(30X)

90240-07105-00

$14.28

5

SPRING, COMPRESSION (5H0)

90501-07629-00

$6.86

6

PIN, DOWEL (5H0)

93602-13177-00

$2.13

7

PIN, CRANK 1

30X-11681-00-00

$54.74

8

BEARING, CYLINDRICAL(2JN)

93310-633T5-00

$63.28

9

ROD, CONNECTING

1UY-11651-00-00

$114.52

10

WASHER (30X)

90209-33253-00

$13.58

11

BEARING(3KW)

93306-30630-00

$64.14

12

BOSS, BUFFER

30X-11496-00-00

$48.40

13

SPRING, COMPRESSION (5Y1)

90501-22721-00

$8.02

14

PIN, DOWEL

93605-10090-00

$5.41

15

GEAR, BALANCE WT

3Y1-11531-02-00

$58.26

16

WASHER, BEARING COVER

30X-11565-00-00

$7.97

17

BOLT (21V)

90101-10568-00

$4.35

18

WASHER(6TA)

92907-10100-00

$6.18

19

O-RING (538)

93210-16290-00

$6.82

20

WASHER, PLATE

90201-10058-00

$7.68

21

KEY, WOODRUFF

90280-05001-00

$10.68

22

PISTON (STD)

5UH-11631-00-C0

$94.62

22

PISTON (0.50MM O/S)

5UH-11636-00-00

$94.62

22

PISTON (1.00MM O/S)

5UH-11638-00-00

$101.42

23

PISTON RING SET (STD)

4GB-11610-00-00

$57.56

23

PISTON RING SET (0.50MM O/S)

4GB-11610-20-00

$55.05

23

PISTON RING SET (1.00MM O/S)

4GB-11610-40-00

$57.09

24

PIN, PISTON

55V-11633-00-00

$32.74

25

CIRCLIP (26H)

93450-19095-00

$2.04

26

GEAR, DRIVE

1UY-11536-01-00

$102.92

27

WEIGHT 1

1UY-11454-00-00

$154.38

28

OIL SEAL (5Y1)

93101-25106-00

$8.97

29

BEARING

93306-20532-00

$56.05

30

WASHER, PLATE (30X)

90201-207G6-00

$9.02

31

KEY, STRAIGHT (3L5)

90282-05034-00

$8.31

32

NUT, HEXAGON (30X)

90170-16326-00

$11.00

33

WASHER, LOCK(2NL)

90215-16270-00

$10.43

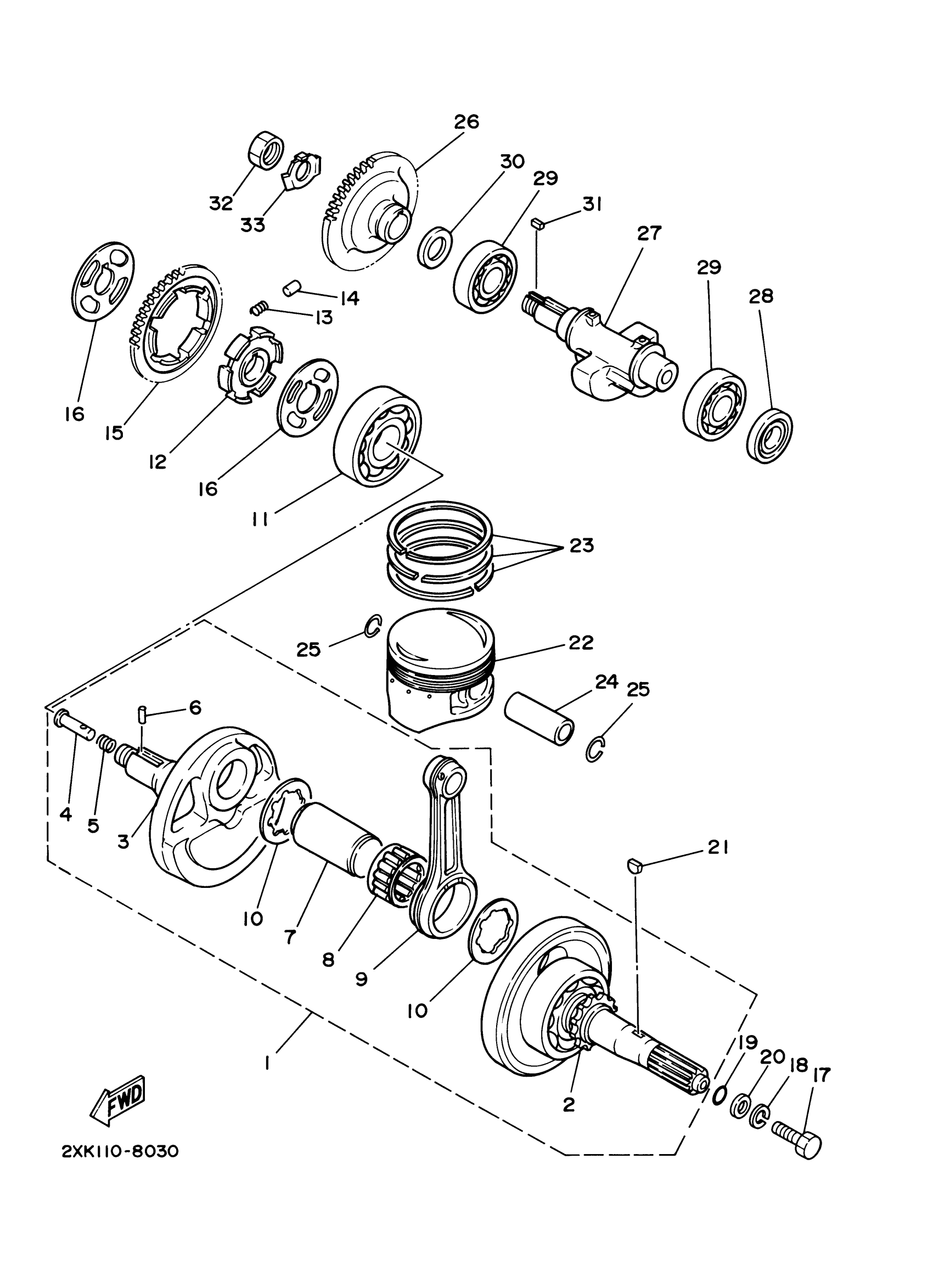

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 CRANKSHAFT PISTON Diagram
