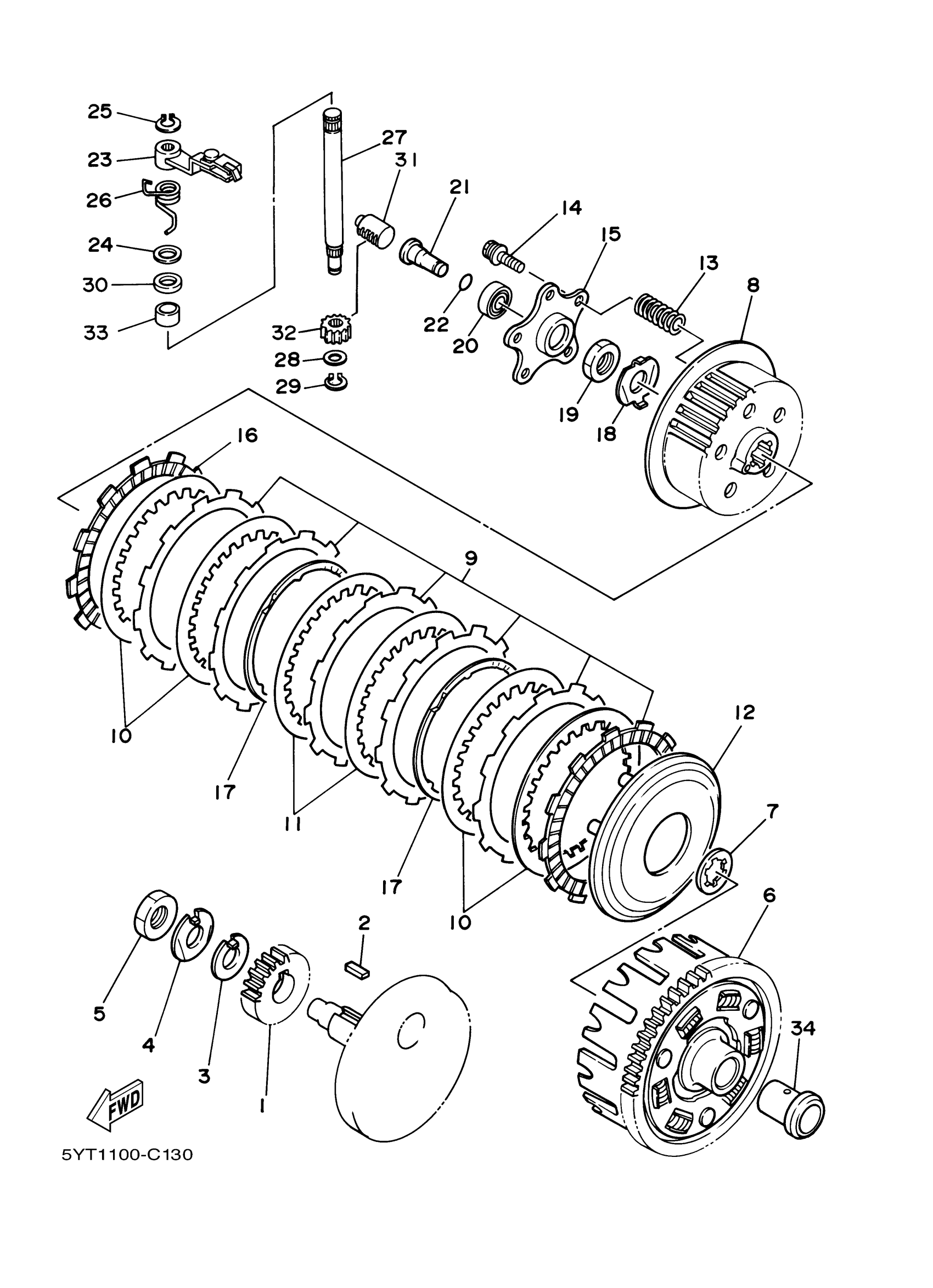

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1UY-16111-10-00

$47.65

2

KEY, STRAIGHT (30X)

90282-07057-00

$8.71

3

WASHER, LOCK (3Y1)

90215-16156-00

$6.09

4

WASHER, LOCK (30X)

90215-16222-00

$8.06

5

NUT(24V)

90170-16343-00

$13.22

6

PRIMARY DRIVEN GEAR COMP.

2NL-16150-00-00

$305.71

7

PLATE, THRUST 1

30X-16154-00-00

$22.86

8

BOSS, CLUTCH

1UY-16371-02-00

$123.31

9

PLATE, FRICTION

5Y1-16331-01-00

$25.90

10

PLATE, CLUTCH 2

168-16325-10-00

$13.32

11

PLATE, CLUTCH 1

3J2-16324-10-00

$10.21

12

PLATE, PRESSURE 1

1UY-16351-00-00

$105.29

13

SPRING, COMPRESSION(1UY)

90501-231E9-00

$8.82

14

SCREW, WITH WASHER(1AE)

90159-06123-00

$6.45

15

PLATE, PRESSURE 2

1UY-16352-00-00

Unavailable

16

PLATE, FRICTION

4H7-16321-02-00

$20.06

17

SPRING, CLUTCH BOSS

5Y1-16383-00-00

$27.42

18

WASHER, LOCK(1UY)

90215-16258-00

$7.94

19

NUT, HEXAGON (30X)

90170-16326-00

$11.00

20

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

21

PLATE, PUSH

1UY-16358-00-00

$8.52

22

O-RING (26H)

93210-06632-00

$6.68

23

PUSH LEVER ASSY

5YT-16340-00-00

$30.35

24

WASHER (692)

90201-12M34-00

$3.47

25

CIRCLIP(J51)

99080-09600-00

$1.88

26

SPRING, TORSION

90508-16022-00

$4.75

27

AXLE, PUSH LEVER

1UY-16382-00-00

Unavailable

28

WASHER PLATE 141181390000

90201-08085-00

$6.38

29

CIRCLIP

99080-07600-00

$2.89

30

OIL SEAL (4G0)

93102-12224-00

$8.35

31

ROD, PUSH 1

1UY-16356-00-00

Unavailable

32

PINION, RELEASE

3LD-16398-00-00

$22.37

33

BUSHING (256-11154-00)

90386-12093-00

$17.28

34

SPACER 1

1UY-16181-00-00

Unavailable
