Description

Price

1

CAMSHAFT ASSY 1

5UH-12170-00-00

$216.08

2

. COLLAR

90387-20013-00

Unavailable

3

. O-RING

93210-17003-00

$4.74

4

CIRCLIP (525)

93410-20038-00

$2.62

5

SPROCKET, CAM CHAIN

5YT-12176-00-00

$51.47

6

PIN,DOWEL (603)

93604-10011-00

$5.10

7

BOLT (583)

90101-10303-00

$6.25

8

WASHER, PLATE (3L6)

90201-10774-00

$6.25

9

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$29.61

10

BEARING(1FF)

93306-00519-00

$31.24

11

CHAIN, CAM SHAFT (3Y1)

94500-02090-00

$57.81

12

GUIDE, STOPPER 1

3Y1-12231-01-00

$35.44

13

GUIDE, STOPPER 2

1UY-12241-01-00

Unavailable

14

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$148.89

15

PLUG

31G-12222-00-00

$21.83

16

GASKET, TENSIONER

31G-12214-00-00

$12.27

17

GASKET, TENSIONER CASE

3GD-12213-00-00

$5.75

18

BOLT, SMALL FLANGE

95027-06025-00

$3.18

19

BOLT, HEXAGON

97017-06016-00

$6.18

20

WASHER(6TA)

92907-06600-00

$0.78

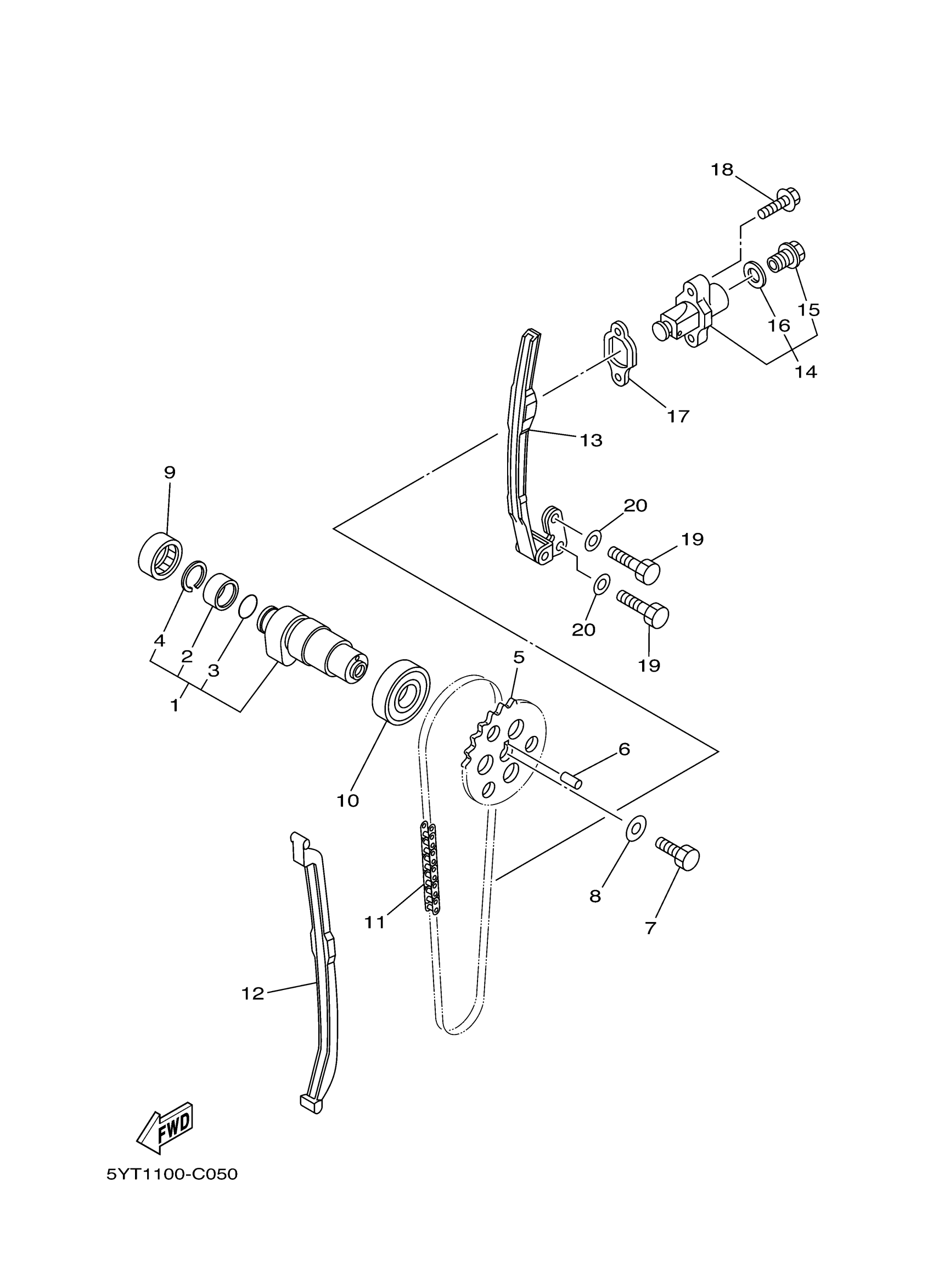

Yamaha YFM350S (RAPTOR 350) 5YT1 2004 CAMSHAFT CHAIN Diagram
