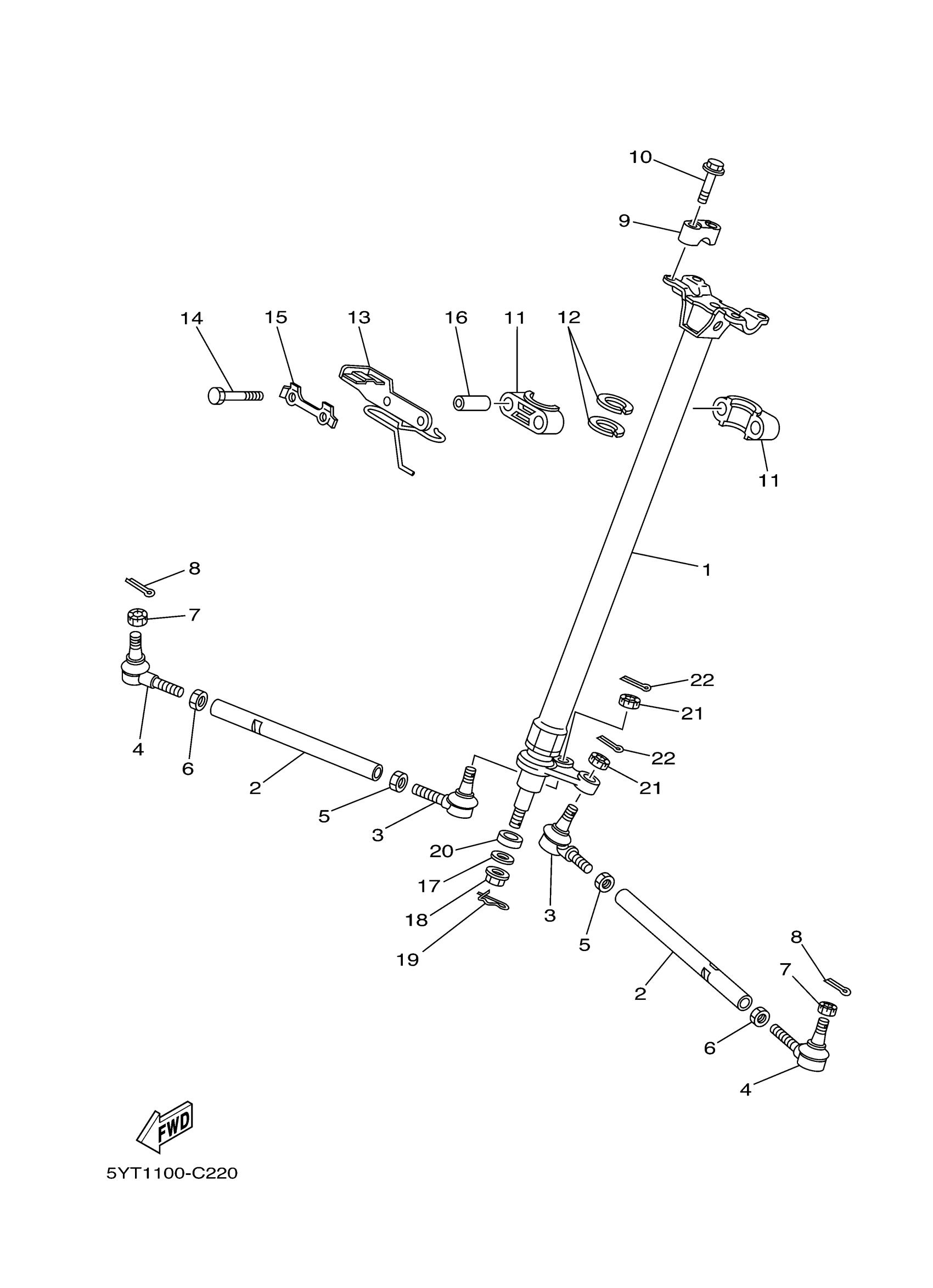

Yamaha YFM350RV (RAPTOR 350) 5YTA 2006 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5YT-23813-20-00

$270.99

2

ROD, TIE

3GD-23831-00-00

$25.99

3

JOINT, UNIVERSAL 1

1UY-23841-01-00

$76.99

4

JOINT, UNIVERSAL 2

1UY-23845-01-00

$76.99

5

NUT (3WP1)

95317-10700-00

$8.49

6

NUT, HEXAGON (8A5)

90170-10186-00

$10.49

7

NUT, CASTLE

90171-10001-00

$7.49

8

PIN, COTTER

91490-20025-00

$1.99

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

10

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

11

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

12

OIL SEAL(1UY)

93112-31011-00

$9.49

13

BRACKET, STEERING LOWER

5YT-23868-00-00

Unavailable

14

BOLT, HEXAGON

97017-08060-00

Unavailable

15

WASHER, LOCK 1

1UY-23894-01-00

$7.99

16

COLLAR(85G)

90387-106T4-00

Unavailable

17

WASHER, PLATE (3L6)

90201-10774-00

Unavailable

18

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

19

CLIP(3YF)

90468-16191-00

Unavailable

20

COLLAR(2GU)

90387-176R6-00

Unavailable

21

NUT, CASTLE

90171-10001-00

$7.49

22

PIN, COTTER

91490-20025-00

$1.99
