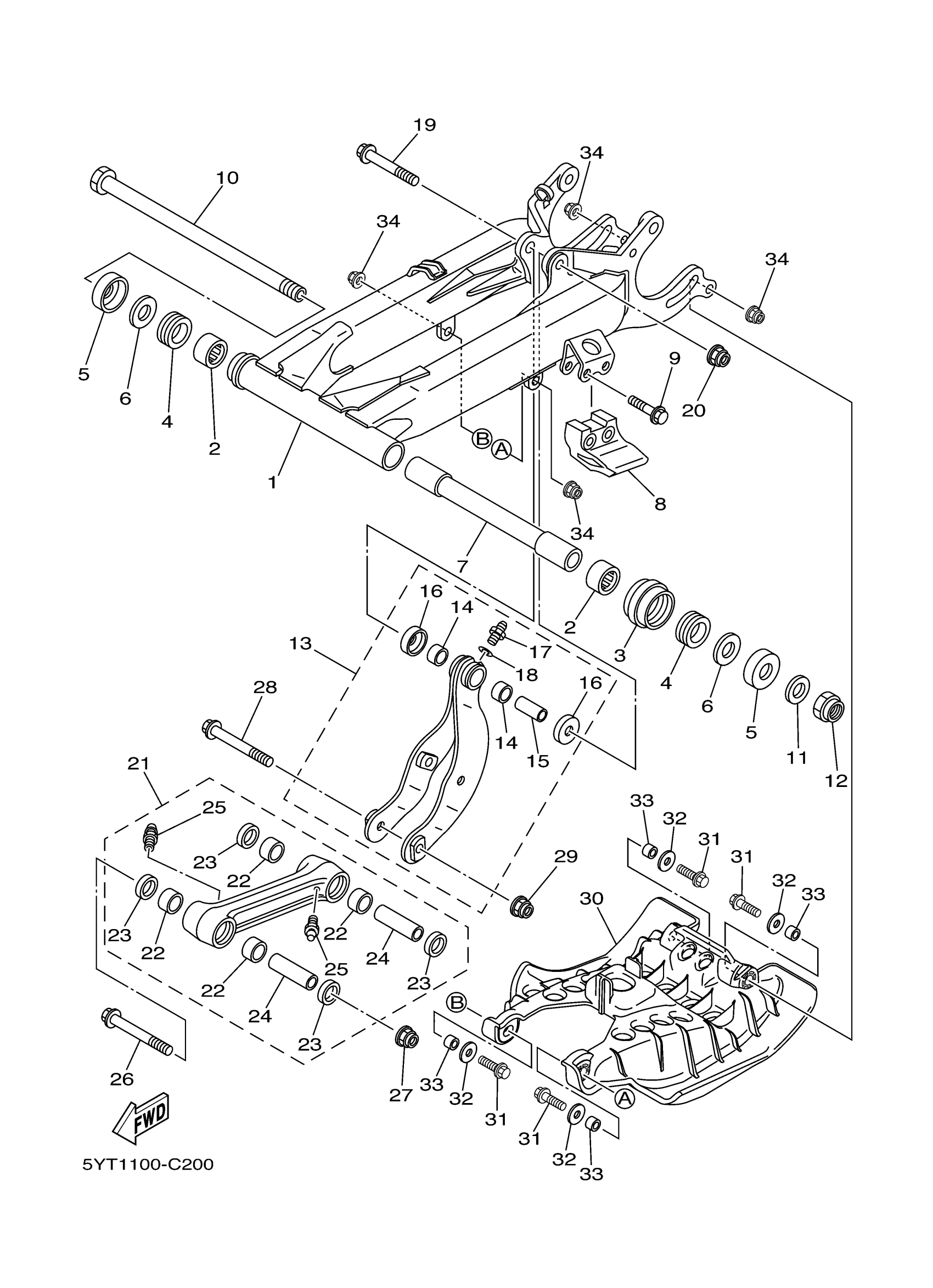

Yamaha YFM350RV (RAPTOR 350) 5YTA 2006 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

3GD-22110-30-00

Unavailable

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$36.96

3

SEAL, GUARD

2GU-22151-00-00

$14.87

4

OIL SEAL (35X41.5X8-483)

93108-35004-00

$11.73

5

COVER, THRUST

2K6-22128-01-00

$24.44

6

WASHER, PLATE(2VM)

90201-247L2-00

$7.55

7

BUSH

3GD-22184-00-00

$72.18

8

SUPPORT, CHAIN

38W-22199-00-00

$32.59

9

BOLT, FLANGE

95817-08040-00

$5.04

10

SHAFT, PIVOT

1UY-22141-10-00

$51.55

11

WASHER, PLATE (5X6)

90201-160F6-00

$7.03

12

NUT, SELF-LOCKING

90185-16002-00

$14.11

13

RELAY ARM SUB ASSY

5YT-2210J-00-00

$138.23

14

BUSH, FORMED(1RX)

90383-20032-00

$9.81

15

COLLAR(1RX)

90387-125N8-00

$13.99

16

COVER, THRUST 2

5YT-22129-00-00

Unavailable

17

NIPPLE, GREASE

93700-06M03-00

$7.40

18

WASHER, PLATE (J22)

90201-063F3-00

Unavailable

19

BOLT, FLANGE

90105-12028-00

Unavailable

20

NUT, U FLANGE

95607-12200-00

Unavailable

21

CONNECTING ROD SUB ASSY

5YT-2210K-00-00

Unavailable

22

BUSH, FORMED(1RX)

90383-20032-00

$9.81

23

OIL SEAL

93109-20076-00

Unavailable

24

COLLAR

90387-12021-00

Unavailable

25

NIPPLE, GREASE

93700-06M03-00

$7.40

26

BOLT, FLANGE

90105-12027-00

Unavailable

27

NUT, U FLANGE

95607-12200-00

Unavailable

28

BOLT, FLANGE

90105-12027-00

Unavailable

29

NUT, U FLANGE

95607-12200-00

Unavailable

30

COVER

5YT-2219X-00-00

Unavailable

31

BOLT, HEXAGON

97017-08030-00

Unavailable

32

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

33

COLLAR(1RW)

90387-0801M-00

Unavailable

34

NUT, FLANGE(JN5)

95707-08500-00

Unavailable
