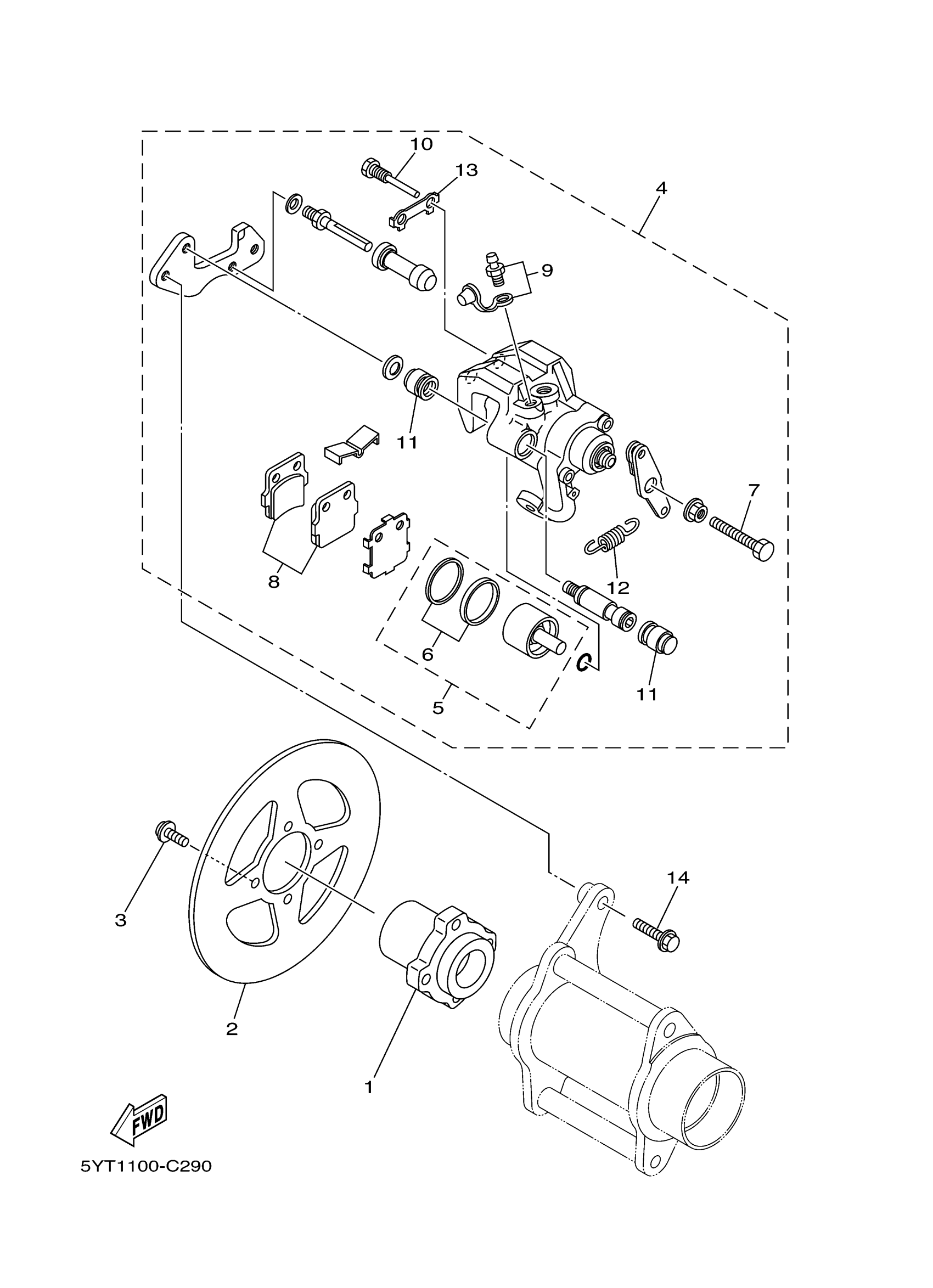

Yamaha YFM350RT (RAPTOR 350) 5YT5 2005 REAR BRAKE Diagram

BRACKET, DISC

5YT-25712-00-00

Unavailable

DISK, REAR BRAKE 2

5TG-2582W-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

CALIPER ASSY, REAR 2

5YT-2580W-00-00

$463.99

PISTON ASSY, CALIPER

1UY-W0057-50-00

$111.99

CALIPER SEAL KIT

1UY-W0047-50-00

$17.49

ADJUSTBOLT

1UY-25972-51-00

$13.49

BRAKE PAD KIT 2

5LP-W0046-51-00

$59.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

PIN, PAD

1UY-25924-51-00

Unavailable

BOOT, CALIPER

1UY-25917-51-00

$6.99

SPRING, RETURN

5YT-25977-50-00

Unavailable

WASHER, PAD PIN

1UY-25933-51-00

$6.99

BOLT, WASHER BASED(1UY)

90105-08440-00

$8.49
