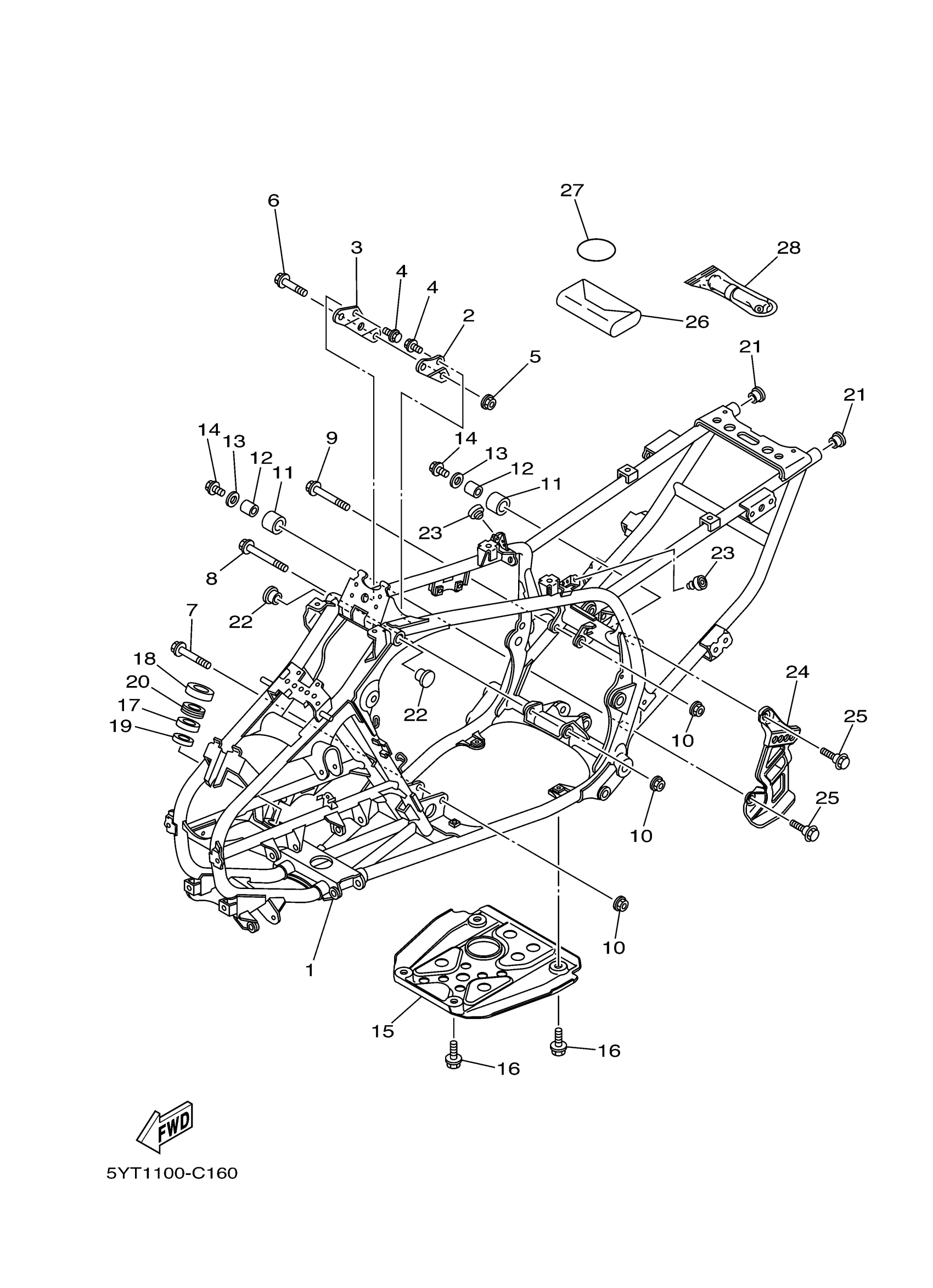

Yamaha YFM350RSEV (RAPTOR 350 SE) 5YTD 2006 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5YT-21110-20-00

Unavailable

2

STAY, ENGINE 2

1UY-21315-20-00

Unavailable

3

STAY, ENGINE 3

1UY-21316-20-00

$14.49

4

BOLT, FLANGE

95817-08012-00

$5.49

5

NUT, SELF-LOCKING

90185-08169-00

$8.49

6

BOLT, FLANGE

95817-08055-00

$4.21

7

B0LT,FLANGE (1KT)

90105-10323-00

$5.60

8

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

9

BOLT, WASHER BASED(2NL)

90105-10480-00

$8.49

10

NUT, SELF-LOCKING

90185-10002-00

$8.49

11

TENSIONER

3TB-22178-00-00

$27.99

12

BUSH

4V4-22184-00-00

$4.47

13

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

14

BOLT, FLANGE

95817-08012-00

$5.49

15

PROTECTOR, ENGINE

5YT-21471-00-00

Unavailable

16

BOLT

90109-08052-00

Unavailable

17

BEARING

93306-20348-00

Unavailable

18

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

19

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

20

HOLDER, BEARING

2GU-23872-00-00

Unavailable

21

PLUG (5R2)

90338-18122-00

Unavailable

22

PLUG(1FN)

90338-23172-00

Unavailable

23

PAD, SEAT

22W-24741-00-00

Unavailable

24

PROTECTOR

5YT-2117G-00-00

Unavailable

25

BOLT

90109-08052-00

Unavailable

26

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

27

BAND, BATTERY

3TJ-82131-00-00

Unavailable

28

GAUGE, AIR

1NV-2811A-01-00

Unavailable
