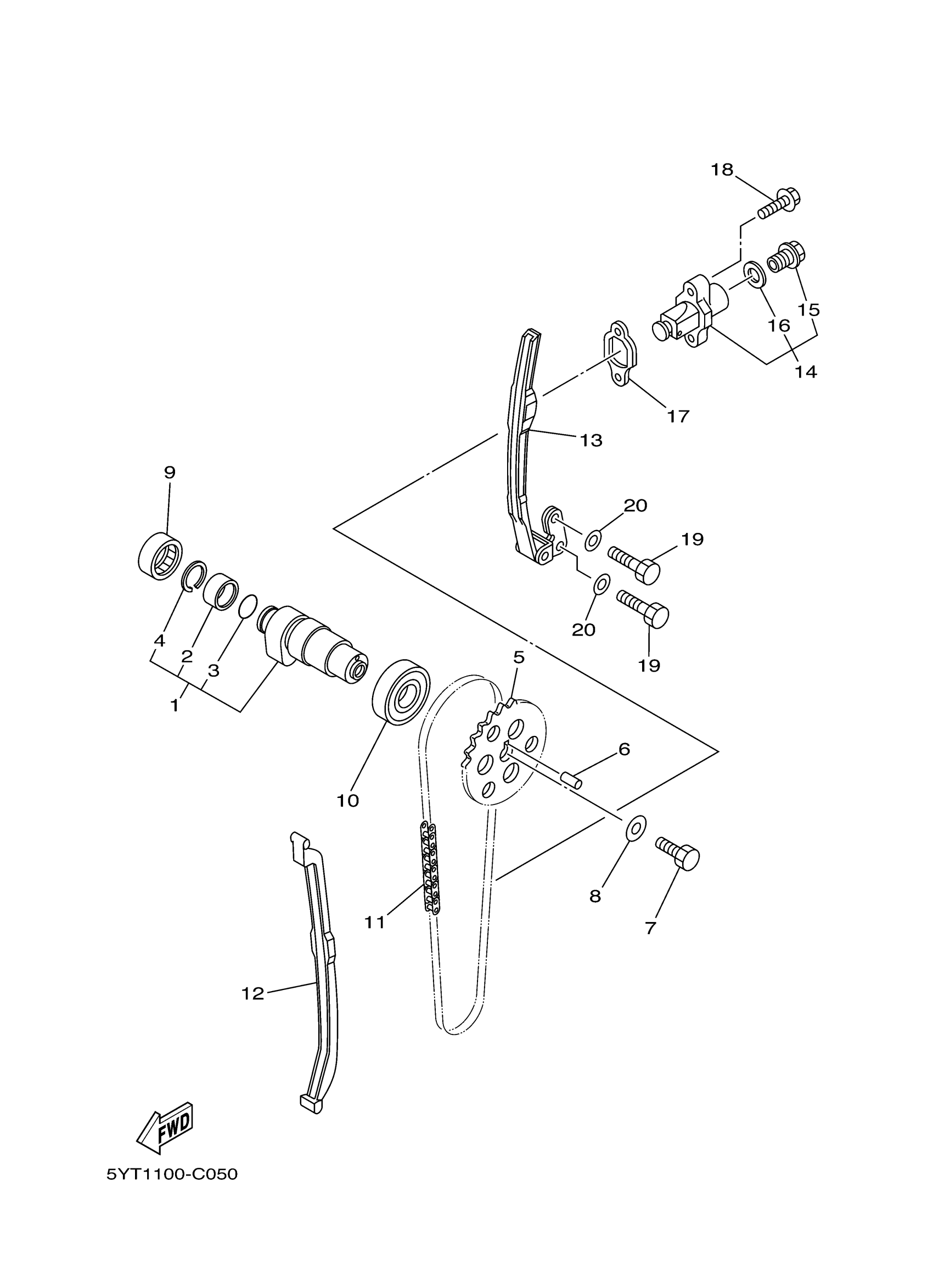

Yamaha YFM350RSEV (RAPTOR 350 SE) 5YTD 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5UH-12170-00-00

$218.99

2

. COLLAR

90387-20013-00

Unavailable

3

. O-RING

93210-17003-00

Unavailable

4

CIRCLIP (525)

93410-20038-00

$3.76

5

SPROCKET, CAM CHAIN

5YT-12176-00-00

Unavailable

6

PIN,DOWEL (603)

93604-10011-00

$8.49

7

BOLT (583)

90101-10303-00

$9.49

8

WASHER, PLATE (3L6)

90201-10774-00

$9.49

9

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$34.99

10

BEARING(1FF)

93306-00519-00

$36.99

11

CHAIN, CAM SHAFT (3Y1)

94500-02090-00

$68.99

12

GUIDE, STOPPER 1

3Y1-12231-01-00

$41.99

13

GUIDE, STOPPER 2

1UY-12241-01-00

Unavailable

14

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

15

PLUG

31G-12222-00-00

$24.99

16

GASKET, TENSIONER

31G-12214-00-00

Unavailable

17

GASKET, TENSIONER CASE

3GD-12213-00-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

19

BOLT, HEXAGON

97017-06016-00

Unavailable

20

WASHER(6TA)

92907-06600-00

Unavailable
