Description

Price

1

JOINT, CARBURETOR 1

5YT-13586-00-00

$85.99

2

O-RING (10L)

93210-44545-00

$13.49

3

BOLT, SOCKET

91317-08025-00

$8.49

4

HOSE CLAMP ASSY

90450-52007-00

$11.49

5

CASE, AIR CLEANER 1

5YT-14411-00-00

$65.99

6

HOOK

5TH-14436-00-00

$9.99

7

GUIDE

1UY-14458-01-00

$88.99

8

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

9

ELEMENT,AIR CLNR

1UY-14451-01-00

$14.49

10

CAP, CLEANER CASE 1

5YT-14412-01-00

$42.99

11

SEAL

1VJ-14462-00-00

$18.49

12

SEAL

59V-14457-00-00

$6.99

13

CLIP (21V)

90467-22080-00

$8.49

14

JOINT, AIR CLEANER 1

5YT-14453-01-00

$23.99

15

HOSE CLAMP ASSY

90450-75002-00

$11.49

16

PROTECTOR

5YT-1442F-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-63003-00

Unavailable

18

SCREW, TRUSS TAP.

97707-60025-00

Unavailable

19

GROMMET

90480-15005-00

Unavailable

20

PLATE, EPA 3 (CALIFORNIA)

5YT-2179T-10-00

Unavailable

21

PLUG(4BP)

90338-08226-00

Unavailable

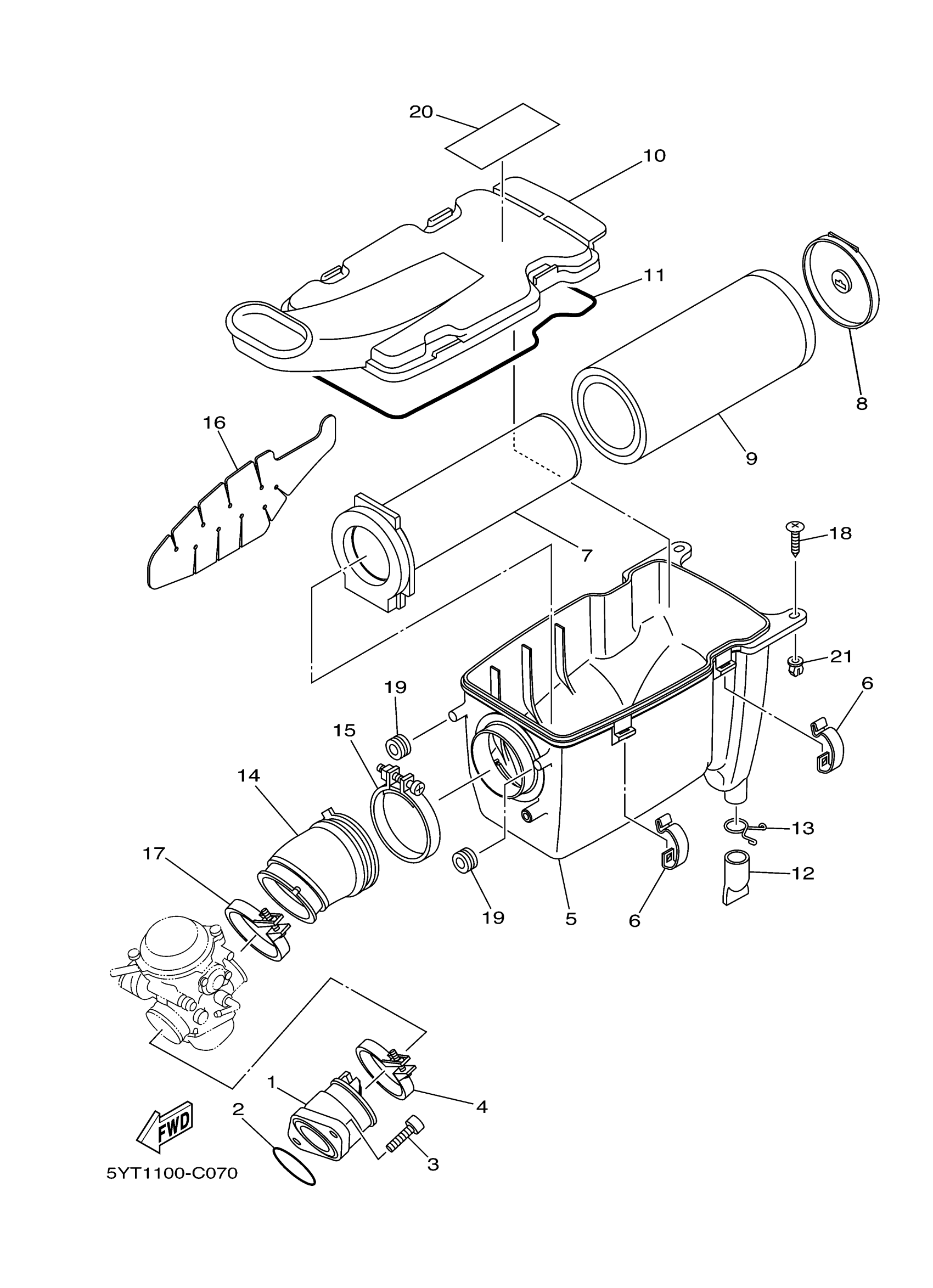

Yamaha YFM350RSET (RAPTOR 350 SE) 5YT4 2005 INTAKE Diagram

JOINT, CARBURETOR 1

O-RING (10L)

BOLT, SOCKET

HOSE CLAMP ASSY

CASE, AIR CLEANER 1

HOOK

GUIDE

PLATE, ELEMENT FITTING

ELEMENT,AIR CLNR

CAP, CLEANER CASE 1

SEAL

SEAL

CLIP (21V)

JOINT, AIR CLEANER 1

HOSE CLAMP ASSY

PROTECTOR

HOSE CLAMP ASSY

SCREW, TRUSS TAP.

GROMMET

PLATE, EPA 3 (CALIFORNIA)

PLUG(4BP)
