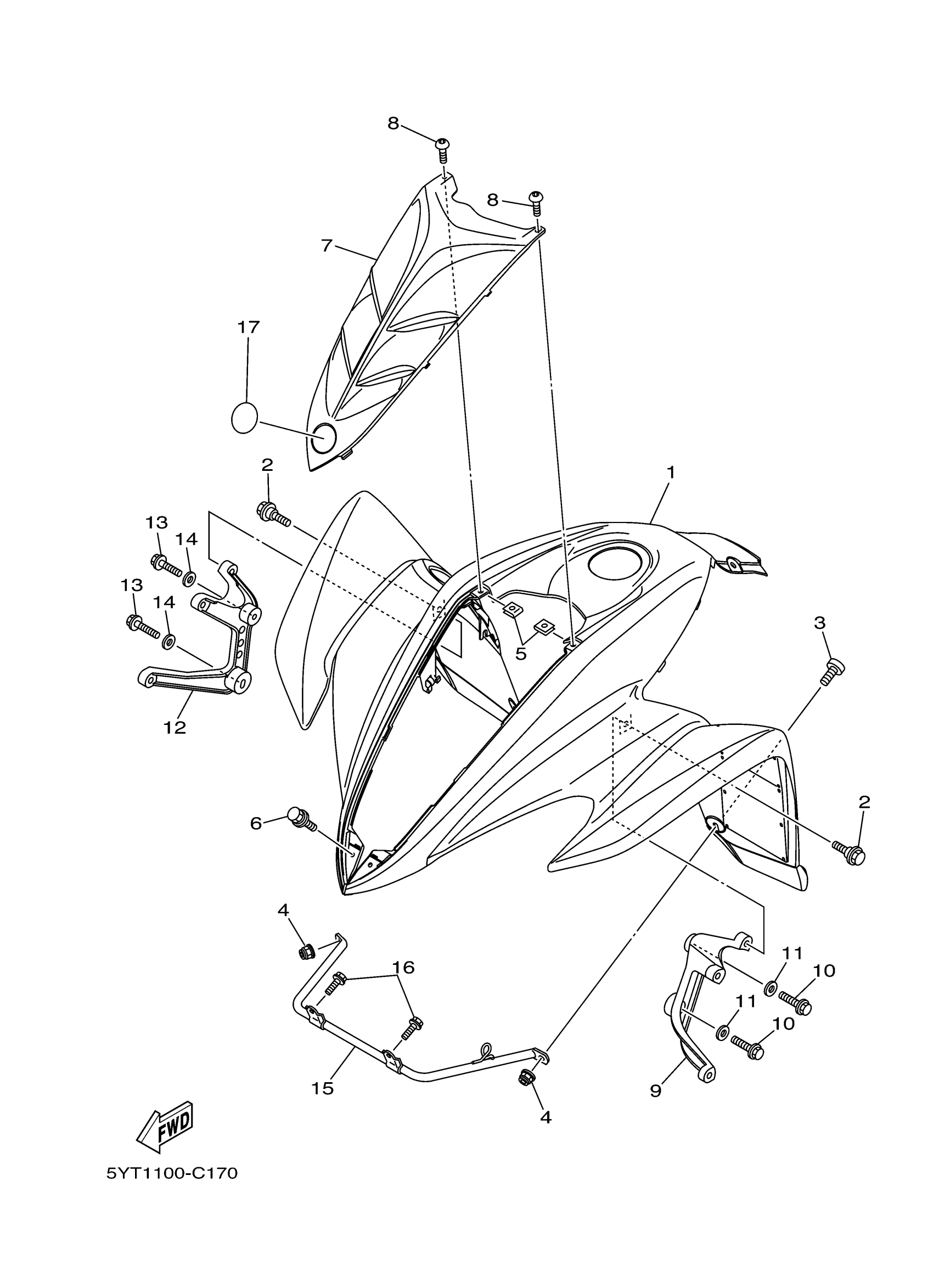

Yamaha YFM350RSET (RAPTOR 350 SE) 5YT4 2005 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5YT-W2151-31-00

Unavailable

2

BOLT(3KJ)

90109-063F1-00

$2.97

3

SCREW(3JM)

90149-06306-00

$8.49

4

NUT,SELF-LOCKING

95607-06200-00

$12.49

5

NUT, SPRING

90183-05008-00

$9.49

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

PANEL, FRONT

5YT-23391-A0-00

Unavailable

8

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

9

STAY, FENDER 1

5YT-21513-00-00

Unavailable

10

BOLT, FLANGE

95817-06014-00

Unavailable

11

. WASHER, PLATE

90201-06050-00

Unavailable

12

STAY, FENDER 2

5YT-21514-00-00

$73.99

13

BOLT, FLANGE

95817-06014-00

Unavailable

14

. WASHER, PLATE

90201-06050-00

Unavailable

15

STAY, FENDER 3

5YT-21562-00-00

Unavailable

16

BOLT, FLANGE

95817-06010-00

Unavailable

17

EMBLEM

8AC-2414B-01-00

Unavailable
