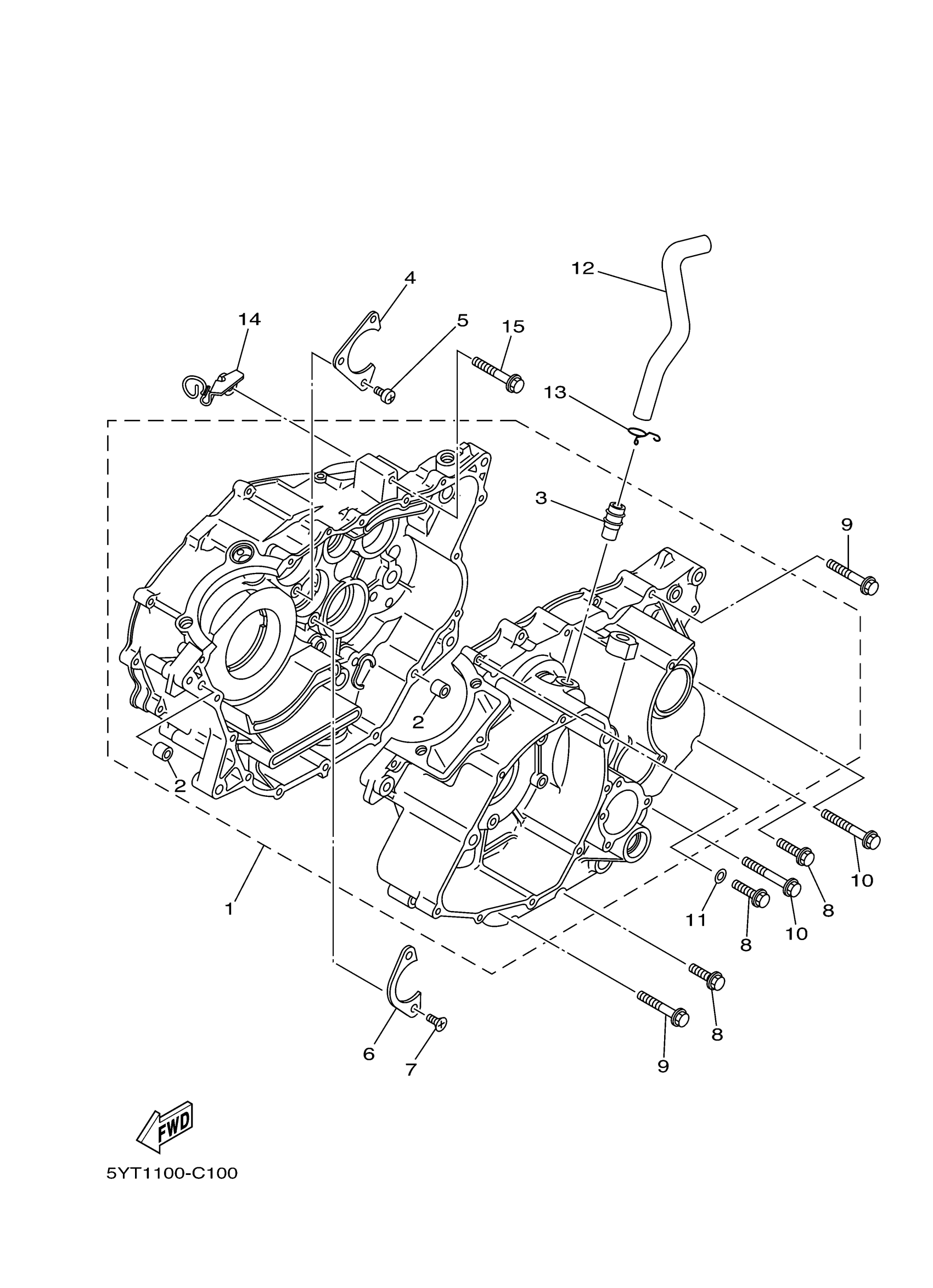

Yamaha YFM350RSET (RAPTOR 350 SE) 5YT4 2005 CRANKCASE Diagram

CRANKCASE ASSY

3GD-15100-03-00

$1,184.99

PIN, DOWEL

99530-12016-00

$4.89

PIPE, BREATHER 2

371-11167-01-00

$13.49

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

SCREW, PAN

98517-06012-00

$3.78

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06050-00

$2.55

BOLT, SMALL FLANGE

95027-06060-00

$2.87

GASKET 256113960000

90430-06014-00

Unavailable

PIPE, BREATHER 1

5YT-11166-00-00

Unavailable

CLIP (371)

90467-14015-00

$8.49

HOLDER, CLUTCH CABLE

5YT-15441-00-00

Unavailable

BOLT, FLANGE(JN5)

95817-08045-00

$3.69
