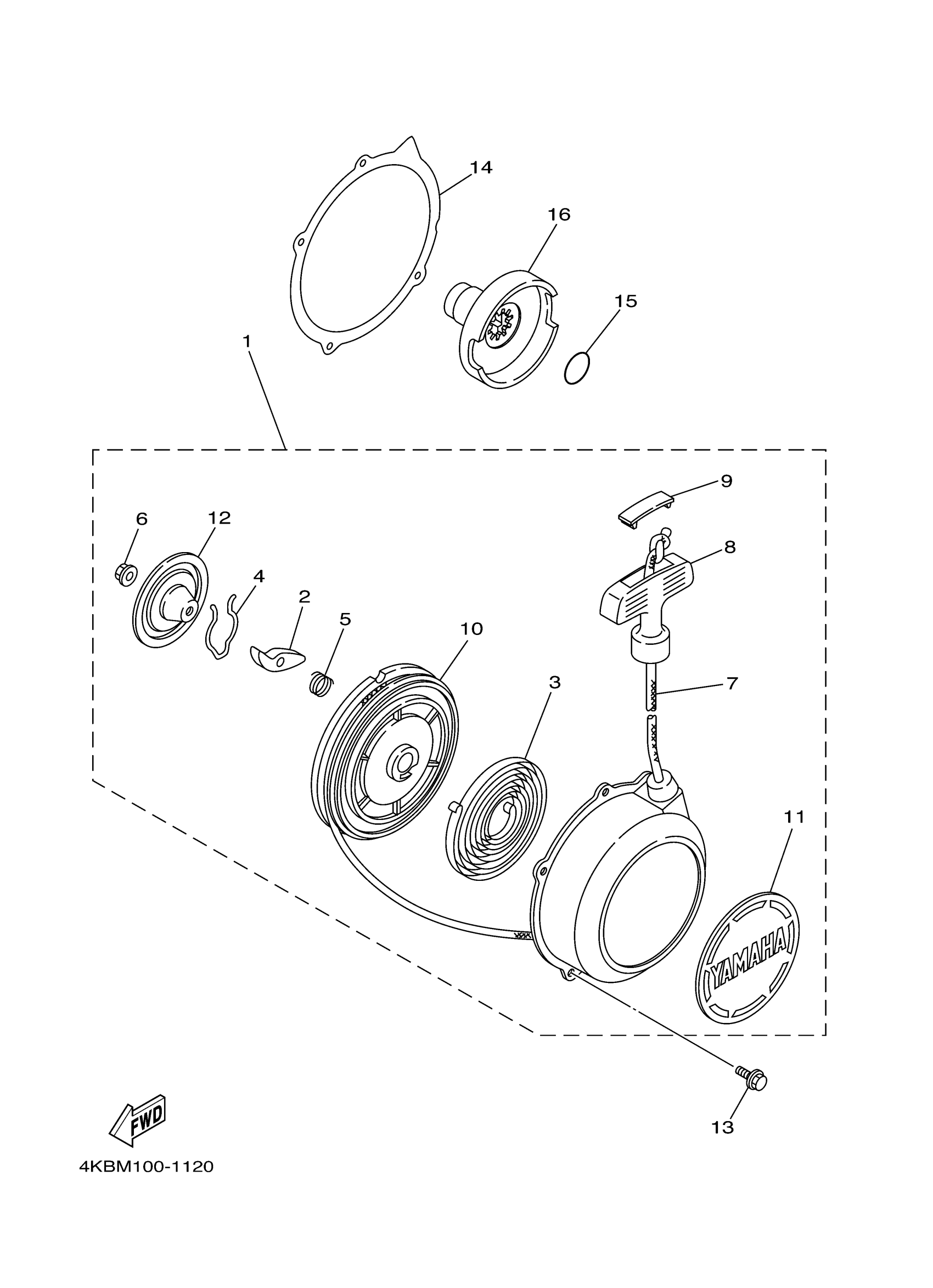

Yamaha YFM350FXR (WOLVERINE 4WD) 4KBV 2003 STARTER Diagram

#

Description
Price

1

STARTER ASSY

1UY-15710-20-00

Unavailable

2

PAWL, DRIVE

21V-15741-00-00

$23.99

3

SPRING, STARTER

21V-15713-00-00

$25.99

4

SPRING, FRICTION

21V-15715-01-00

$13.49

5

SPRING

21V-15767-00-00

$7.99

6

NUT, FLANGE

95702-06500-00

$2.39

7

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

8

HANDLE, STARTER

3X3-15755-00-00

$29.99

9

CAP, KNOB

21V-15779-00-00

$7.99

10

DRUM, SHEAVE

24W-15714-00-00

$57.99

11

EMBLEM

5GH-15443-01-00

Unavailable

12

PLATE, DRIVE

21V-15716-01-00

Unavailable

13

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

14

GASKET

3GD-15699-00-00

$25.99

15

O-RING (538)

93210-16290-00

Unavailable

16

PULLEY, STARTER

1UY-15723-00-00

Unavailable
