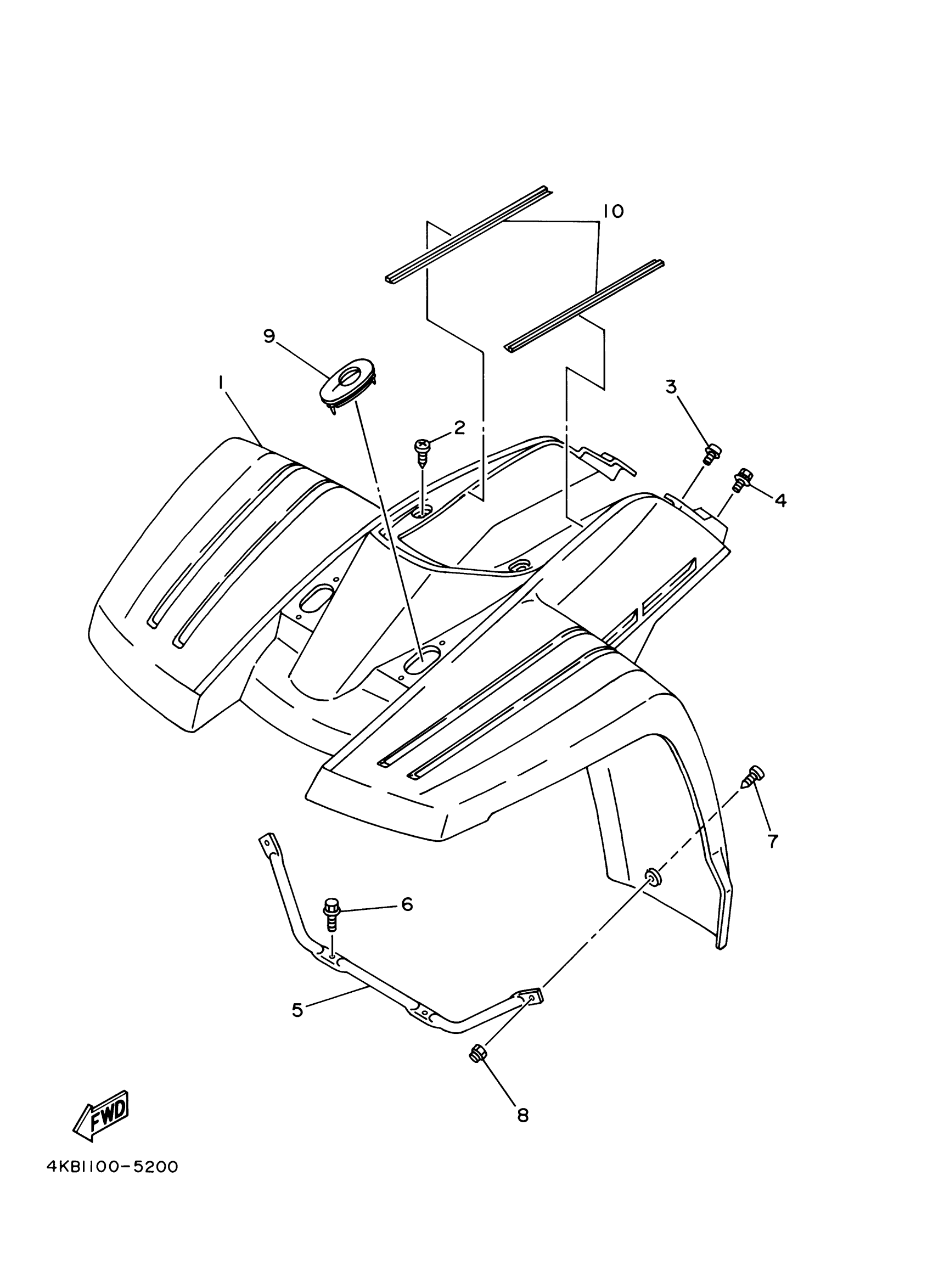

Yamaha YFM350FXR (WOLVERINE 4WD) 4KBV 2003 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (DPBSE)

4KB-W2151-52-00

Unavailable

1

FRONT FENDER COMP. (YAMAHA BLACK)

4KB-W2151-61-00

Unavailable

2

SCREW(3JM)

90149-06306-00

$2.76

3

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable

4

BOLT, WITH WASHER

90119-06152-00

$2.56

5

STAY, FENDER 1

4KB-21513-00-00

Unavailable

6

BOLT, FLANGE

95817-06012-00

$1.40

7

SCREW(3JM)

90149-06306-00

$2.76

8

NUT,SELF-LOCKING

95607-06200-00

$10.09

9

DAMPER 1

4KB-21541-00-00

Unavailable

10

MOLE, SIDE COVER 1

4WV-2171L-00-00

$6.05
