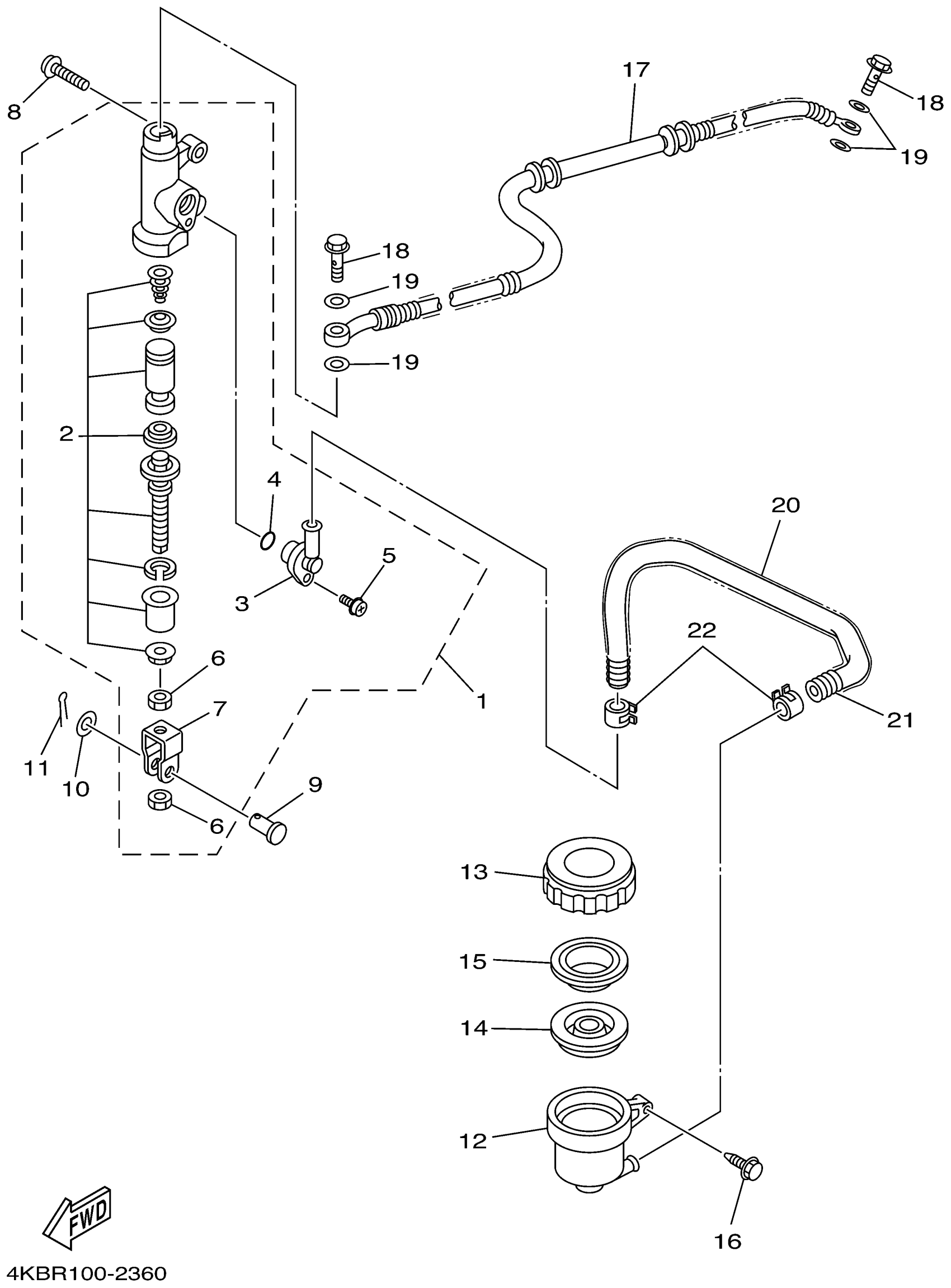

Yamaha YFM350FXP (WOLVERINE) 4KBR 2002 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

4KB-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

2GH-W0042-50-00

Unavailable

3

JOINT

31A-2582A-50-00

Unavailable

4

O-RING (22U)

93210-15566-00

$5.39

5

SCREW, WITH WASHER

3GM-2589H-00-00

$5.96

6

NUT, HEXAGON SMALL

95317-08700-00

$6.57

7

JOINT

2YK-27222-00-00

$18.91

8

BOLT, BUTTON

92017-08025-00

$5.75

9

PIN W/HOLE 307181180000

90240-08013-00

$4.89

10

WASHER, PLATE 1562722600

90201-08083-00

$5.86

11

PIN, COTTER

91490-16020-00

$5.74

12

TANK, RESERVOIR

47X-25894-00-00

Unavailable

13

CAP, RESERVOIR

2KF-25852-50-00

$40.00

14

DIAPHRAGM, RESERVER

360-25854-01-00

$19.48

15

BUSH,DIAPHRAGM

2GU-25855-00-00

$23.80

16

BOLT, WITH WASHER

90119-06226-00

Unavailable

17

HOSE, BRAKE

4KB-25874-00-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOSE, RESERVOIR

4KB-25895-00-00

Unavailable

21

SPRING, COMPRESSION

90501-102E8-00

Unavailable

22

CLIP (5K4)

90467-14057-00

Unavailable
