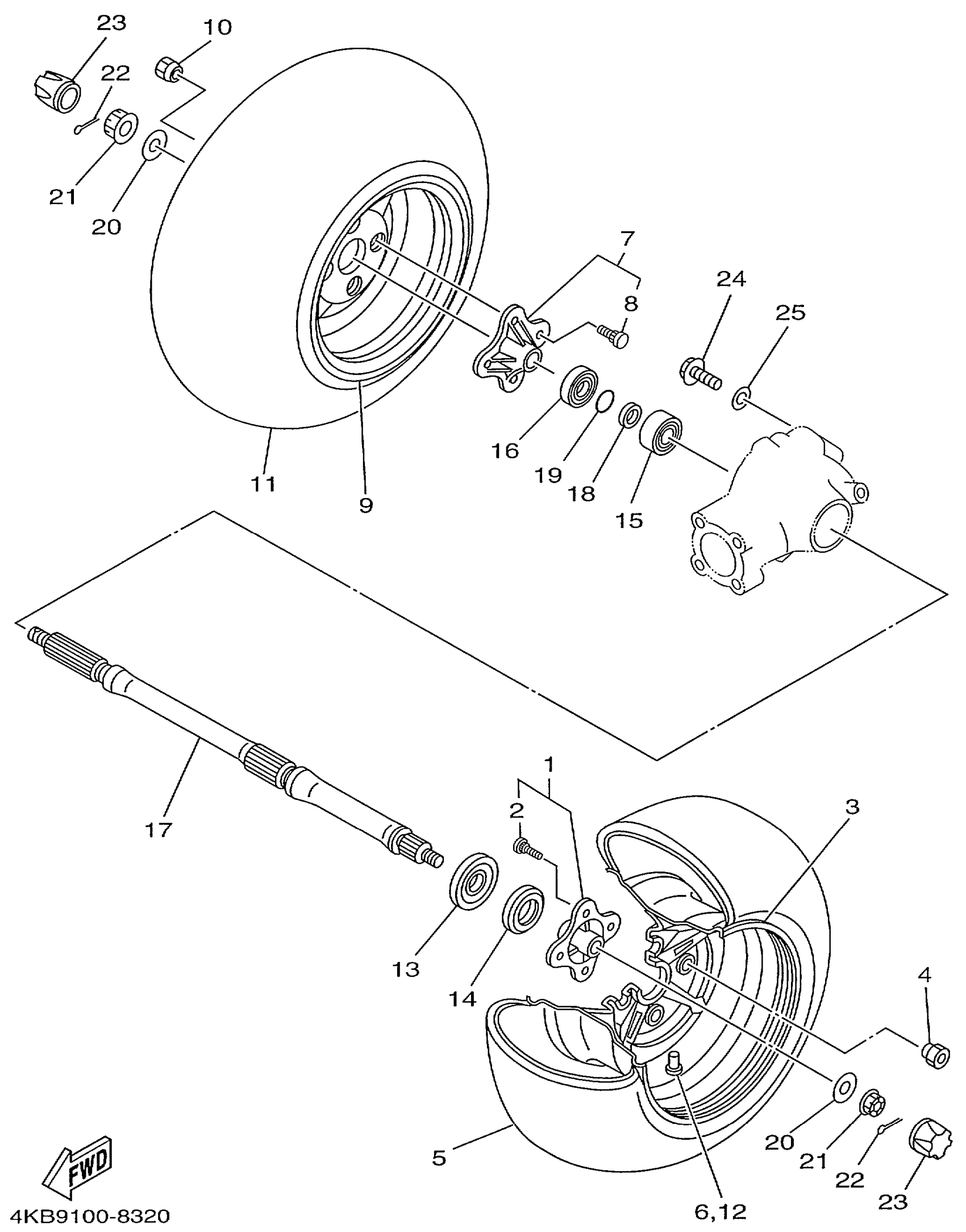

Yamaha YFM350FXLC (WOLVERINE 4WD) 4KBC 1999 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL

2HR-25383-01-00

$159.99

2

BOLT, SERRATION

90114-10014-00

$7.49

3

REAR WHEEL COMP.

4KB-25390-01-35

Unavailable

3

REAR WHEEL COMP.

4KB-25390-01-MA

Unavailable

4

NUT(2HR)

90179-10540-00

$5.60

5

TIRE (AT23X10-12 KT407)

94110-1205P-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

COLLAR, WHEEL

2HR-25383-01-00

$159.99

8

BOLT, SERRATION

90114-10014-00

$7.49

9

REAR WHEEL COMP.

4KB-25390-01-35

Unavailable

9

REAR WHEEL COMP.

4KB-25390-01-MA

Unavailable

10

NUT(2HR)

90179-10540-00

$5.60

11

TIRE (AT23X10-12 KT407)

94110-1205P-00

Unavailable

12

VALVE, RIM(2GH)

93900-00030-00

$16.99

13

BEARING

93306-00809-00

Unavailable

14

OIL SEAL(3HN)

93106-42037-00

Unavailable

15

BEARING(3JN)

93306-20531-00

Unavailable

16

OIL SEAL(2HR)

93102-38383-00

Unavailable

17

AXLE, WHEEL

4KB-25381-12-00

Unavailable

18

COLLAR(2NL)

90387-284T0-00

Unavailable

19

O-RING(22F)

93210-26662-00

Unavailable

20

WASHER, PLATE(2HR)

90201-162L6-00

Unavailable

21

NUT, CASTLE

90171-16001-00

Unavailable

22

PIN, COTTER

91490-30030-00

Unavailable

23

CAP, WHEEL

52H-2512A-00-00

Unavailable

24

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

25

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
