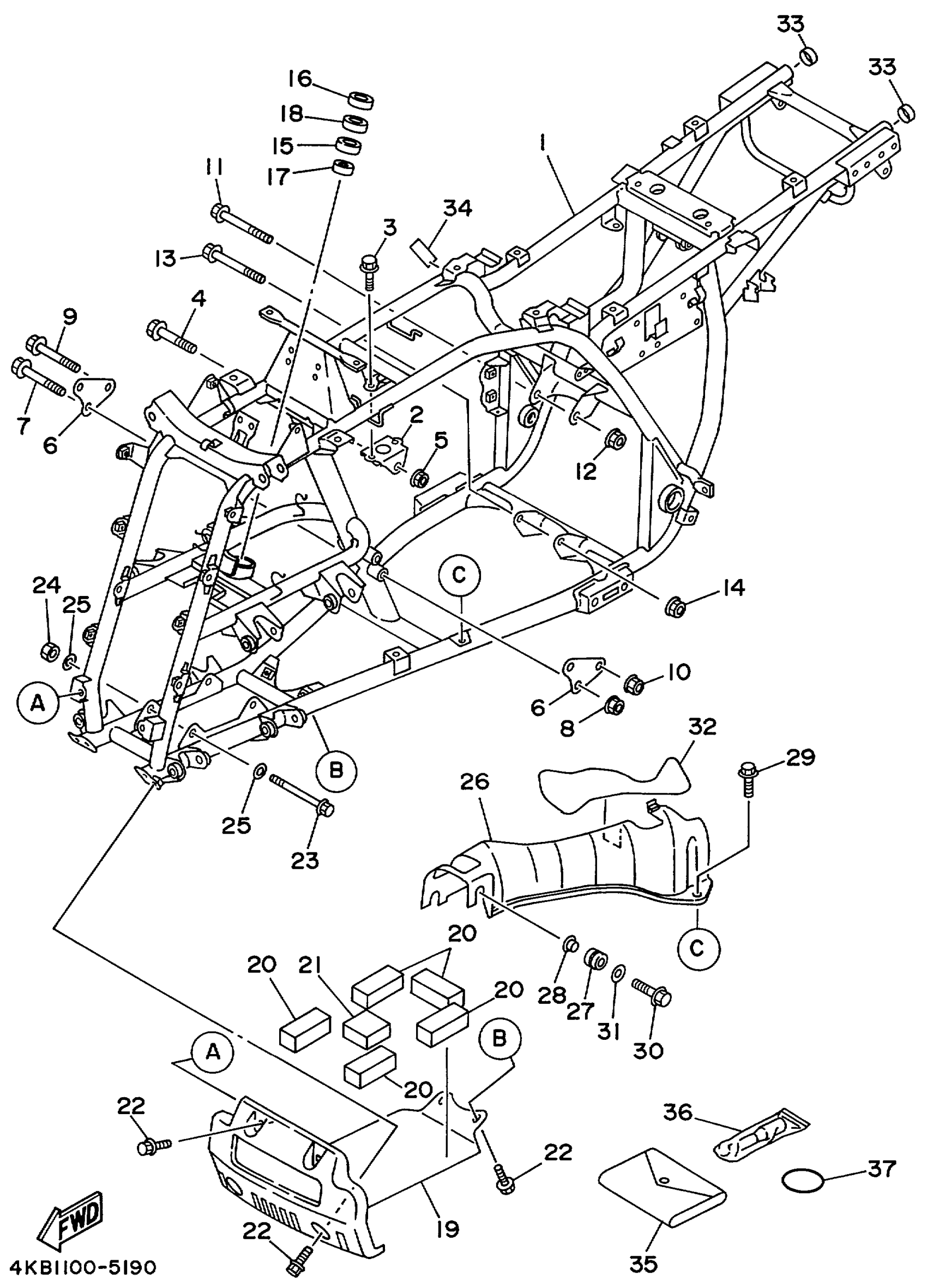

Yamaha YFM350FXLC (WOLVERINE 4WD) 4KBC 1999 FRAME Diagram
#
Description
Price
1
FRAME COMP. (YB)
4KB-21110-30-33
Unavailable
2
STAY,ENGINE 2
2HR-21315-02-00
Unavailable
6
STAY, ENGINE 3
4KB-21316-00-00
Unavailable
16
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
17
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
18
HOLDER, BEARING
2GU-23872-00-00
Unavailable
19
GUARD, ENGINE 1
4KB-2147A-00-00
Unavailable
20
DAMPER, PLATE
90520-10021-00
Unavailable
21
DAMPER 2
4KB-21486-00-00
Unavailable
22
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
23
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
25
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
26
COVER, SHAFT 1
4KB-2147J-00-00
Unavailable
27
GROMMET (1E6)
90480-15058-00
Unavailable
28
COLLAR (838-84757-00)
90387-06024-00
Unavailable
29
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
30
BOLT, WASHER BASED(4KB)
90105-06738-00
Unavailable
31
WASHER, PLATE
90201-06380-00
Unavailable
32
PROTECTOR
4KB-2117G-01-00
Unavailable
33
PLUG, TAPER(3FA)
90336-22056-00
Unavailable
34
SEAL
4KB-21268-00-00
Unavailable
35
TOOL KIT
4WV-28100-00-00
Unavailable
36
GAUGE, AIR
1NV-2811A-01-00
Unavailable
37
O-RING (102)
93210-41041-00
Unavailable
