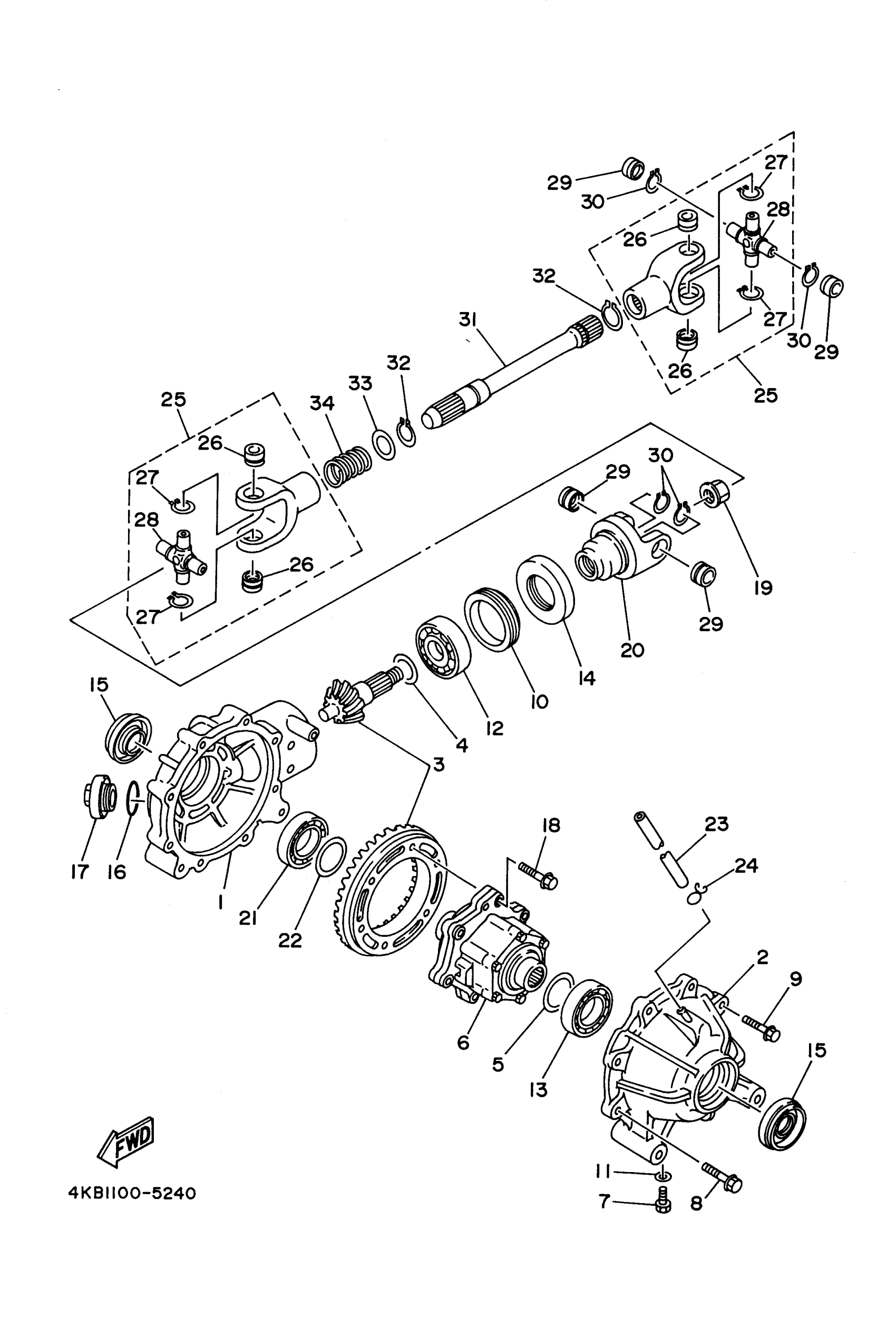

Yamaha YFM350FXH (WOLVERINE 4WD) 4KB3 1996 FRONT DIFFERENTIAL Diagram
#
1
HOUSING, SHAFT DRIVE 2
4KB-46161-00-00
Unavailable
2
HOUSING, BEARING 2
4KB-46162-00-00
Unavailable
3
PINION DRIVE GEAR SET
4KB-W4614-00-00
Unavailable
4
SHIM, RING GEAR (1.20T)
4KB-46117-E0-00
Unavailable
4
SHIM, RING GEAR (0.50T)
4KB-46117-00-00
Unavailable
4
SHIM, RING GEAR (0.55T)
4KB-46117-10-00
Unavailable
4
SHIM, RING GEAR (0.60T)
4KB-46117-20-00
Unavailable
4
SHIM, RING GEAR (0.65T)
4KB-46117-30-00
Unavailable
4
SHIM, RING GEAR (0.70T)
4KB-46117-40-00
Unavailable
4
SHIM, RING GEAR (0.75T)
4KB-46117-50-00
Unavailable
4
SHIM, RING GEAR (0.80T)
4KB-46117-60-00
Unavailable
4
SHIM, RING GEAR (0.85T)
4KB-46117-70-00
Unavailable
4
SHIM, RING GEAR (0.90T)
4KB-46117-80-00
Unavailable
4
SHIM, RING GEAR (0.95T)
4KB-46117-90-00
Unavailable
4
SHIM, RING GEAR (1.00T)
4KB-46117-A0-00
Unavailable
4
SHIM, RING GEAR (1.05T)
4KB-46117-B0-00
Unavailable
4
SHIM, RING GEAR (1.10T)
4KB-46117-C0-00
Unavailable
4
SHIM, RING GEAR (1.15T)
4KB-46117-D0-00
Unavailable
4
SHIM, RING GEAR (1.25T)
4KB-46117-F0-00
Unavailable
4
SHIM, RING GEAR (1.30T)
4KB-46117-G0-00
Unavailable
4
SHIM, RING GEAR (1.35T)
4KB-46117-H0-00
Unavailable
4
SHIM, DRIVE PINION (1.82T)
4KB-46127-00-00
Unavailable
4
SHIM, DRIVE PINION (1.88T)
4KB-46127-10-00
Unavailable
4
SHIM, DRIVE PINION (1.94T)
4KB-46127-20-00
Unavailable
4
SHIM, DRIVE PINION (2.00T)
4KB-46127-30-00
Unavailable
4
SHIM, DRIVE PINION (2.06T)
4KB-46127-40-00
Unavailable
4
SHIM, DRIVE PINION (2.12T)
4KB-46127-50-00
Unavailable
4
SHIM, DRIVE PINION (2.18T)
4KB-46127-60-00
Unavailable
5
SHIM, RING GEAR (1.40T)
4KB-46117-J0-00
Unavailable
5
SHIM, RING GEAR (1.45T)
4KB-46117-K0-00
Unavailable
5
SHIM, RING GEAR (1.50T)
4KB-46117-L0-00
Unavailable
5
SHIM, RING GEAR (1.55T)
4KB-46117-M0-00
Unavailable
5
SHIM, RING GEAR (1.60T)
4KB-46117-N0-00
Unavailable
6
LIMITED SLIP DIFF. ASSEMBLY
4KB-46470-00-00
Unavailable
7
BOLT, WASHER BASED(4KB)
90105-08759-00
Unavailable
8
BOLT, WASHER BASED
90105-08758-00
Unavailable
9
BOLT, WASHER BASED
90105-102A8-00
Unavailable
10
NUT(4KB)
90179-60664-00
Unavailable
11
WASHER, PLATE
90201-086R7-00
Unavailable
12
BEARING
93306-37210-00
Unavailable
13
BEARING
93306-07804-00
Unavailable
14
OIL SEAL(4KB)
93103-38178-00
Unavailable
15
OIL SEAL(4KB)
93105-22029-00
Unavailable
16
O-RING
93210-313A0-00
Unavailable
17
COVER, CYLINDER HEAD SIDE 2
4KB-11186-00-00
Unavailable
18
BOLT, WASHER BASED(4KB)
90105-08756-00
Unavailable
19
NUT
90179-16663-00
Unavailable
20
YOKE, JOINT 3
4KB-46146-00-00
Unavailable
21
BEARING
93306-07805-00
Unavailable
22
WASHER, THRUST (0.05T)
4KB-46118-00-00
Unavailable
22
WASHER, THRUST (0.55T)
4KB-46118-10-00
Unavailable
22
WASHER, THRUST (0.60T)
4KB-46118-20-00
Unavailable
22
WASHER, THRUST (0.65T)
4KB-46118-30-00
Unavailable
22
WASHER, THRUST (0.70T)
4KB-46118-40-00
Unavailable
22
WASHER, THRUST (0.75T)
4KB-46118-50-00
Unavailable
22
WASHER, THRUST (0.80T)
4KB-46118-60-00
Unavailable
22
WASHER, THRUST (0.85T)
4KB-46118-70-00
Unavailable
22
WASHER, THRUST (0.90T)
4KB-46118-80-00
Unavailable
22
WASHER, THRUST (0.95T)
4KB-46118-90-00
Unavailable
22
WASHER, THRUST (1.00T)
4KB-46118-A0-00
Unavailable
22
WASSEMBLYER, THRUST (1.05T)
4KB-46118-B0-00
Unavailable
22
WASHER, THRUST (1.10T)
4KB-46118-C0-00
Unavailable
22
WASHER, THRUST (1.15T)
4KB-46118-D0-00
Unavailable
22
WASHER, THRUST (1.20T)
4KB-46118-E0-00
Unavailable
22
WASHER, THRUST (1.25T)
4KB-46118-F0-00
Unavailable
22
WASHER, THRUST (1.30T)
4KB-46118-G0-00
Unavailable
22
WASHER, THRUST (1.35T)
4KB-46118-H0-00
Unavailable
22
WASHER, THRUST (1.40T)
4KB-46118-J0-00
Unavailable
22
WASHER, THRUST (1.45T)
4KB-46118-K0-00
Unavailable
22
WASHER, THRUST (1.50T)
4KB-46118-L0-00
Unavailable
22
WASHER, THRUST (1.55T)
4KB-46118-M0-00
Unavailable
22
WASHER, THRUST (1.60T)
4KB-46118-N0-00
Unavailable
23
HOSE (L1700)
90445-070G6-00
Unavailable
24
CLIP
90467-06016-00
Unavailable
25
CROSS JOINT COMP. 3
4GB-46108-10-00
Unavailable
26
BEARING(2HR)
93399-99926-00
Unavailable
27
CIRCLIP (4X7)
93440-20088-00
Unavailable
28
SPIDER
2HR-46187-00-00
Unavailable
29
BEARING(2HR)
93399-99926-00
Unavailable
30
CIRCLIP (4X7)
93440-20088-00
Unavailable
31
SHAFT, DRIVE 2
4KB-46173-00-00
Unavailable
32
CIRCLIP (537)
93410-22039-00
Unavailable
33
WASHER, PLATE(3HN)
90201-225M9-00
Unavailable
34
SPRING, COMPRESSION(3HN)
90501-234F8-00
Unavailable
