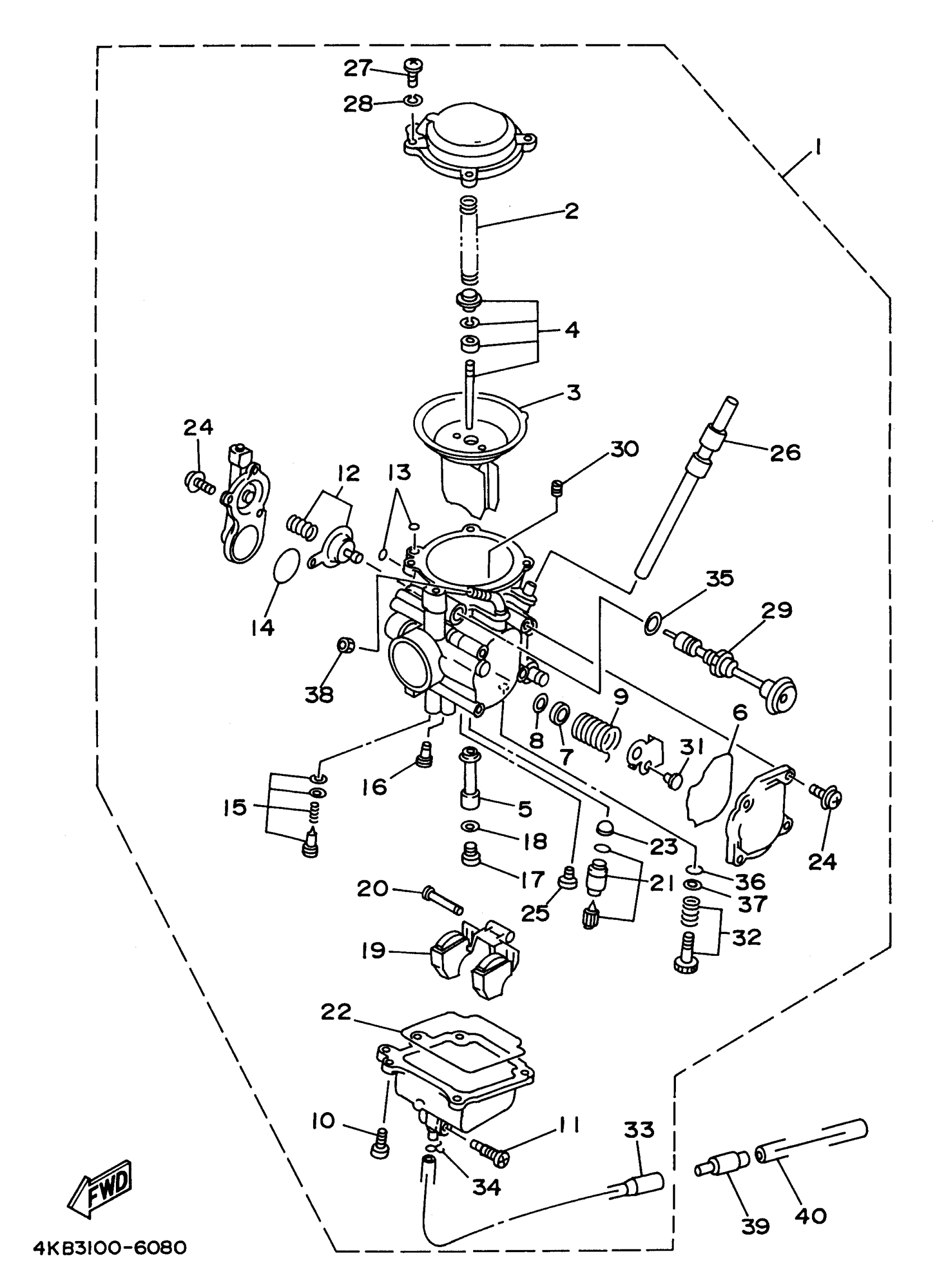

Yamaha YFM350FXH (WOLVERINE 4WD) 4KB3 1996 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
99999-03204-00
Unavailable
4
NEEDLE SET
4KB-1490J-30-00
Unavailable
5
. NOZZLE, MAIN
4KB-1414N-40-00
Unavailable
7
. COLLAR
4KB-14264-00-00
Unavailable
8
SEAL
2A2-14997-00-00
Unavailable
9
SPRING
4KB-14275-00-00
Unavailable
12
DIAPHRAGM SET, 5
3LD-1490H-00-00
Unavailable
16
JET, PILOT (# 42.5)
4G0-14142-42-A0
Unavailable
17
.. JET, MAIN (#140)
620-14231-28-00
Unavailable
18
WASHER,MAIN JET
137-14153-00-00
Unavailable
19
FLOAT
2VA-14185-00-00
Unavailable
20
PIN, FLOAT
537-14186-00-00
Unavailable
21
NEEDLE VALVE SET
1UY-14107-20-00
Unavailable
22
O-RING
2LN-14147-00-00
Unavailable
23
NET, FILTER
1J7-14994-00-00
Unavailable
25
SCREW
2LN-14565-00-00
Unavailable
26
. PIPE
4KB-14197-00-00
Unavailable
27
SCREW, PAN HEAD
98507-04018-00
Unavailable
28
WASHER(6TA)
92907-04100-00
Unavailable
29
PLUNGER, STARTER
4KB-14993-00-00
Unavailable
30
PILOT JET, AIR (1.6)
2A2-14172-16-00
Unavailable
31
GUIDE, CABLE
1UY-14155-00-00
Unavailable
32
. THROTTLE SCREW SET
4KB-14103-00-00
Unavailable
33
PIPE
4KB-14193-20-00
Unavailable
34
CLIP
14X-14937-00-00
Unavailable
35
. WASHER
4KB-14285-00-00
Unavailable
36
O-RING, PILOT SCREW
2H0-14147-00-00
Unavailable
37
WASHER
22U-14952-00-00
Unavailable
38
NUT, CABLE ADJUSTING
522-14161-00-00
Unavailable
39
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
40
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
