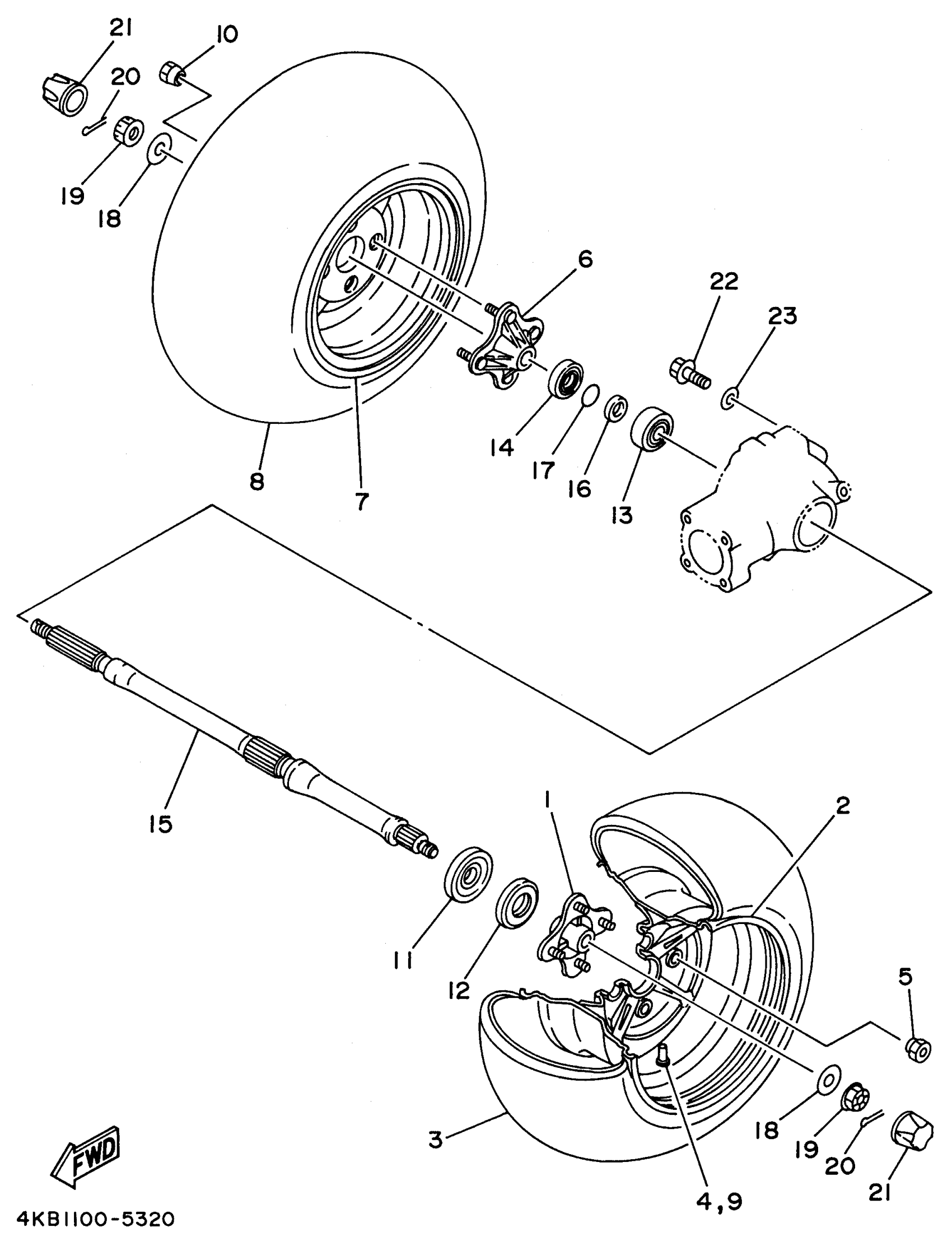

Yamaha YFM350FXH_MNH (WOLVERINE 4WD) 1996 REAR WHEEL Diagram
#
Description
Price
2
REAR WHEEL COMP.
4KB-25390-01-35
Unavailable
3
TIRE (AT23X10-12 KT407)
94110-1205P-00
Unavailable
7
REAR WHEEL COMP.
4KB-25390-01-35
Unavailable
8
TIRE (AT23X10-12 KT407)
94110-1205P-00
Unavailable
11
BEARING
93306-00809-00
Unavailable
12
OIL SEAL(3HN)
93106-42037-00
Unavailable
15
AXLE, WHEEL
4KB-25381-12-00
Unavailable
16
COLLAR(2NL)
90387-284T0-00
Unavailable
17
O-RING(22F)
93210-26662-00
Unavailable
18
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
19
NUT, CASTLE
90171-16001-00
Unavailable
20
PIN, COTTER
91490-30030-00
Unavailable
21
CAP, WHEEL
52H-2512A-00-00
Unavailable
22
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
23
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
