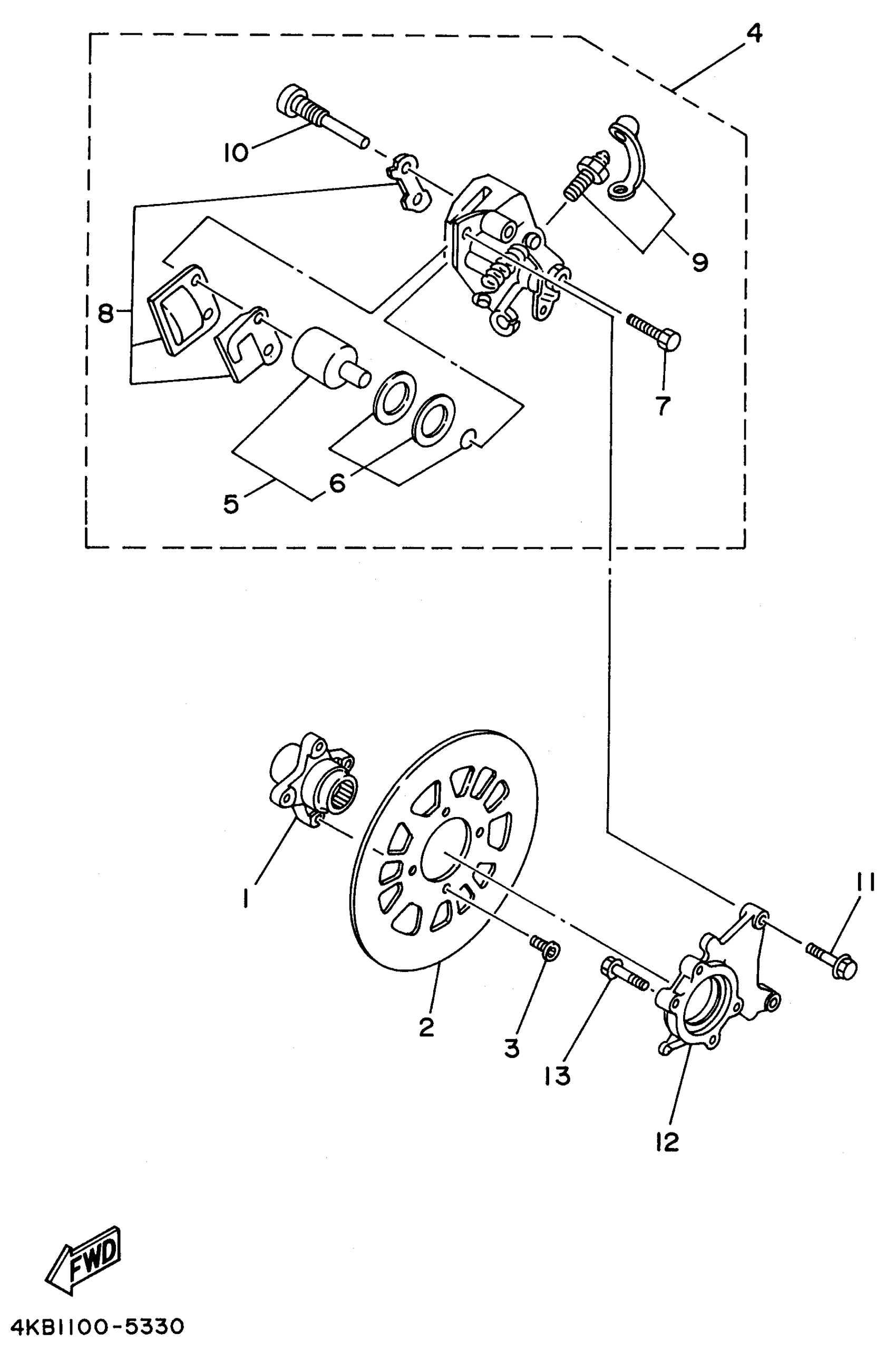

Yamaha YFM350FXH_MNH (WOLVERINE 4WD) 1996 REAR BRAKE CALIPER Diagram

BRACKET, DISC

4KB-25712-00-00

Unavailable

DISC, BRAKE

2XJ-25831-50-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

CALIPER ASSY, REAR 2

1UY-2580W-02-00

Unavailable

PISTON ASSY, CALIPER

1UY-W0057-50-00

$111.99

CALIPER SEAL KIT

1UY-W0047-50-00

$17.49

ADJUSTBOLT

1UY-25972-51-00

$13.49

BRAKE PAD KIT 2

1UY-W0046-01-00

$45.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

PIN, PAD

1UY-25924-51-00

Unavailable

BOLT, WASHER BASED(1UY)

90105-08440-00

$8.49

BRACKET, CALIPER

4KB-25819-00-00

Unavailable

BOLT, FLANGE

95817-08035-00

$9.49
