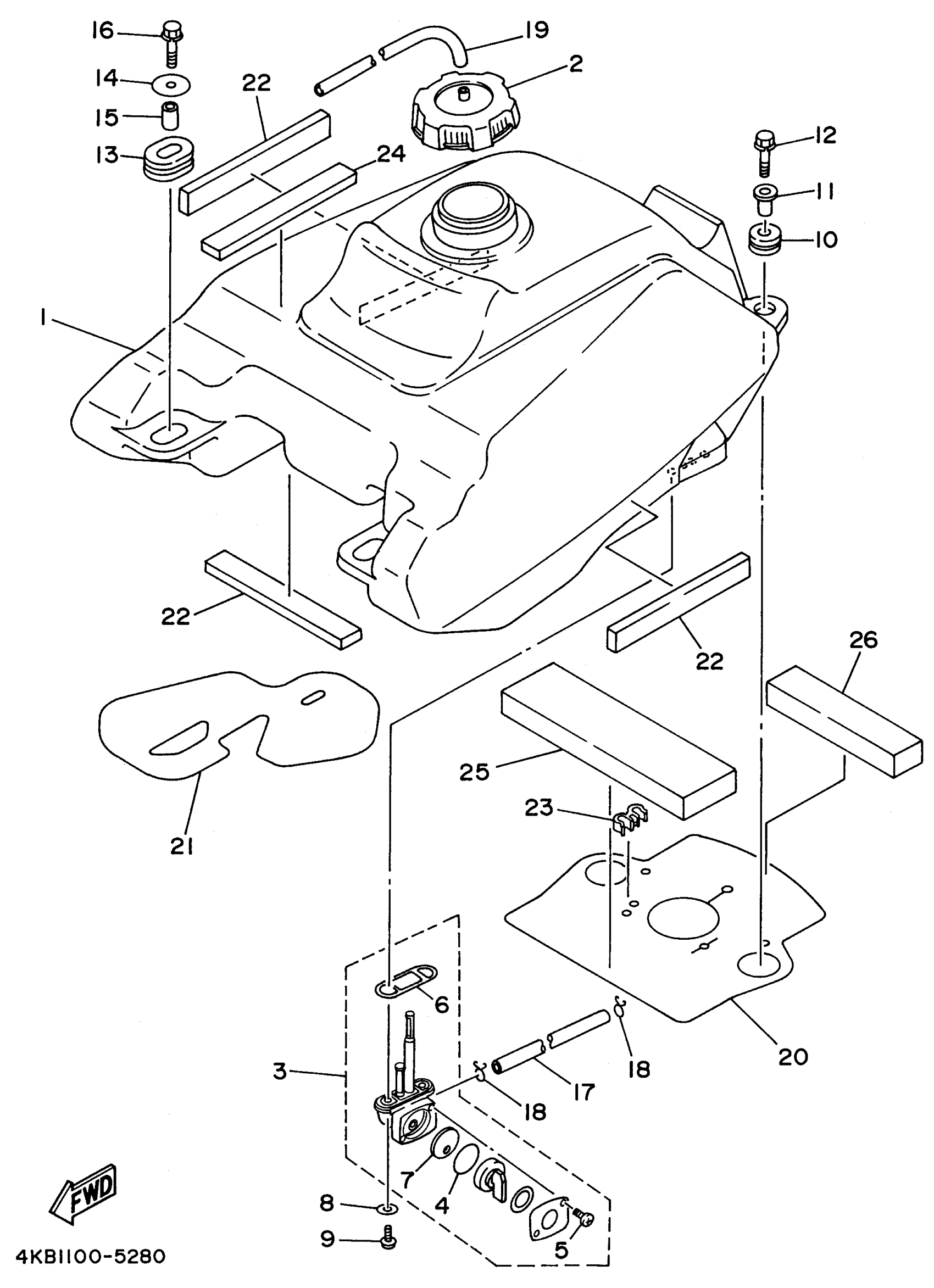

Yamaha YFM350FXH_MNH (WOLVERINE 4WD) 1996 FUEL TANK Diagram

FUEL TANK COMP.

4KB-24110-00-00

Unavailable

CAP ASSY

5MV-24610-00-00

$58.99

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

SEAL, COCK

3AJ-24534-01-00

$10.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

O-RING

4X8-24512-00-00

$8.99

VALVE PACKING

3AC-24523-00-00

$12.99

WASHER, PLATE(3MB)

90202-05187-00

$1.38

SCREW 256241430000

90149-06011-00

$5.60

GROMMET (4V1)

90480-18290-00

$8.49

COLLAR (36R)

90387-066J1-00

$8.49

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

GROMMET(38W)

90480-01400-00

$13.49

WASHER, PLATE

90201-06090-00

$5.60

COLLAR (1T2)

90387-07598-00

$5.60

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

HOSE (L400)

90445-116K9-00

Unavailable

CLIP

90467-100A1-00

Unavailable

HOSE (L1500)

90445-090F6-00

Unavailable

DAMPER, PLATE 1

4KB-2414H-00-00

Unavailable

DAMPER, PLATE 2

4KB-2414J-00-00

Unavailable

DAMPER, LOCATING 1

3GD-24181-00-00

Unavailable

CLAMP(4KB)

90464-06214-00

Unavailable

DAMPER, LOCATING 1

4KB-24181-00-00

Unavailable

DAMPER, LOCATING 2

4KB-24182-00-00

Unavailable

DAMPER, LOCATING 3

4KB-24183-00-00

Unavailable
