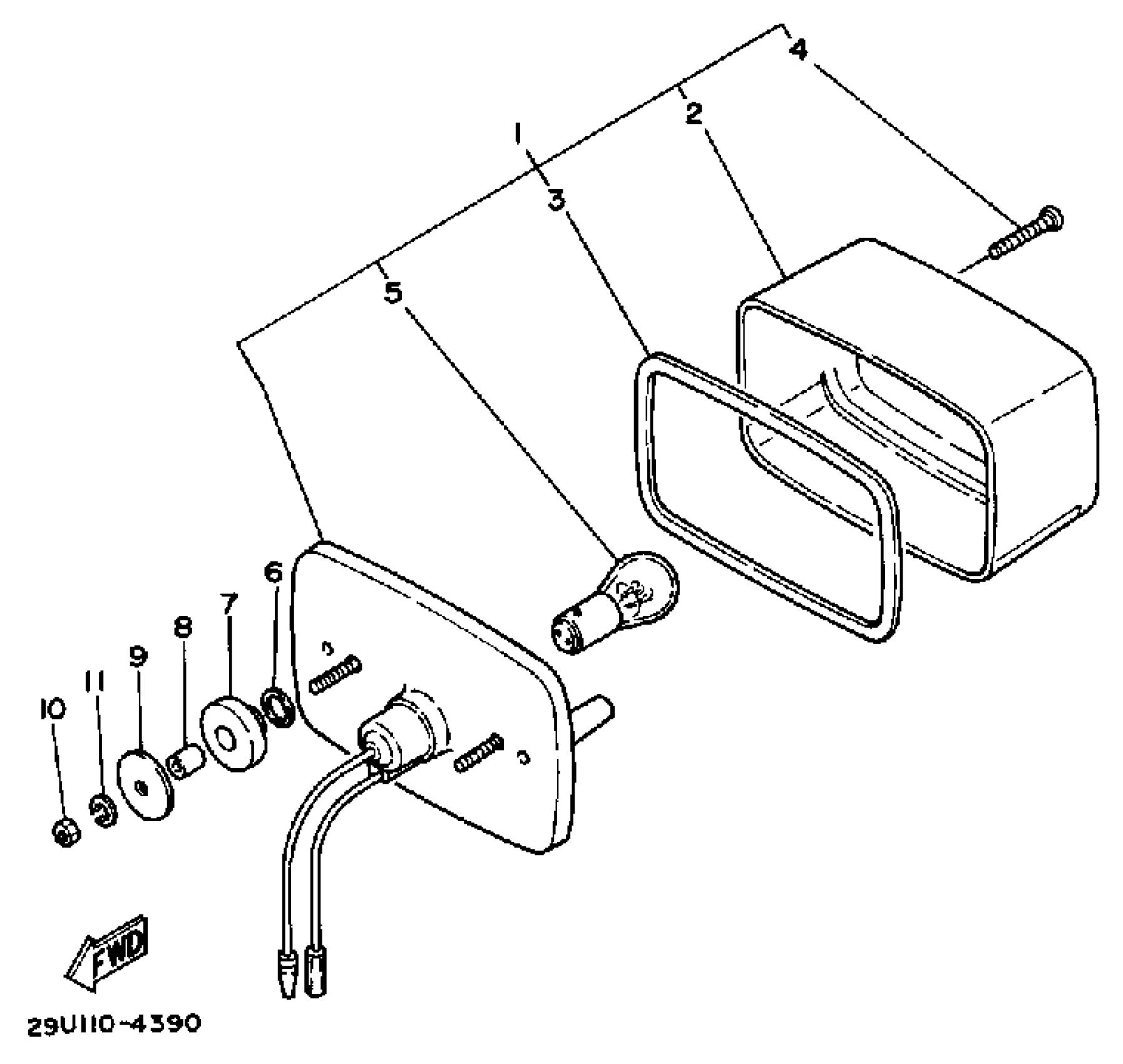

Yamaha YFM350FWW (BIG BEAR 4WD) 3HN1 1989 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

52H-84710-00-00

Unavailable

2

LENS, TAILLIGHT

21V-84721-00-00

$27.36

3

GASKET, TAIL LENS

1K8-84523-00-00

Unavailable

4

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

5

BULB (12V-7.5W)

3GD-84714-00-XX

Unavailable

6

WASHER, PLATE (462)

90202-14077-00

$3.32

7

GROMMET (462)

90480-14088-00

$3.87

8

SPACER

90560-07007-00

$6.12

9

WASHER PLATE 248217570000

90201-06074-00

$5.86

10

NUT (J17)

95380-06800-00

$6.28

11

WASHER, SPRING

92995-06100-00

$2.95
