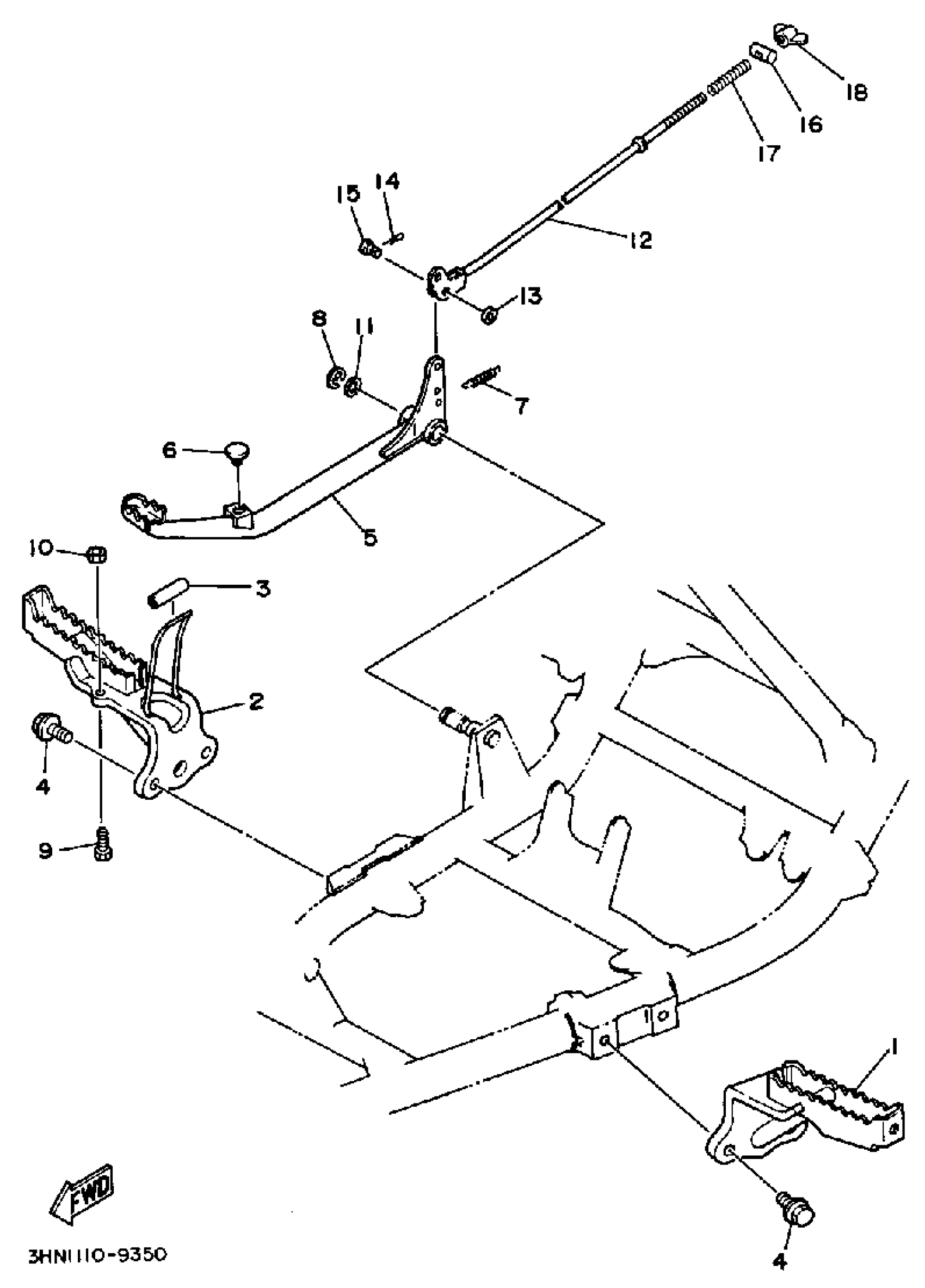

Yamaha YFM350FWW (BIG BEAR 4WD) 3HN1 1989 STAND-FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

2HR-27411-00-00

Unavailable

2

FOOTREST 2

2HR-27421-00-00

Unavailable

3

STOPPER

2HR-2743E-00-00

Unavailable

4

BOLT, FLANGE

95817-10020-00

$4.89

5

PEDAL, BRAKE

2HR-27211-00-00

Unavailable

6

STOPPER, MAIN STAND

128-27114-00-00

$6.17

7

SPRING, TENSION (29U)

90506-16318-00

$7.88

8

CIRCLIP (122)

93430-12008-00

$4.89

9

BOLT

90101-06595-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

$4.11

11

WASHER, PLATE (3X3)

90201-15797-00

$5.86

12

ROD, BRAKE

3HN-27231-00-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

14

PIN, COTTER

91490-20025-00

$1.23

15

PIN, CLEVIS (3X3)

90240-06076-00

$5.75

16

PIN 1562723700

90249-12008-00

Unavailable

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

NUT, AJUSTING

20E-26343-00-00

Unavailable
