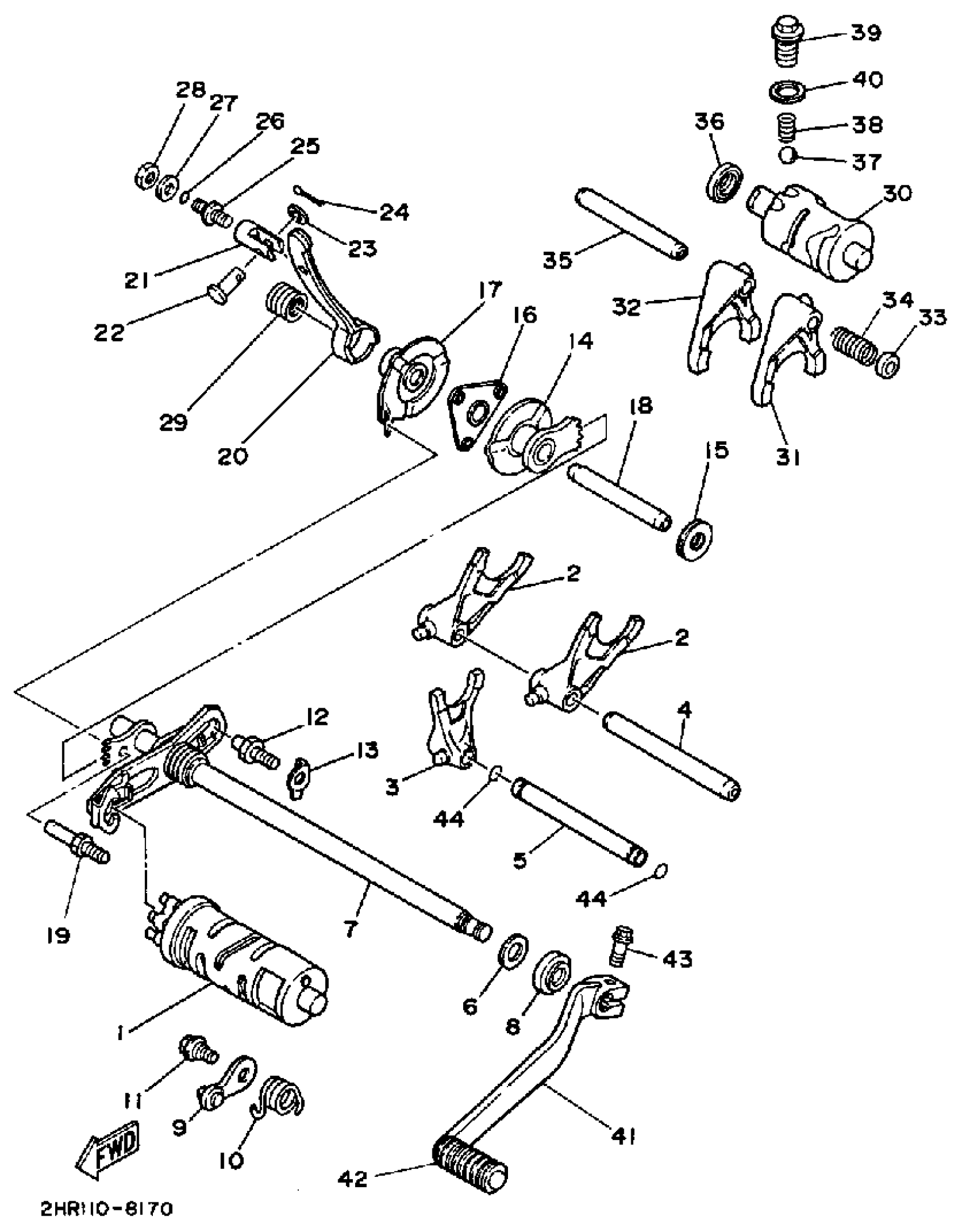

Yamaha YFM350FWW (BIG BEAR 4WD) 3HN1 1989 SHIFT CAM-FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

4GB-18540-00-00

Unavailable

2

FORK, SHIFT 1

1YW-18511-00-00

$74.99

3

FORK, SHIFT 2

4GB-18512-00-00

Unavailable

4

BAR, SHIFT FORK GUIDE 2

4GB-18535-00-00

Unavailable

5

BAR, SHIFT FORK GUIDE 1

4GB-18531-00-00

$18.49

6

WASHER, PLATE(52G)

90201-144J2-00

$8.49

7

SHIFT SHAFT ASSY

1YW-18101-02-00

Unavailable

8

OIL SEAL (3Y1)

93102-14209-00

$11.49

9

STOPPER LEVER ASSY

1UY-18140-00-00

Unavailable

10

SPRING, TORSION(1UY)

90508-25712-00

$7.49

11

BOLT

90109-06190-00

$4.72

12

STOPPER, SCREW

5VK-18127-00-00

Unavailable

13

WASHER, LOCK(1UY)

90215-08260-00

$7.49

14

GUIDE SHIFT COMP. 2

1YW-18106-00-00

Unavailable

15

BEARING

93342-21212-00

Unavailable

16

HOLDER, PAWL

1YW-18181-00-00

Unavailable

17

GUIDE SHIFT COMP.

1YW-18104-00-00

Unavailable

18

SHAFT, SHIFTER

1YW-18318-00-00

Unavailable

19

STOPPER, SCREW

1YW-18127-00-00

Unavailable

20

ARM, SHIFT 3

2VA-1817A-00-00

Unavailable

21

PIN, LEVER

21V-18126-00-00

Unavailable

22

PIN, JOINT

21V-18118-00-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

PIN, COTTER

91490-16020-00

Unavailable

25

STOPPER, SCREW

21V-18127-00-00

Unavailable

26

O-RING (21V)

93210-07590-00

Unavailable

27

WASHER (1T1)

90201-08649-00

Unavailable

28

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

29

SPRING, COMPRESSION(1YW)

90501-162E4-00

Unavailable

30

CAM, SHIFT 2

2HR-18546-06-00

Unavailable

31

FORK, SHIFT 1

2HR-18311-00-00

Unavailable

32

FORK, SHIFT 2

1YW-18312-00-00

Unavailable

33

CAP, SPRING

2HR-18323-00-00

Unavailable

34

SPRING (2HR)

90501-147E8-00

Unavailable

35

BAR, SHIFT FORK GUIDE 2

5Y1-18535-00-00

Unavailable

36

OIL SEAL (3X3)

93102-15212-00

Unavailable

37

BALL

93503-08007-00

Unavailable

38

SPRING, COMPRESSION (465)

90501-10353-00

Unavailable

39

BOLT, WASHER BASED(59V)

90105-14367-00

Unavailable

40

GASKET(59V)

90430-14194-00

Unavailable

41

SHIFT PEDAL ASSY

2HR-18110-01-00

Unavailable

42

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

43

BOLT, HEXAGON

97017-06020-00

Unavailable

44

O-RING (21V)

93210-07590-00

Unavailable
