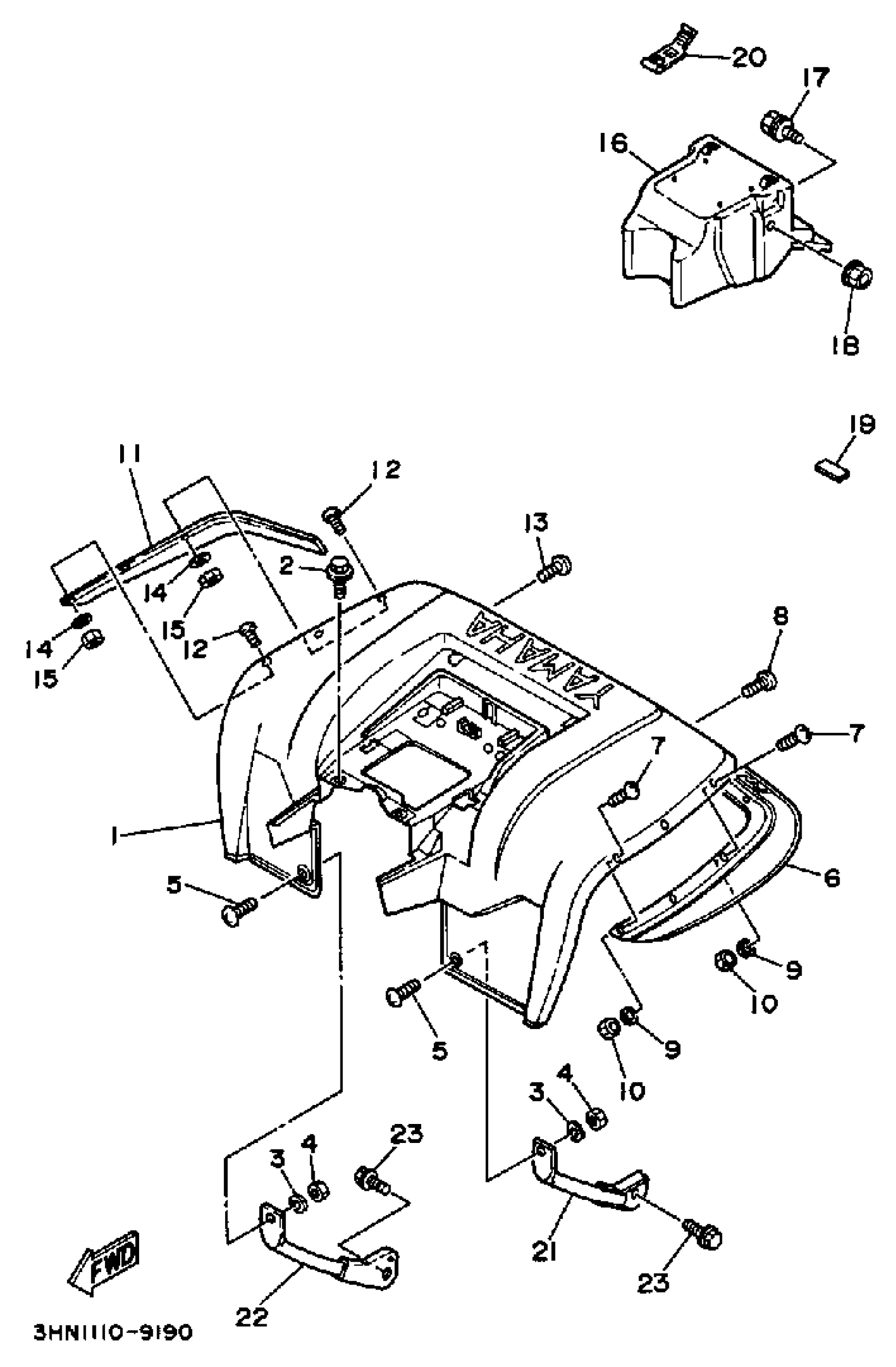

Yamaha YFM350FWW (BIG BEAR 4WD) 3HN1 1989 REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR

4UH-21611-50-00

Unavailable

1

FENDER, REAR

4UH-21611-60-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

WASHER, PLATE 8067717800

90201-05029-00

$8.49

4

NUT, NYLON

95707-05300-00

$4.24

5

SCREW, BINDING(3XV)

90154-05059-00

$9.49

6

FLAP

2HR-21621-00-00

Unavailable

7

SCREW, BINDING(3XV)

90154-05059-00

$9.49

8

SCREW, BINDING (8G6)

90154-05002-00

$10.49

9

WASHER, PLATE 8067717800

90201-05029-00

$8.49

10

NUT, NYLON

95707-05300-00

$4.24

11

FLAP

2HR-21691-00-00

Unavailable

12

SCREW, BINDING(3XV)

90154-05059-00

$9.49

13

SCREW, BINDING (8G6)

90154-05002-00

$10.49

14

WASHER, PLATE 8067717800

90201-05029-00

$8.49

15

NUT, NYLON

95707-05300-00

$4.24

16

BOX COMP.

1YW-2160A-20-00

Unavailable

17

BOLT, WITH WASHER

90119-06226-00

Unavailable

18

NUT, W/ WASHER

95707-06600-00

Unavailable

19

DAMPER

1YW-21638-00-00

Unavailable

20

BAND

59V-21646-00-00

Unavailable

21

STAY, FENDER 1

2HR-21613-00-00

Unavailable

22

STAY, FENDER 2

2HR-21614-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable
