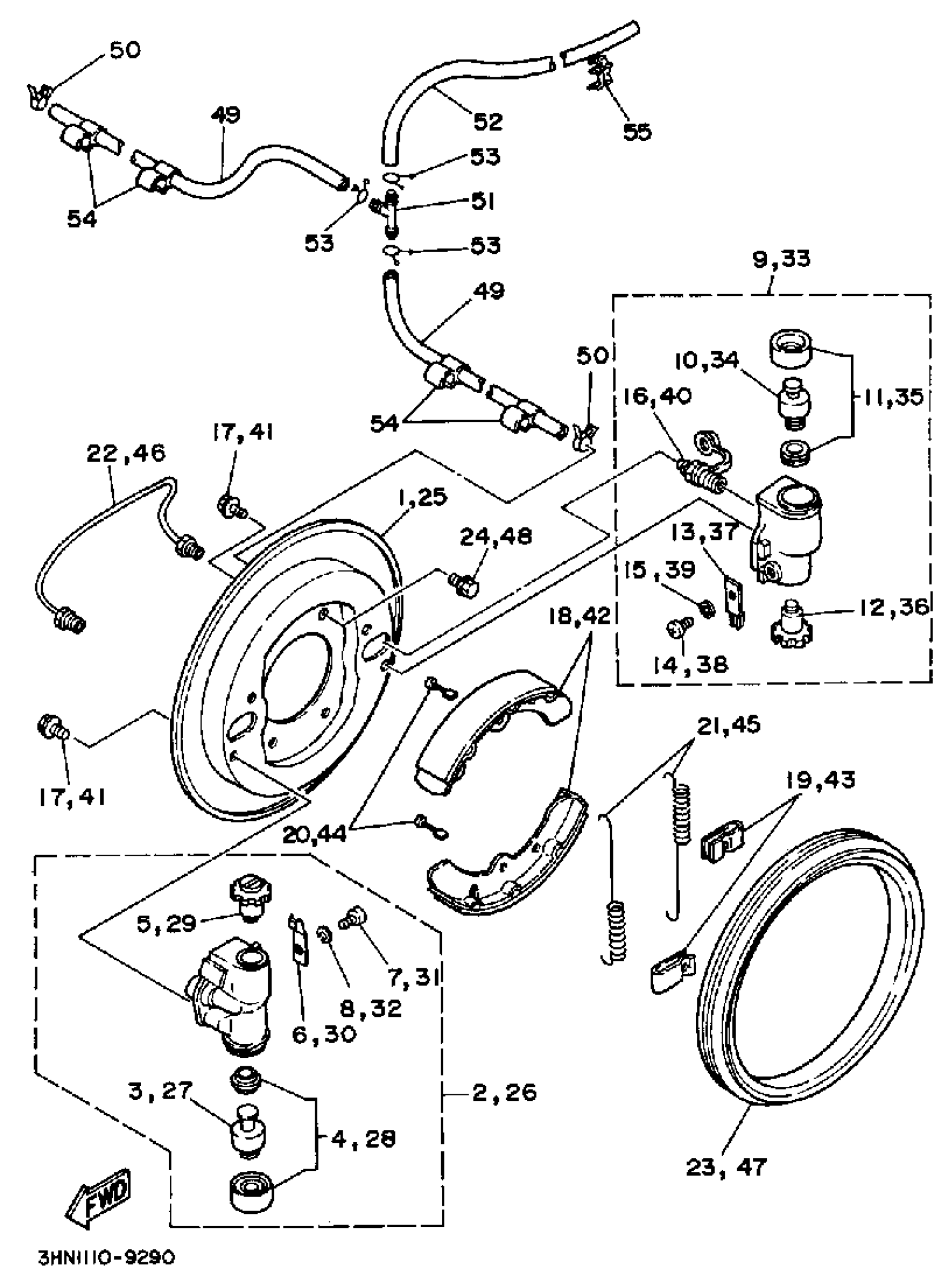

Yamaha YFM350FWW (BIG BEAR 4WD) 3HN1 1989 FRONT BRAKE Diagram
#
1
BACKING PLATE SUB ASSEMBLY (L/H)
3HN-27208-10-00
Unavailable
6
. LOCK SPRING
2HR-25952-00-00
Unavailable
7
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
13
. LOCK SPRING
2HR-25952-00-00
Unavailable
14
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
16
BLEED SCREW KIT
36Y-W0048-00-00
Unavailable
17
BOLT, FLANGE
95817-06012-00
Unavailable
18
BRAKE SHOE SET
3HN-W2535-10-00
Unavailable
19
SPRING, SHOE CLAMP
J10-27281-00-00
Unavailable
20
PIN, SHOE HOLD DOWN
3HN-27282-00-00
Unavailable
21
SPRING, RETURN
2HR-25133-00-00
Unavailable
22
PIPE, BRAKE 3
3HN-25883-00-00
Unavailable
23
SEAL, PLATE DUST
3GH-25129-10-00
Unavailable
24
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
25
BACKING PLATE SUB ASSEMBLY (R/H)
3HN-27208-00-00
Unavailable
26
WHEEL CYLINDER 1 (R/H)
3HN-25980-00-00
Unavailable
29
NUT BOLT COMP.
2HR-25748-00-00
Unavailable
30
. LOCK SPRING
2HR-25952-00-00
Unavailable
31
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
33
WHEEL CYLINDER 2 (R/H)
3HN-25990-00-00
Unavailable
36
NUT BOLT COMP.
2HR-25748-00-00
Unavailable
37
. LOCK SPRING
2HR-25952-00-00
Unavailable
38
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
40
BLEED SCREW KIT
36Y-W0048-00-00
Unavailable
41
BOLT, FLANGE
95817-06012-00
Unavailable
42
BRAKE SHOE SET
3HN-W2535-10-00
Unavailable
43
SPRING, SHOE CLAMP
J10-27281-00-00
Unavailable
44
PIN, SHOE HOLD DOWN
3HN-27282-00-00
Unavailable
45
SPRING, RETURN
2HR-25133-00-00
Unavailable
46
PIPE, BRAKE 3
3HN-25883-00-00
Unavailable
47
SEAL, PLATE DUST
3GH-25129-10-00
Unavailable
48
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
49
HOSE (L1050)
90445-072G8-00
Unavailable
50
CLIP(42X)
90467-07093-00
Unavailable
51
WAY 3(33M)
90413-05014-00
Unavailable
52
HOSE (L1050)
90445-072G8-00
Unavailable
53
CLIP (16G)
90467-08021-00
Unavailable
54
CLIP
90467-06043-00
Unavailable
55
CLIP(33M)
90468-15139-00
Unavailable
