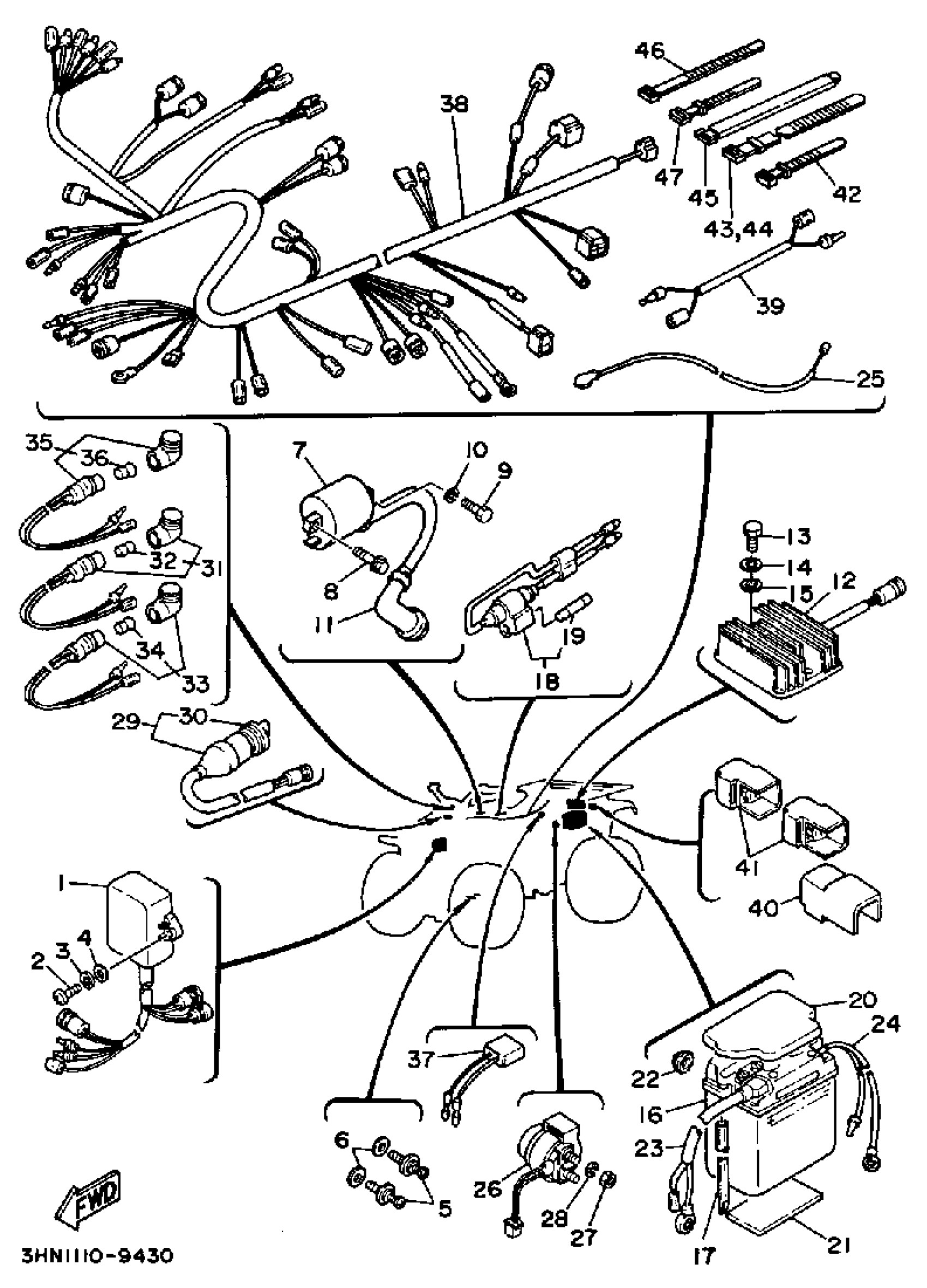

Yamaha YFM350FWW (BIG BEAR 4WD) 3HN1 1989 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

3HN-85540-00-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

6

GASKET (5R6)

90430-10171-00

$3.18

7

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

8

BOLT (21V)

90109-06723-00

$8.49

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, SPRING

92995-06100-00

Unavailable

11

PLUG CAP ASSY

4VW-82370-00-00

$69.99

12

RECTIFIER & REGULATOR ASSEMBLY

59V-81960-A0-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

17

HOSE (L1500)

90445-084J0-00

Unavailable

18

FUSE HOLDER ASSY

2NL-82150-00-00

Unavailable

19

FUSE (30A)

705-82151-01-00

Unavailable

20

COVER, BATTERY

24W-82129-00-00

Unavailable

21

SEAT, BATTERY

51Y-82122-00-00

Unavailable

22

PAD, BATTERY

371-82121-00-00

Unavailable

23

WIRE, PLUS LEAD

3LD-82115-00-00

Unavailable

24

WIRE, MINUS LEAD

2HR-82116-00-00

Unavailable

25

WIRE, LEAD

2JX-82541-00-00

Unavailable

26

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

27

NUT(650)

95380-06700-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

MAIN SWITCH ASSY

2FJ-82510-09-00

Unavailable

30

CAP, KEY

24W-82579-00-00

Unavailable

31

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

32

BULB (12V-3.4W)

123-83516-21-00

Unavailable

33

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

34

BULB (12V-3.4W)

123-83516-21-00

Unavailable

35

PILOT LIGHT ASSEMBLY

3FA-83530-10-00

Unavailable

36

BULB (12V-3.4W)

123-83516-21-00

Unavailable

37

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

38

WIRE HARNESS ASSEMBLY

3HN-82590-00-00

Unavailable

39

WIRE, LEAD

59V-82541-00-00

Unavailable

40

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

41

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

42

BAND, SWITCH CORD

437-83936-01-00

Unavailable

43

BAND, SWITCH CORD

437-83936-11-00

Unavailable

44

BAND, SWITCH CORD

437-83936-11-00

Unavailable

45

BAND

341-26397-01-00

Unavailable

46

CLAMP

1UY-82591-00-00

Unavailable

47

BAND, SWITCH CORD

437-83936-01-00

Unavailable

48

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

49

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
