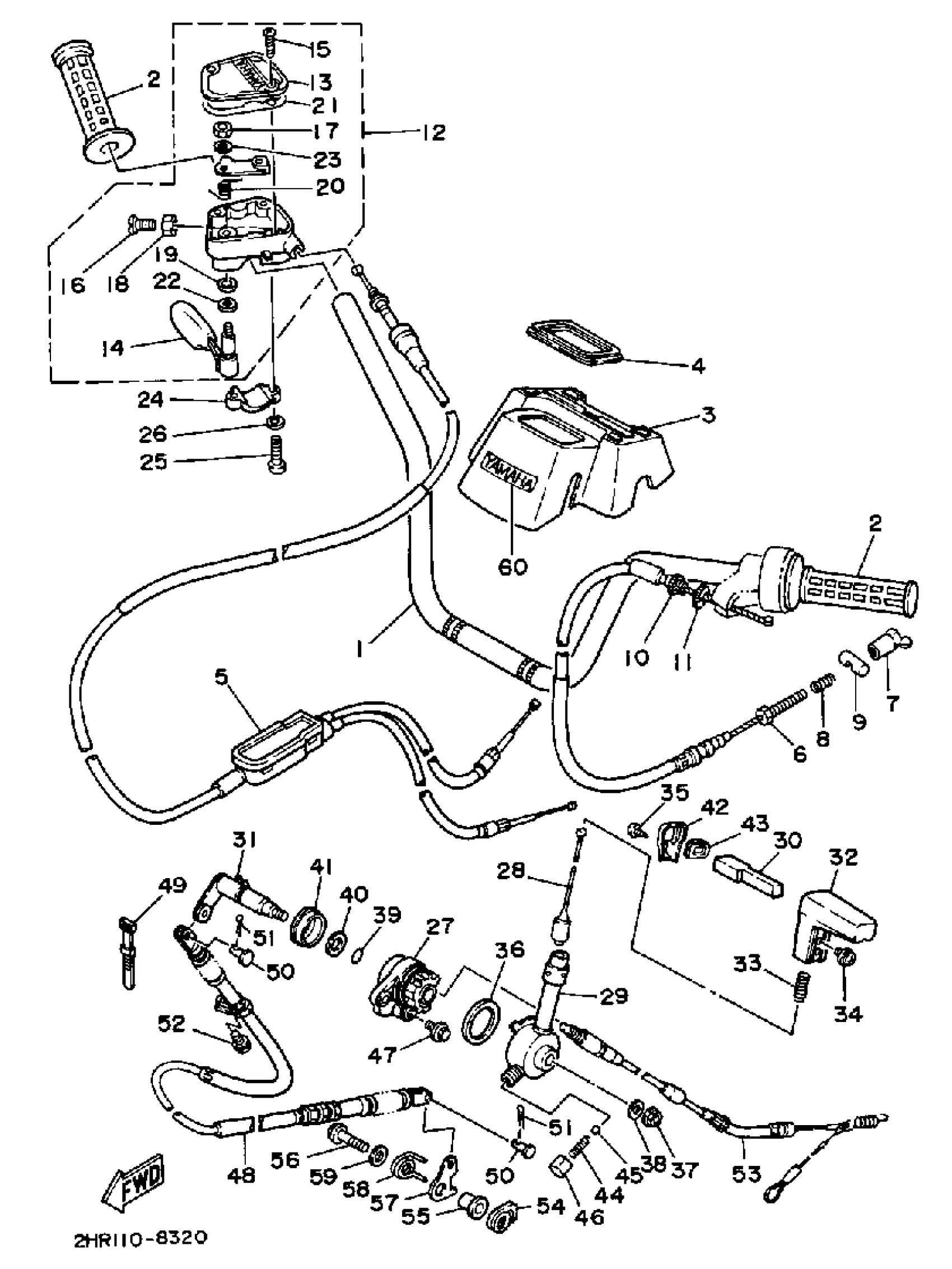

Yamaha YFM350FWU (BIG BEAR 4WD) 2HR 1988 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLEBAR

2HR-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

2HR-26124-00-00

Unavailable

4

DAMPER

2HR-83513-00-00

Unavailable

5

THROTTLE CABLE ASSY

3HN-26301-01-00

Unavailable

6

CABLE, BRAKE

3HN-26341-00-00

$87.99

7

NUT, AJUSTING

20E-26343-00-00

$27.99

8

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

9

PIN 1562723700

90249-12008-00

$8.49

10

BOLT

90123-08002-00

$10.49

11

NUT

90179-08030-00

$5.49

12

THROTTLE LEVER ASSY

1NV-26250-01-00

Unavailable

13

. CAP, GEAR

1NV-2628F-00-00

Unavailable

14

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

15

SCREW, PAN

98517-05012-00

$4.73

16

SCREW, PAN HEAD

98517-05020-00

Unavailable

17

NUT, U

95617-05100-00

Unavailable

18

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

19

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

20

SPRING

1NV-26304-00-00

Unavailable

21

. GASKET

1NV-2628G-00-00

Unavailable

22

WASHER

1NV-26129-00-00

Unavailable

23

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

24

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

25

SCREW, PAN HEAD

98517-05020-00

Unavailable

26

WASHER(3SX)

92907-05100-00

Unavailable

27

BODY, REVERSE LEVER

2NL-26151-00-00

Unavailable

28

STOPPER, LEVER

1YW-26154-00-00

Unavailable

29

LEVER, REVERSE

2HR-26152-01-00

Unavailable

30

LEVER, LOCK

1YW-26157-00-00

Unavailable

31

SHAFT, REVERSE LEVER

2HR-26155-00-00

Unavailable

32

GRIP, LEVER

2HR-26153-00-00

Unavailable

33

SPRING, COMPRESSION

90501-127H4-00

Unavailable

34

SCREW, WITH WASHER

90159-05156-00

Unavailable

35

SCREW, PAN TAP.2 SLIT

97707-40612-00

Unavailable

36

OIL SEAL,SR-TYPE

93112-48009-00

Unavailable

37

NUT

90179-08428-00

Unavailable

38

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

39

O-RING(3LD)

93210-12790-00

Unavailable

40

WASHER, PLATE (25H)

90201-162H4-00

Unavailable

41

CAP, RUBBER

2NL-26329-00-00

Unavailable

42

CAP, GRIP

1YW-2628J-00-00

Unavailable

43

SEAL

1YW-2639G-00-00

Unavailable

44

SPRING, COMPRESSION

90501-157E9-00

Unavailable

45

BALL (5X4)

93521-64032-00

Unavailable

46

NUT 1

2NL-26294-00-00

Unavailable

47

BOLT, FLANGE

95817-06020-00

Unavailable

48

CABLE, CONTROL 1

3HN-2637E-01-00

Unavailable

49

BAND

341-26397-01-00

Unavailable

50

PIN

91701-06016-00

Unavailable

51

PIN, COTTER

91490-20025-00

Unavailable

52

BOLT, FLANGE

95817-10020-00

Unavailable

53

WIRE, CONTROL 2

2HR-2637F-00-00

Unavailable

54

LEVER

4SH-18198-00-00

Unavailable

55

COLLAR

90387-061F8-00

Unavailable

56

BOLT, FLANGE

95817-06035-00

Unavailable

57

LEVER

1YW-18191-00-00

Unavailable

58

SPRING, TORSION(1YW)

90508-35764-00

Unavailable

59

WASHER, PLATE

90201-06M02-00

Unavailable

60

EMBLEM, YAMAHA

99241-00080-00

Unavailable
