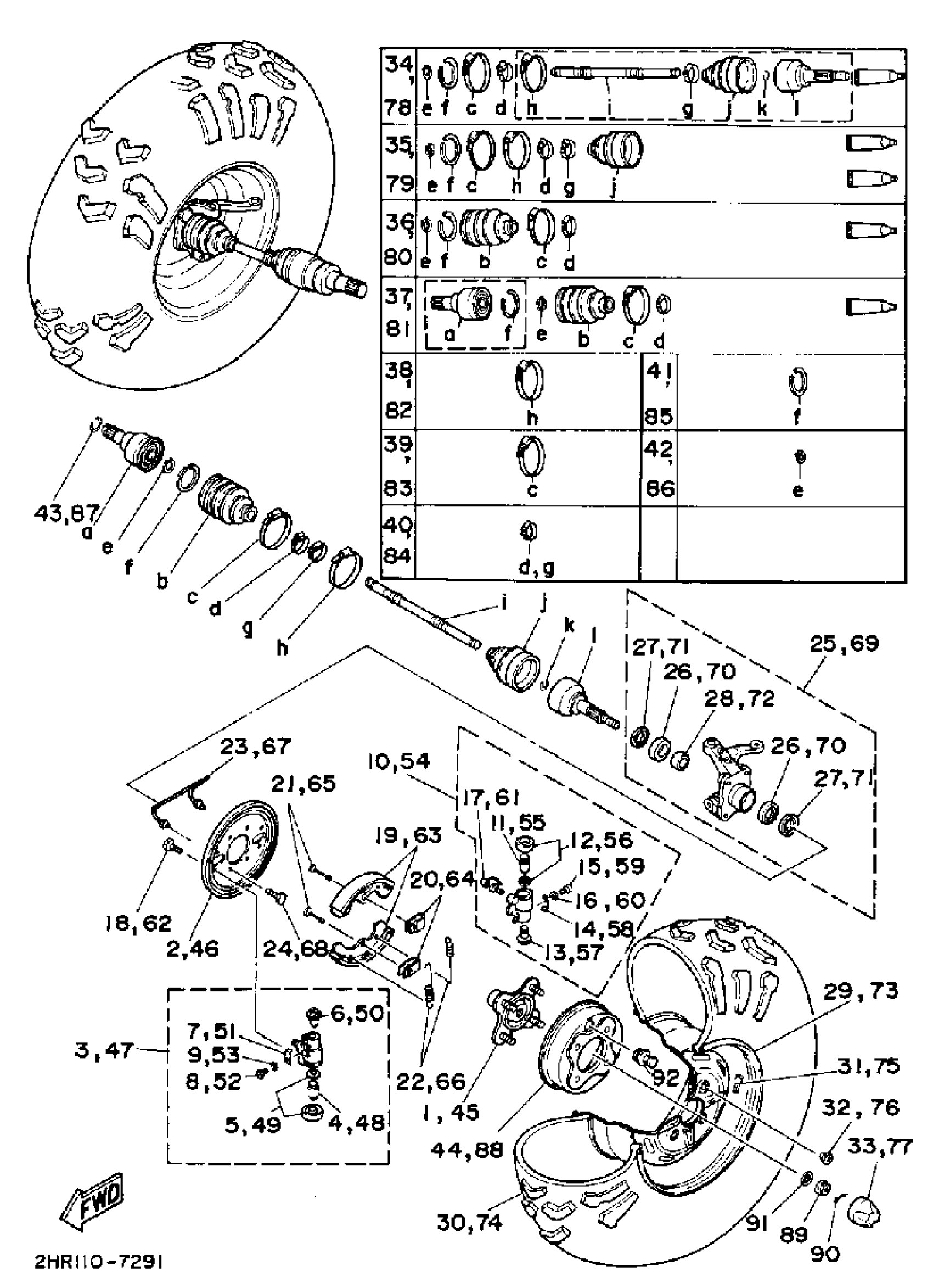

Yamaha YFM350FWU (BIG BEAR 4WD) 2HR 1988 FRONT WHEEL Diagram
#
1
HUB ASSEMBLY, FRONT
2HR-25110-00-00
Unavailable
2
BACKING PLATE SUB-ASSEMBLY
2HR-27208-10-00
Unavailable
3
WHEEL CYLINDER 2 R (L.H)
2HR-25950-00-00
Unavailable
7
. LOCK SPRING
2HR-25952-00-00
Unavailable
8
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
10
WHEEL CYLINDER 1 R (L.H)
2HR-25960-00-00
Unavailable
14
. LOCK SPRING
2HR-25952-00-00
Unavailable
15
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
BLEED SCREW KIT
36Y-W0048-00-00
Unavailable
18
BOLT, FLANGE
95817-06012-00
Unavailable
19
BRAKE SHOE SET
2HR-W2535-10-00
Unavailable
20
SPRING, SHOE CLAMP
J10-27281-00-00
Unavailable
21
PIN, SHOE HOLD DOWN
J10-27282-00-00
Unavailable
22
SPRING, RETURN
2HR-25133-00-00
Unavailable
23
PIPE, BRAKE 3
2HR-25883-00-00
Unavailable
24
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
25
STEERING KNUCKLE ASSEMBLY (L)
2HR-23501-00-00
Unavailable
26
BEARING(2HR)
93306-00612-00
Unavailable
27
OIL SEAL(2HR)
93102-38383-00
Unavailable
28
SPACER(2HR)
90560-30325-00
Unavailable
29
WHEEL, FRONT
2HR-25180-00-UJ
Unavailable
30
TIRE (AT25X8-12 KT402)
94108-126Y6-00
Unavailable
31
VALVE, RIM(2GH)
93900-00030-00
Unavailable
32
NUT(2HR)
90179-10540-00
Unavailable
33
CAP, WHEEL
52H-2512A-00-00
Unavailable
34
BALL JOINT SET
2HR-2510F-01-00
Unavailable
35
BOOT SET (BALL JOINT)
3HN-2510G-00-00
Unavailable
36
BOOT SET (DOUBLE OFFSET JOINT)
3HN-2510H-00-00
Unavailable
37
DOUBLE 0FF SET JOINT
3HN-2510J-00-00
Unavailable
38
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
Unavailable
39
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
40
BOOT BAND (SMALL)
3HN-2512G-01-00
Unavailable
41
CIRCLIP
2HR-2512H-00-00
Unavailable
42
SNAP RING
2HR-2512J-00-00
Unavailable
43
CIRCLIP(2HR)
93450-22119-00
Unavailable
44
DRUM, BRAKE
2HR-2511E-00-00
Unavailable
45
HUB ASSEMBLY, FRONT
2HR-25110-00-00
Unavailable
46
BACKING.PLATE SUB-ASSEMBLY
2HR-27208-00-00
Unavailable
47
WHEEL CYLINDER 1, R (R.H)
2HR-25980-00-00
Unavailable
50
NUT BOLT COMP.
2HR-25748-00-00
Unavailable
51
. LOCK SPRING
2HR-25952-00-00
Unavailable
52
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
54
WHEEL CYLINDER 2, R (R.H)
2HR-25990-00-00
Unavailable
57
NUT BOLT COMP.
2HR-25748-00-00
Unavailable
58
. LOCK SPRING
2HR-25952-00-00
Unavailable
59
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
61
BLEED SCREW KIT
36Y-W0048-00-00
Unavailable
62
BOLT, FLANGE
95817-06012-00
Unavailable
63
BRAKE SHOE SET
2HR-W2535-10-00
Unavailable
64
SPRING, SHOE CLAMP
J10-27281-00-00
Unavailable
65
PIN, SHOE HOLD DOWN
J10-27282-00-00
Unavailable
66
SPRING, RETURN
2HR-25133-00-00
Unavailable
67
PIPE, BRAKE 3
2HR-25883-00-00
Unavailable
68
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
69
STEERING KNUCKLE ASSEMBLY (R)
2HR-23502-00-00
Unavailable
70
BEARING(2HR)
93306-00612-00
Unavailable
71
OIL SEAL(2HR)
93102-38383-00
Unavailable
72
SPACER(2HR)
90560-30325-00
Unavailable
73
WHEEL, FRONT
2HR-25180-00-UJ
Unavailable
74
TIRE (AT25X8-12 KT402)
94108-126Y6-00
Unavailable
75
VALVE, RIM(2GH)
93900-00030-00
Unavailable
76
NUT(2HR)
90179-10540-00
Unavailable
77
CAP, WHEEL
52H-2512A-00-00
Unavailable
78
BALL JOINT SET
2HR-2510F-01-00
Unavailable
79
BOOT SET (BALL JOINT)
3HN-2510G-00-00
Unavailable
80
BOOT SET (DOUBLE OFFSET JOINT)
3HN-2510H-00-00
Unavailable
81
DOUBLE 0FF SET JOINT
3HN-2510J-00-00
Unavailable
82
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
Unavailable
83
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
84
BOOT BAND (SMALL)
3HN-2512G-01-00
Unavailable
85
CIRCLIP
2HR-2512H-00-00
Unavailable
86
SNAP RING
2HR-2512J-00-00
Unavailable
87
CIRCLIP(2HR)
93450-22119-00
Unavailable
88
DRUM, BRAKE
2HR-2511E-00-00
Unavailable
89
NUT, CASTLE (2H6)
90171-16024-00
Unavailable
90
PIN, COTTER
91490-30030-00
Unavailable
91
WASHER, PLATE(10L)
90201-165H4-00
Unavailable
92
CAP
2HR-25188-00-00
Unavailable
