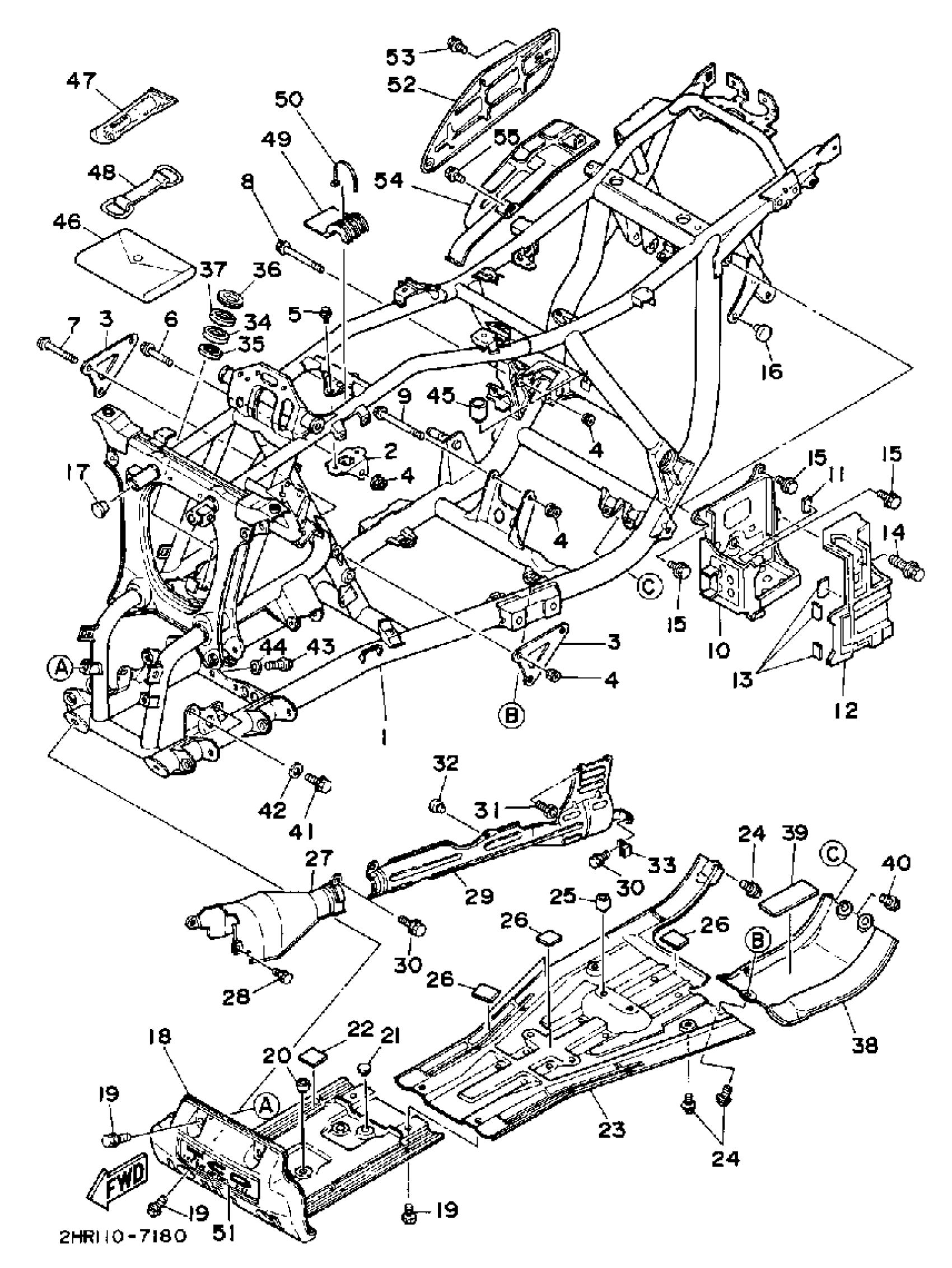

Yamaha YFM350FWU (BIG BEAR 4WD) 2HR 1988 FRAME Diagram

#

Description
Price

1

FRAME

3HN-21110-20-33

Unavailable

2

STAY,ENGINE 2

2HR-21315-02-00

Unavailable

3

STAY,ENGINE 3

3HN-21316-00-00

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

BOLT, FLANGE

95817-08012-00

$5.49

6

BOLT, FLANGE

95817-08055-00

$4.21

7

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

8

BOLT, FLANGE

95817-08090-00

$4.77

9

BOLT, FLANGE

95817-08100-00

$5.60

10

BOX

1YW-21170-01-00

Unavailable

11

COVER 2

3FC-2139R-00-00

Unavailable

12

BOX

24W-21245-00-00

Unavailable

13

COVER 2

3FC-2139R-00-00

Unavailable

14

BOLT, WITH WASHER

90119-06152-00

$7.49

15

BOLT, FLANGE

95817-06012-00

$1.43

16

STOPPER

30X-24768-00-00

Unavailable

17

PLUG (5R2)

90338-18122-00

Unavailable

18

GUARD, ENGINE 1

2HR-2147A-00-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

$5.49

20

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

21

STOPPER, MAIN STAND

128-27114-00-00

Unavailable

22

DAMPER, LOCATING 1

27V-24181-00-00

Unavailable

23

PROTECTOR, ENGINE

99999-02254-00

Unavailable

24

BOLT, FLANGE

95817-08012-00

$5.49

25

STOPPER, MAIN STAND

1J7-27114-00-00

Unavailable

26

DAMPER, LOCATING 1

27V-24181-00-00

Unavailable

27

COVER, SHAFT 1

3HN-2147J-10-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

$1.43

29

COVER, SHAFT 2

3HN-2147K-01-00

Unavailable

30

BOLT, FLANGE

95817-06012-00

$1.43

31

BOLT,SOCKET

91314-06050-00

Unavailable

32

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

33

CLAMP

90465-06176-00

Unavailable

34

BEARING

93306-20348-00

Unavailable

35

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

36

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

37

HOLDER, BEARING

2GU-23872-00-00

Unavailable

38

STAY, TRANSFER

2HR-2147H-00-00

Unavailable

39

DAMPER 2

38V-21486-00-00

Unavailable

40

BOLT, FLANGE

95817-08012-00

$5.49

41

BOLT(6TD)

97017-10025-00

Unavailable

42

WASHER, PLATE

92990-10600-00

Unavailable

43

BOLT(3HN)

97017-08045-00

Unavailable

44

.. WASHER, PLATE

92990-08600-00

Unavailable

45

STOPPER, MAIN STAND

1J7-27114-00-00

Unavailable

46

TOOL KIT

3GH-28100-00-00

Unavailable

47

GAUGE, AIR

1NV-2811A-01-00

Unavailable

48

BAND, TOOL

21V-21376-00-00

Unavailable

49

DAMPER, LOCATING 1

2HR-24181-00-00

Unavailable

50

BAND

1UA-82591-00-00

Unavailable

51

EMBLEM 1

2HR-2118E-00-00

Unavailable

52

COVER, REAR FENDER 2

2HR-2163E-00-00

Unavailable

53

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

54

COVER, REAR FENDER 3

2HR-2163F-01-00

Unavailable

55

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable
