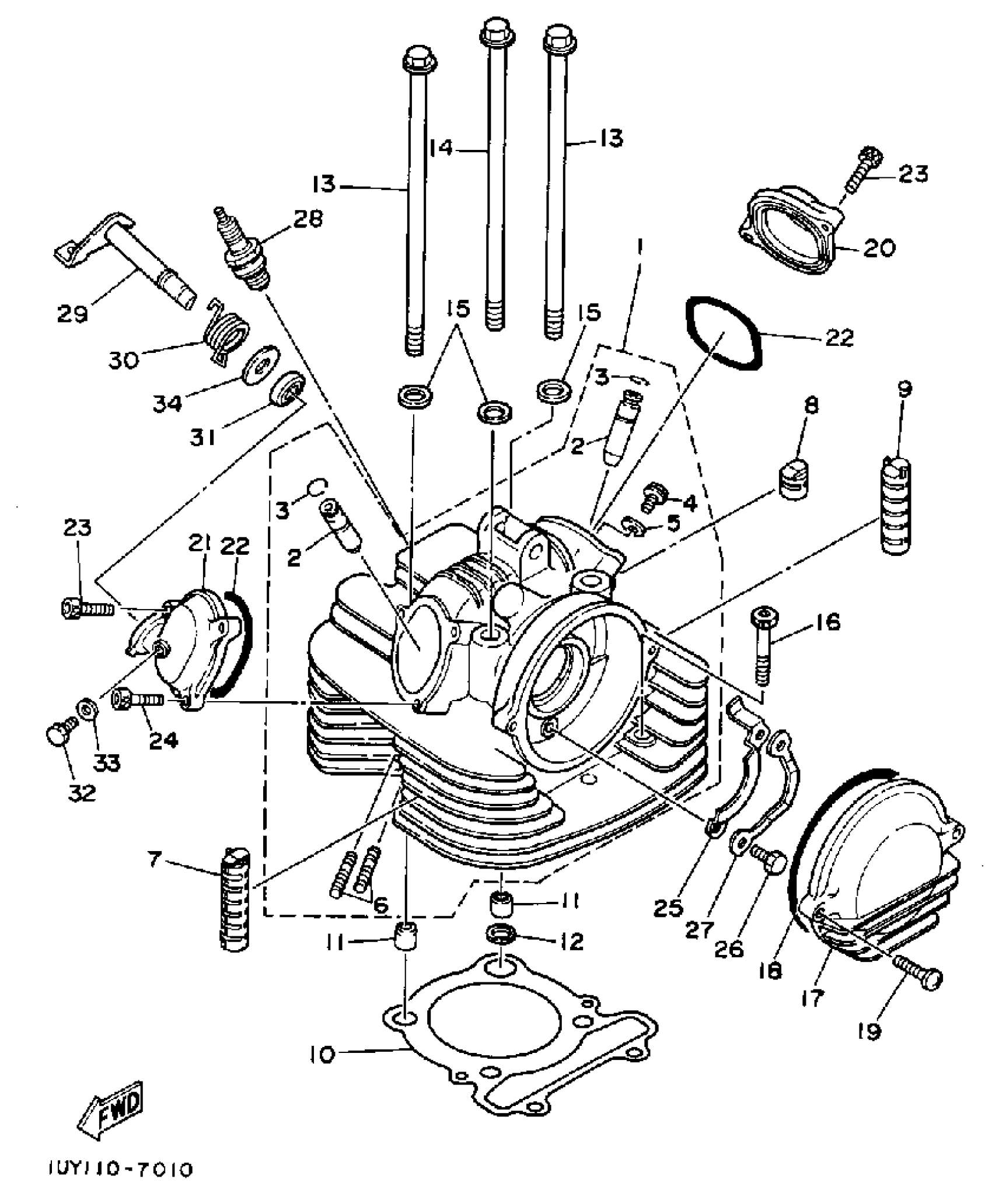

Yamaha YFM350FWU (BIG BEAR 4WD) 2HR 1988 CYLINDER-HEAD Diagram
#
Description
Price
1
CYLINDER HEAD ASSY
1YW-11101-01-00
Unavailable
4
BOLT UNION 137131650000
90401-06001-00
Unavailable
16
BOLT, SOCKET
91317-08050-00
Unavailable
17
COVER, CYLINDER HEAD SIDE 1
3Y1-11185-00-00
Unavailable
18
O-RING (15A)
93211-06635-00
Unavailable
19
BOLT,SOCKET
91317-06025-00
Unavailable
20
COVER, CYLINDER HEAD SIDE 2
3Y1-11186-10-00
Unavailable
21
COVER, CYLINDER HEAD SIDE 3
3Y1-11187-00-00
Unavailable
22
O-RING
93210-57634-00
Unavailable
23
BOLT,SOCKET
91317-06020-00
Unavailable
24
BOLT
90109-06556-00
Unavailable
25
PLATE
3Y1-1111F-00-00
Unavailable
26
BOLT (661)
97013-06012-00
Unavailable
27
WASHER, LOCK (3Y1)
90215-06162-00
Unavailable
28
D8EA NGK SPLUG 10PK
D8E-A0000-00-00
Unavailable
29
DECOMPRESSION WIRE ASSEMBLY
1UY-12280-00-00
Unavailable
30
SPRING, TORSION
90508-12610-00
Unavailable
31
SEAL, OIL (30X)
93102-12321-00
Unavailable
32
BOLT (583 TACHOMETER)
90109-06418-00
Unavailable
33
GASKET 256113960000
90430-06014-00
Unavailable
34
WASHER
90201-12588-00
Unavailable
