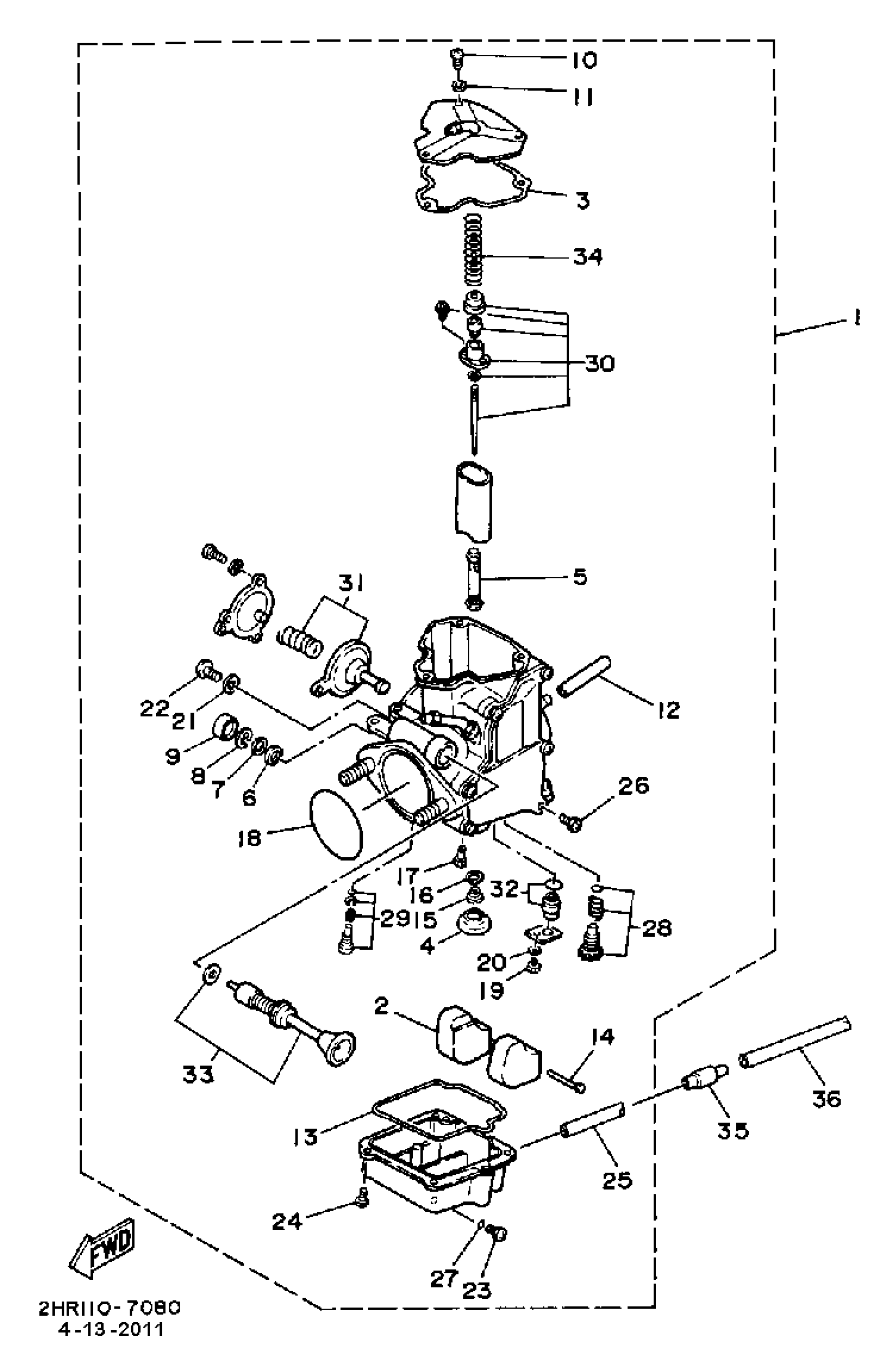

Yamaha YFM350FWU (BIG BEAR 4WD) 2HR 1988 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

2HR-14101-01-00

Unavailable

2

FLOAT

1UY-14185-00-00

$91.00

3

GASKET

1UY-14198-00-00

$23.47

4

WASHER, MAIN JET

5V7-14153-00-00

$17.09

5

NOZZLE, MAIN

1YW-14141-28-00

Unavailable

6

SEAL

2A2-14997-00-00

Unavailable

7

GASKET

22F-14126-00-00

Unavailable

8

CLIP

812-14137-00-00

$7.05

9

CAP

36X-14169-00-00

Unavailable

10

SCREW, PAN HEAD

98517-04016-00

$5.76

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

12

HOSE (L1500)

90445-084J0-00

$15.31

13

O-RING

1UY-14147-00-00

$21.26

14

PIN, FLOAT

537-14186-00-00

$6.29

15

JET,MAIN #122.5

620-1423A-75-00

$11.23

16

WASHER,MAIN JET

137-14153-00-00

Unavailable

17

JET, PILOT (# 45)

4G0-14142-45-00

Unavailable

18

O-RING

1YW-14147-00-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

WASHER, SPRING

92990-03100-00

Unavailable

21

. WASHER

59V-14962-00-00

$5.07

22

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

23

SCREW

2L1-14191-00-00

Unavailable

24

SCREW, PAN HEAD

98511-04012-00

Unavailable

25

HOSE (L1500)

90445-084J0-00

$15.31

26

SCREW, PAN HEAD

98517-04012-00

Unavailable

27

O-RING

214-14147-00-00

Unavailable

28

. THROTTLE SCREW SET

1UY-14103-00-00

Unavailable

29

PILOT SCREW SET

21V-14105-00-00

Unavailable

30

NEEDLE SET

2HR-1490J-01-00

Unavailable

31

DIAPHRAGM SET, 5

3LD-1490H-00-00

Unavailable

32

NEEDLE VALVE SET

1UY-14107-25-00

Unavailable

33

PLUNGER, STARTER

1UY-14993-00-00

Unavailable

34

. SPRING, THROTTLE VALVE

2HR-14131-00-00

Unavailable

35

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

36

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable
