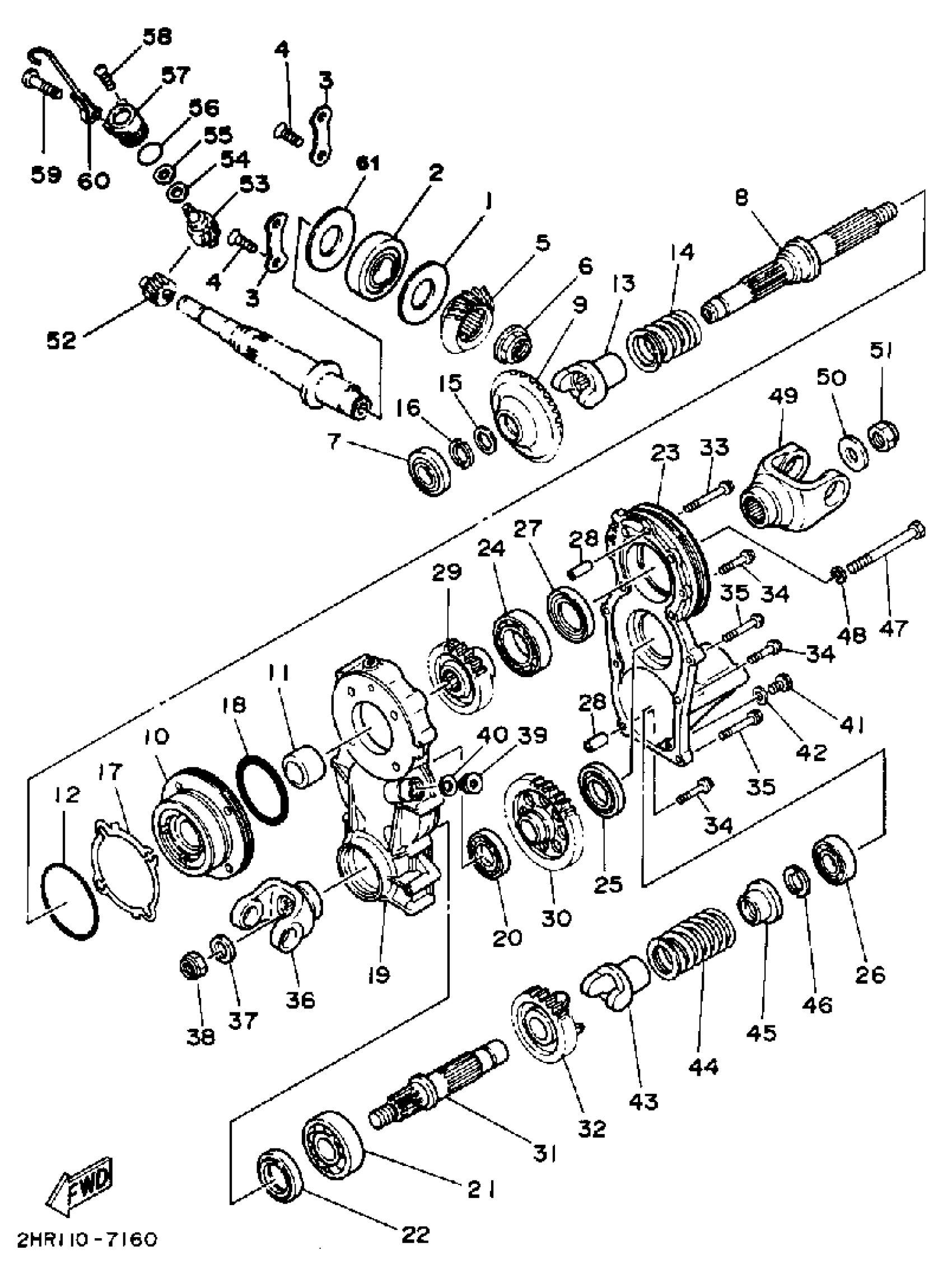

Yamaha YFM350FWT (BIG BEAR 4WD) 2HR 1987 MIDDLE DRIVE GEAR Diagram
#
5
PINION, DRIVE
1YW-17522-00-00
Unavailable
9
PINION, DRIVEN
1YW-17552-00-00
Unavailable
10
HOUSHING COMP.
2HR-W1752-01-00
Unavailable
11
COLLAR
90387-257R2-00
Unavailable
13
CAM,DRIVEN
1YW-17527-10-00
Unavailable
14
SPRING, COMPRESSION(1YW)
90501-602E2-00
Unavailable
15
WASHER, PLATE
90201-206K8-00
Unavailable
16
WASHER, THRUST
3H5-17529-00-00
Unavailable
17
SHIM, PINION (0.1T)
59V-17531-00-00
Unavailable
17
SHIM, PINION (0.15T)
59V-17531-10-00
Unavailable
17
SHIM, PINION (0.2T)
59V-17531-20-00
Unavailable
17
SHIM, PINION (0.3T)
59V-17531-30-00
Unavailable
17
SHIM, PINION (0.4T)
59V-17531-40-00
Unavailable
17
SHIM, PINION (0.5T)
59V-17531-50-00
Unavailable
17
SHIM, PINION (1.0T)
59V-17531-60-00
Unavailable
18
O-RING(2HR)
93210-59748-00
Unavailable
19
CASE, TRANSFER 1
2HR-17541-00-00
Unavailable
20
BEARING
93316-00604-00
Unavailable
21
BEARING(2HR)
93306-30551-00
Unavailable
22
OIL SEAL(2HR)
93105-35027-00
Unavailable
23
CASE, TRANSFER 2
2HR-17542-01-00
Unavailable
24
BRG,R-B 6007 62MM 150G KY
93306-00702-00
Unavailable
25
BEARING
93316-00604-00
Unavailable
26
BEARING (7K2)
93306-00423-00
Unavailable
27
OIL SEAL (4H7)
93101-35097-00
Unavailable
28
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
29
GEAR, TRANSFER DRIVE (26T)
2HR-17586-00-00
Unavailable
30
GEAR, IDLER (34T)
2HR-17587-00-00
Unavailable
31
SHAFT,MDL DRIVEN
22U-17553-01-00
Unavailable
32
GEAR, TRANSFER DRIVEN
2HR-17588-01-00
Unavailable
33
BOLT, SMALL FLANGE
95027-06050-00
Unavailable
34
BOLT, FLANGE(4KM)
95024-06040-00
Unavailable
35
BOLT, FLANGE(4AS)
95024-06030-00
Unavailable
36
YOKE,JOINT 2
4UM-17576-01-00
Unavailable
37
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
38
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
39
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
40
GASKET
214-11198-01-00
Unavailable
41
BOLT, WASHER BASED(4JT)
90105-08729-00
Unavailable
42
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
43
CAM, DRIVEN
22U-17527-01-00
Unavailable
44
SPRING, COMPRESSION(2HR)
90501-605E1-00
Unavailable
45
HOLDER
22U-17524-00-00
Unavailable
46
WASHER, THRUST
3H5-17529-00-00
Unavailable
47
BOLT
90101-08712-00
Unavailable
48
.. WASHER, PLATE
92990-08600-00
Unavailable
49
YOKE, JOINT
2HR-17556-01-00
Unavailable
50
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
51
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
52
GEAR, DRIVE
59V-17831-00-00
Unavailable
53
GEAR, DRIVEN
59V-17841-00-00
Unavailable
54
WASHER (692)
90201-12M34-00
Unavailable
55
OIL SEAL (30X)
93102-08307-00
Unavailable
56
O-RING(59V)
93210-24253-00
Unavailable
57
HOUSING, TACHOMETER GEAR
59V-17811-00-00
Unavailable
58
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
59
SCREW, PAN
98517-06030-00
Unavailable
60
GUIDE, WIRE
2HR-83599-00-00
Unavailable
61
WASHER
90209-50299-00
Unavailable
